High-Temperature, High-Pressure, Low-Flow Needle Valve for Refineries: Precision Control at 400°C and 40MPa

Exclusive to Refineries: How Does This Needle Valve Deliver Precise Control at 400°C and 40MPa?

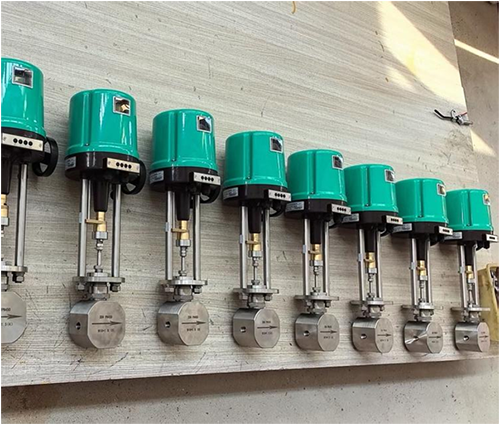

In critical refinery operations such as fluid catalytic cracking (FCC) and hydrofining, achieving "drop-level precision control" of high-temperature media remains a persistent challenge. Today, we spotlight a stainless steel needle valve engineered specifically for such extreme conditions: it withstands 400°C heat, handles a 40MPa pressure differential, and delivers ultra-low flow control (Cv = 0.63) through a DN25 port. With machining precision rivaling that of precision instruments, let's break down its performance.

Conventional 304 stainless steel deforms under prolonged 400°C exposure due to thermal creep, increasing the risk of leakage.

High-temperature media like heat transfer oil or heavy oil tend to carbonize and coke, any fluid stagnation in the valve quickly leads to blockage and process instability.

At a 40MPa differential, fluid velocity exceeds 50 m/s. Standard valve trims suffer from cavitation erosion and often fail within 3 months, driving up maintenance costs.

Traditional valves often exhibit stick-slip behavior or flow drift under low-flow conditions, failing to meet the ±2% flow control precision required by refining processes.

A DN25 valve with Cv 0.63 equates to a maximum flow of just 1.2 m³/h (for water), around 20 liters per minute. At this scale, conventional valves either overshoot with the slightest opening or become unresponsive and unstable.

Body & Trim Material: Made of S310S austenitic stainless steel (rated up to 1150°C). After solution treatment, it retains ≥200MPa yield strength at 400°C, 40% higher than 304 stainless steel, ensuring long-term strength and deformation resistance.

Surface Treatment: Valve plug and seat are coated with a 0.2mm tungsten carbide (WC) layer (hardness HV1200), delivering erosion resistance 5x higher than stainless steel. Even at 50 m/s flow velocity and 10,000 operation cycles, sealing surface wear remains below 0.05mm. Cavitation has no chance.

Double-Tapered Needle Design: A 15° front angle for smooth fluid entry and a 30° rear angle for accurate throttling. Precision-ground using 5-axis CNC, the plug-seat gap is controlled at 5–10 μm (1/10th the diameter of a human hair). This ensures smooth actuation and enables stable control of 0.024 m³/h at 2% valve opening, with <±1.5% error.

Optimized Flow Path: One-piece forged body and electrolytically polished internal wall (Ra ≤ 0.2 μm) eliminate dead zones and retention. For 400°C media, residence time is under 10 seconds, reducing coking risk by 80% and eliminating internal clogging issues.

Dual Pressure Testing:

Hydrostatic Test: 1.5x rated pressure (60MPa), held for 2 hours without pressure drop.

Thermal Pneumatic Test: Simulated 400°C and 40MPa conditions show valve stem thermal expansion <0.1mm, and leakage rate <1×10⁻⁶ Pa·m³/s, exceeding API 598 VI class zero-leakage standards.

Flow Calibration: Every valve undergoes 1000-cycle flow calibration to chart precise "opening vs. flow" curves. At 5% opening, flow is calibrated at 0.06 m³/h; at 10%, it's 0.12 m³/h, ensuring traceable flow for every drop.

In an FCC unit at a major refinery, this needle valve delivered:

Higher Process Accuracy: Flow control error dropped from ±5% to ±1.2%. Improved catalyst-to-feed ratios increased conversion rate by 2%, adding over ¥2 million ($280,000) in annual yield.

Reduced Maintenance Costs: Internal trim service life extended from 3 to 18 months, cutting annual maintenance hours by 70%. Monthly shutdowns for cleaning were replaced by annual inspections, slashing direct maintenance costs by 60%.

Zero Safety Incidents: Forged body + zero-leakage seal completely eliminated high-temp media leaks and associated fire risks (which account for 35% of incidents under similar conditions). Safety patrols now report zero alerts.

Unmatched Parameter Compatibility: DN25 size, Cv 0.63, and 40MPa pressure differential, all met simultaneously, a rare combination in the market.

Unrivaled Machining Accuracy: 5-axis CNC precision with micron-level gaps, backed by a ±1.5% flow accuracy report.

Tailored for Refinery Media: Flow path optimized for heat transfer oil, heavy oil, and coking-prone fluids, we understand your "coking pain points" better than conventional valve makers.

If you're dealing with high temperatures (300°C+), high pressure differentials (20MPa+), and ultra-low flow (Cv < 1) in applications like refinery material dosing or fine chemical metering, get in touch. We offer fully customized solutions, from parameter calculation and trim design to on-site commissioning, at a highly competitive price.

Every drop in refinery operations holds the key to both efficiency and safety. This valve delivers on both fronts through micron-level design and relentless manufacturing standards, solving one of the industry's hardest control challenges. Want more details like lab data or field case videos? Feel free to message or call us. Let's dive into your application together and craft a solution that works, because in the refining industry, "precision" isn't a slogan, it's a promise delivered through every parameter and every detail.
