In the industrial field, valves are indispensable devices for controlling the flow of fluids, and valve stem packing is one of the core components of valves. It shoulders the important task of sealing the gap between the valve stem and the valve stem hole, preventing medium leakage and ensuring the safe operation of the equipment. However, in actual use, valve stem packing may encounter various problems that affect its sealing performance. This article will explore in depth the common problems of valve stem packing, solutions, and how to choose suitable packing to ensure the reliability and service life of valves.

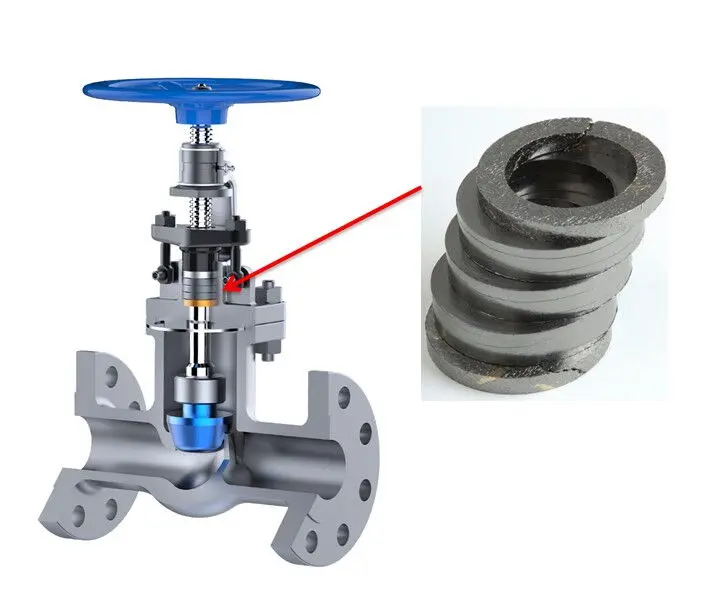

Valve stem packing is a key component in valves. It tightly fills the gap between the valve stem and the valve stem hole to prevent medium leakage. In many industrial applications, valves need to operate in high-pressure, high-temperature, or corrosive environments, and the performance of the sealing packing directly affects the safety and reliability of the valve. If the packing fails, it will not only cause medium leakage but may also lead to safety accidents and cause huge economic losses.
During long-term use, valve stem packing is affected by various factors, leading to different problems. The occurrence of these problems is often closely related to the material of the packing, installation process, working environment, and maintenance. Only by accurately identifying the root cause of the problem and taking targeted measures can the service life of the packing be effectively extended and the normal operation of the valve ensured.
Leakage is one of the most common problems of valve stem packing. The causes of leakage may include aging, wear, or improper installation of the packing. The solutions are as follows:
Replace new packing: If the packing has aged or is severely worn, it should be replaced in time. Select high-quality packing materials to ensure they match the medium and working environment.
Ensure correct installation: The installation of packing must be carried out strictly in accordance with technical requirements. The tightness of the packing should be moderate—neither too loose to cause leakage nor too tight to cause valve stem jamming. During installation, the packing should be filled ring by ring and pressed one by one to ensure uniform stress.
Regular inspection and maintenance: During use, check the condition of the packing regularly to detect and deal with potential problems in time. Regular inspections can include visual inspection and leakage detection. If there are signs of wear, aging, or damage on the surface of the packing, it should be replaced promptly.
Packing permeation refers to the medium seeping from the packing to the surface of the valve stem. This is usually caused by poor packing sealing or incompatibility between the packing and the medium. The solutions are as follows:
Select suitable packing materials: Choose suitable packing materials according to the nature of the medium and the working environment. For example, for high-temperature media, select high-temperature-resistant packing; for corrosive media, select corrosion-resistant packing.
Ensure appropriate compression force of the packing: The compression force of the packing should be moderate, neither too loose to cause permeation nor too tight to cause valve stem jamming. During installation, the packing should be filled and pressed ring by ring to ensure uniform stress.
Regular maintenance and replacement: Check the condition of the packing regularly and replace worn or aged packing promptly. Regular maintenance may include cleaning the packing surface and adjusting the compression force of the packing.
During use, the packing may experience problems due to excessively high or low medium temperature. Overheating may cause the packing to melt, while overcooling may make it brittle. The solutions are as follows:
Select high-temperature or low-temperature-resistant packing materials: Choose suitable packing materials according to the medium temperature range. For example, graphite packing can be used for high-temperature media, while PTFE packing can be used for low-temperature media.
Ensure compatibility between the packing and medium temperature: During installation, ensure that the temperature range of the packing matches that of the medium. If the medium temperature varies greatly, temperature compensation devices such as springs or hydraulic devices can be used to ensure good sealing performance under different temperatures.
The outer surface of the packing may accumulate fouling due to solid particles or dust contained in the medium, which reduces the sealing performance. The solutions are as follows:
Regularly clean the packing surface: Clean the packing surface regularly to remove accumulated solid particles or dust. Use proper tools and methods during cleaning to avoid damaging the packing.
Use appropriate filters: Whenever possible, use suitable filters to remove solid particles or dust from the medium to reduce fouling on the packing surface.
Packing may age or harden over time, reducing sealing performance. The solutions are as follows:
Regularly inspect the condition of the packing: Regularly inspect the packing and promptly identify signs of aging or hardening. Observe the appearance of the packing and check for dryness, cracks, or deformation.
Timely replacement of packing: If the packing is found to be aged or hardened, replace it promptly. Select high-quality packing materials to ensure they match the medium and working environment.
Packing may loosen due to valve stem vibration or loosening. The solutions are as follows:
Adjust valve stem tightness appropriately: Check the tightness of the valve stem to ensure close contact between the valve stem and the packing. If the valve stem is loose, adjust its tightness promptly.
Ensure appropriate compression of the packing: The compression of the packing should be moderate, neither too loose to cause loosening nor too tight to cause valve stem jamming. During installation, the packing should be filled and pressed ring by ring to ensure uniform stress.
Packing may seize the valve stem due to friction between the packing and valve stem, causing the valve stem to move abnormally. The solutions are as follows:
Select wear-resistant packing materials: Choose packing materials with wear resistance according to the nature of the medium and the working environment. For example, graphite packing can be used for high-friction environments.
Add lubricants: When possible, add lubricants to reduce friction between the packing and valve stem. The selected lubricant should be compatible with the medium and working environment to avoid adverse effects on the packing and valve stem.
Failure of valve stem packing may cause medium leakage and even safety accidents. Therefore, regularly checking the condition of the packing, detecting and handling failed packing promptly, is an important step to ensure the safe operation of valves. The following are some common methods to determine whether the packing has failed:
Visual inspection: Observe the valve's packing area visually and check whether there is wear, aging, or damage. If the surface of the packing shows visible damage, it may indicate packing failure.
Leakage detection: After closing the valve, observe whether there is leakage near the valve. If liquid leakage is detected, it may be due to packing failure. In addition, even without visible dripping, if the packing area appears damp, shows white crystallization (deposits left after steam evaporation), or emits an unusual odor, it may indicate minor leakage and decreased sealing performance.
Operational inspection: If operating the valve feels difficult or requires excessive force, it may indicate packing failure causing valve movement obstruction. Also, if the operating force changes noticeably during valve opening or closing, it may indicate packing issues.
Special testing equipment: Specialized instruments such as sealing performance testers can be used to evaluate the sealing performance of the packing and determine its condition based on test results.
After determining packing failure, the next step is choosing suitable packing materials for replacement. The selection of packing materials directly affects the sealing performance and service life of the valve.
Asbestos Packing: Asbestos packing is a traditional material with good sealing and high-temperature performance. However, asbestos is harmful to human health and requires protective measures during use. Additionally, asbestos packing has poor wear and corrosion resistance and is not suitable for high-friction or corrosive environments.
Graphite Packing: Graphite packing offers excellent high-temperature resistance and self-lubricating properties, making it suitable for high-temperature environments. It also provides good wear and corrosion resistance but has poor elasticity, requiring periodic adjustment of compression force.
Polytetrafluoroethylene (PTFE) Packing: PTFE packing has excellent corrosion resistance and self-lubricating properties, suitable for corrosive environments. However, it has lower high-temperature resistance and is not suitable for high-temperature applications.
Other Packing Materials: In addition to the above, there are special packing materials such as carbon fiber and ceramic packing. These materials have different performance characteristics and can be selected according to specific application requirements.
Valve stem packing is a key component in valves, and its performance directly affects the sealing and reliability of the valve. During use, packing may encounter problems such as leakage, permeation, temperature issues, surface fouling, aging or hardening, loosening, and seizing of the valve stem. By selecting appropriate packing materials, ensuring correct installation, and performing regular maintenance, these problems can be effectively solved and the service life of the packing extended.
In addition, using advanced design schemes such as spring compensation devices, hydraulic, and pneumatic sealing technologies can further improve the service life and sealing performance of the packing. In conclusion, only by emphasizing the selection, installation, and maintenance of valve stem packing can the safe and reliable operation of valves be ensured, providing strong assurance for industrial production.
