In the industrial field, the choice of sealing materials is crucial for the normal operation and safety of equipment. Graphite gaskets, as an efficient and reliable sealing solution, are widely applied in various complex industrial environments due to their excellent performance. This article will explore the unique advantages, application scenarios, and comparison with metal-jacketed gaskets of graphite gaskets and their composite forms, helping you better understand this important industrial material.
The primary function of graphite gaskets is sealing. They can seal a variety of media, including water, steam, oil, hydrogen, and chlorine. This wide sealing capability is due to the special structure and properties of graphite. Graphite gaskets have excellent sealing performance, effectively reducing leakage and contamination, thereby ensuring the normal operation and safety of equipment.
Graphite gaskets not only have excellent sealing performance but also possess certain elasticity and flexibility. This feature allows them to act as shock absorbers and buffers in mechanical equipment. During equipment operation, vibration and noise are common problems, and graphite gaskets can effectively reduce these phenomena. By absorbing vibrational energy, graphite gaskets can extend equipment service life and improve overall efficiency.
The excellent corrosion resistance of graphite gaskets is another significant feature. In industrial environments, many media are corrosive and can damage equipment. Graphite gaskets can effectively prevent these media from corroding the equipment, reducing maintenance and replacement frequency and extending service life. This corrosion resistance makes graphite gaskets particularly important in the chemical and pharmaceutical industries.
Graphite gaskets also have certain electrical conductivity. This feature allows them to be used in electronic devices that require liquid or gas sealing. For example, in equipment that requires conductive connections, graphite gaskets can serve as material connecting two or more conductors. This conductivity not only enhances sealing but also facilitates electrical connections.
Graphite gaskets also exhibit excellent high-temperature performance. They have good heat resistance and fireproof capabilities and can be used for sealing high-temperature equipment. In high-temperature environments, graphite gaskets can maintain their sealing performance and reduce the risk of fire. This feature makes them widely used in boilers, generators, and other high-temperature equipment.
Flexible graphite gaskets are made from flexible graphite sheets (sometimes with a metal reinforcement layer) and can be classified into four main types based on application requirements.
Flexible Graphite Gasket: Made by cutting flexible graphite sheets, this type is typically used for pipeline flanges and valve covers. It is suitable for small-diameter pipelines due to its relatively low mechanical strength.
Flexible Graphite Gasket MI: Constructed by sandwiching a hooked carbon steel sheet (0.2 mm thick) between flexible graphite sheets and then cutting to size. This design provides high mechanical strength.
Flexible Graphite Gasket PM: Flexible graphite sheets are bonded to both sides of a 0.2 mm thick 304 stainless steel sheet. This type offers high mechanical strength and ease of transportation. Its ability to be cut into complex shapes makes it widely applicable across various industries.
Flexible Graphite Gasket PM-A: Similar to PM, but the stainless steel sheet is replaced with 316 steel (50 μm thick), further enhancing the gasket's performance.
Graphite composite gaskets are an innovative form of graphite gaskets, composed of perforated metal plates or wire mesh combined with expanded graphite particles. This composite structure not only retains the excellent properties of graphite gaskets but also further enhances performance through the reinforcement of metal materials.
The structural design of graphite composite gaskets is very sophisticated. They are generally stamped or cut from reinforced graphite sheets using specialized gasket cutting equipment. Common internal reinforcement materials include SS304, SS316, or tinplate, with a thickness of 0.05–0.2 mm. According to different needs, graphite composite gaskets can use perforated plate reinforcement, mesh reinforcement, or flat plate reinforcement.
Graphite composite gaskets have excellent corrosion resistance, high and low-temperature resistance, and radiation resistance. They also have good compressive rebound and high strength. Compared with traditional metal gaskets and metal-jacketed gaskets, graphite composite gaskets require less preloading force and have lower flange surface requirements. This makes graphite composite gaskets more convenient to install and use, while also reducing costs.
Graphite composite gaskets can also adopt an edge-wrapping design. This design preserves the original excellent performance of graphite composite gaskets while facilitating equipment disassembly and preventing damage. The edge-wrapping design also prevents corrosion of the gasket by external oxygen, further improving temperature and pressure resistance.
Graphite composite gaskets have diverse structural types, including RF, MFM, and TG. These types are suitable for different flange connection forms, such as raised face, tongue-and-groove, and male-female flanges. RF gaskets can also be wrapped with stainless steel or carbon steel to form RF-E types, further enhancing performance.
Due to their outstanding performance and flexible design, graphite composite gaskets are widely applied in various industrial fields. They are mainly used for sealing at flange connections in pipelines, valves, pumps, pressure vessels, heat exchangers, condensers, generators, air compressors, exhaust pipes, and refrigeration equipment. Graphite composite gaskets can replace traditional asbestos-rubber gaskets and metal-jacketed gaskets, providing a more efficient and reliable sealing solution.
In the chemical industry, graphite composite gaskets are widely used for sealing chemical reactors, pipelines, and containers. Due to their excellent corrosion resistance, they effectively prevent chemical media from corroding equipment and extend equipment life. Their good sealing performance also prevents the leakage of harmful gases or liquids, ensuring production safety.
The petroleum industry has extremely high requirements for sealing materials, especially in high-temperature, high-pressure, and corrosive environments. Graphite composite gaskets, with their excellent heat and corrosion resistance, are ideal for petroleum drilling, pipeline transport, and refining equipment. They effectively prevent oil leakage, reduce environmental pollution, and ensure the normal operation of equipment.
The pharmaceutical industry requires strict cleanliness and safety standards for equipment. The corrosion resistance and sealing performance of graphite composite gaskets make them ideal sealing materials for pharmaceutical equipment. They prevent leakage and contamination during production, ensuring the quality and safety of drugs.
In food processing and packaging, the hygiene and safety of sealing materials are critical. Graphite composite gaskets' corrosion resistance and good sealing performance meet the strict requirements of the food industry. They prevent leakage and contamination during processing and packaging, ensuring food safety.
Power generation and transmission equipment require reliable sealing to prevent leaks and fires. The high-temperature performance and fireproof capability of graphite composite gaskets make them ideal for such equipment. They effectively prevent fires and ensure safe operation of power systems.

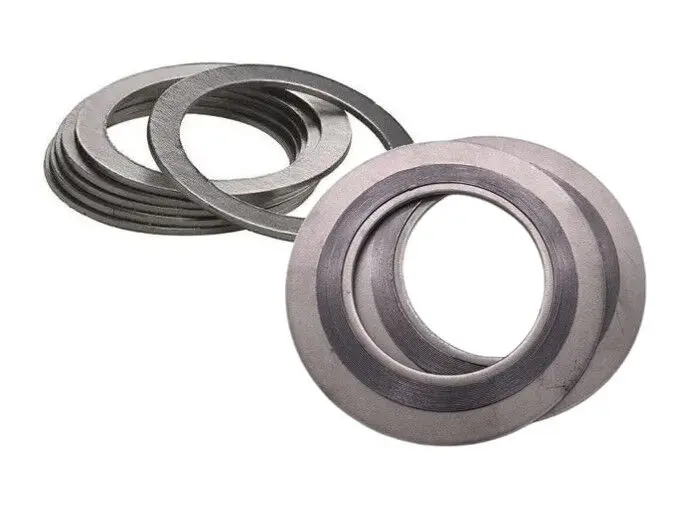

Graphite gaskets and metal-wound gaskets are both commonly used sealing materials in industry, but they differ significantly in chemical composition, physical properties, performance, and applications. Understanding these differences helps in selecting the most suitable sealing material.
Graphite gaskets are primarily made of graphite, which provides excellent electrical and thermal conductivity. They are also flexible and malleable, allowing customization in different thicknesses and shapes. Graphite gaskets offer outstanding pressure resistance, maintaining sealing performance even under extreme pressure conditions.
Metal-wound gaskets consist of a combination of metal strips and filler materials, commonly including graphite, PTFE, or fluoroelastomers. Their physical properties depend on the specific combination of metal and filler. Metal-wound gaskets exhibit good elasticity and adaptability, making them suitable for various flange surfaces.
Both types of gaskets have their own performance advantages. Graphite gaskets excel in pressure and wear resistance, capable of long-term use in high-temperature and high-pressure environments. However, their sealing ability is relatively limited, making them less suitable for certain specialized pipelines or vessels.
Metal-wound gaskets, on the other hand, offer superior sealing performance. By selecting appropriate fillers for different media, they can meet diverse process requirements. However, their pressure resistance is comparatively lower, and the compatibility of the filler with the process medium must be considered.
The applications of graphite and metal-wound gaskets also differ. Graphite gaskets are mainly used in high-temperature and high-pressure fields such as petrochemical, aerospace, and boiler systems, where pressure and heat resistance are critical.
Metal-wound gaskets are primarily applied in chemical and petroleum industries, where sealing performance and adaptability are key requirements. They provide a reliable sealing solution for various industrial processes.
Graphite gaskets and their composite forms play a crucial role in industrial sealing applications. They offer excellent sealing performance, corrosion resistance, and high-temperature tolerance, meeting the demands of diverse industrial environments. Composite graphite gaskets, reinforced with metal materials, further enhance their performance, making them even more reliable in complex conditions. In summary, graphite gaskets are a dependable choice for industrial sealing. Whether in the chemical, petrochemical, pharmaceutical, food, or power industries, they provide outstanding sealing performance, ensuring the safe operation of equipment. Choosing graphite gaskets means opting for an efficient, reliable, and secure sealing solution for industrial applications.
