In the complex operations of modern industry, the importance of sealing technology is self-evident. From high-temperature, high-pressure reactors in chemical plants to wellhead equipment in oil extraction, from turbines in power stations to pipeline systems in food processing, every link relies on reliable sealing solutions. Nickel wire reinforced graphite packing, as an advanced sealing material integrating high-temperature resistance, wear resistance, and superior sealing performance, is emerging in numerous industrial fields with its outstanding properties, becoming a reliable assistant for engineers in solving sealing challenges.
Graphite packing is a common sealing material, primarily composed of pure graphite, which is known for its excellent heat resistance and chemical inertness. However, to further enhance its performance, engineers have cleverly added metallic reinforcement layers such as nickel wire. These reinforcement layers not only increase the overall strength of the graphite packing but also significantly improve its wear resistance and tensile strength.
Graphite fibers form the main part of the graphite packing, providing excellent self-lubricating properties. This characteristic allows graphite packing to reduce friction and wear between high-speed mechanical components. Even in high-temperature environments, graphite fibers can maintain their excellent physical properties. They can withstand temperatures up to 600°C or even higher without thermal expansion or contraction, ensuring the stability of the sealing effect.

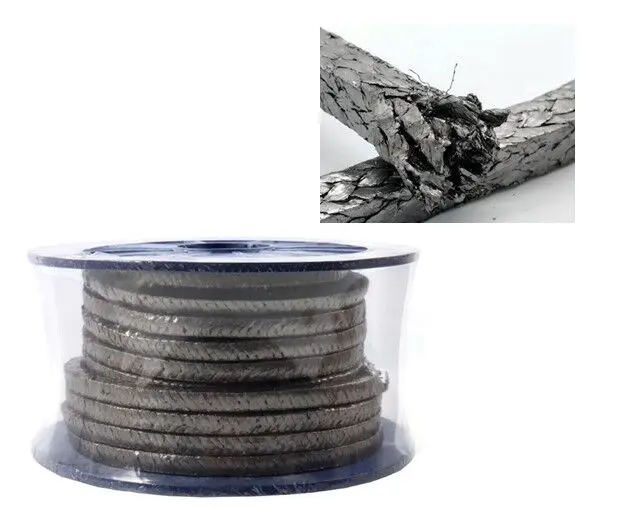

The addition of nickel wire is the unique feature of nickel wire reinforced graphite packing. Nickel, as a metal with excellent corrosion resistance, is often regarded as a guardian against corrosion in industrial applications. Introducing nickel wire into graphite packing not only enhances its corrosion resistance but also further improves the material's oxidation resistance and mechanical strength. This means that even under high-temperature, high-pressure conditions in acidic, alkaline, or oxygen-containing environments, nickel wire reinforced graphite packing can maintain long-term, stable sealing performance.
In addition to nickel wire, other metallic wires such as steel or copper may also be incorporated into graphite packing. These metal wires are carefully arranged and woven into the flexible graphite fiber layers, making the entire sealing material both flexible and strong. The presence of metal wires not only enhances the overall mechanical strength of the packing but also effectively resists compressive loads, preventing extrusion under excessive pressure. At the same time, flexible nickel wires provide additional flexibility, allowing it to adapt to various shapes and sizes of valve packing chambers.
Nickel wire reinforced graphite packing is highly regarded because it demonstrates outstanding technical advantages in multiple aspects. These advantages allow it to maintain stable sealing performance even under harsh conditions such as high temperature, high pressure, and corrosive media.
The self-lubricating properties of graphite fibers enable nickel wire reinforced graphite packing to reduce friction and wear between mechanical components. When mechanical parts rub against each other, graphite particles form a thin protective film on the surface, reducing wear caused by direct metal contact. This self-lubricating performance not only extends equipment lifespan but also reduces downtime costs caused by frequent seal replacements.
Graphite fibers can withstand temperatures up to 600°C or higher while also providing good thermal conductivity. This means that in high-temperature environments, graphite packing can quickly conduct heat, preventing local overheating that could lead to seal failure. This high-temperature resistance allows it to operate stably in chemical, petroleum, and power generation industries, ensuring the safety and efficiency of production processes.
Nickel wire reinforced graphite packing exhibits excellent chemical corrosion resistance, capable of resisting most chemical media. Whether in acidic, alkaline, or neutral environments, it can maintain stable sealing performance. This corrosion resistance makes it effective in preventing chemical leaks in chemical production, protecting equipment from corrosion.
The addition of nickel and other metal wires significantly enhances the tensile strength and wear resistance of graphite packing. These metal wires not only reinforce the physical strength of the product but also improve its oxidation resistance. Under intense vibration or high rotational speeds, the graphite packing will not easily break or deform. This high strength and wear resistance allow it to maintain stable sealing performance during long-term operation, reducing maintenance frequency and costs.
The excellent performance of nickel wire reinforced graphite packing enables its wide application in numerous industrial fields. Whether in high-temperature, high-pressure reactors in chemical production, wellhead equipment in oil extraction, or turbines in power stations, its presence is prominent.
In chemical production, sealing points of pumps, valves, and agitators are critical. These devices need to operate under high temperature, high pressure, and corrosive media, where traditional sealing materials often fall short. Nickel wire reinforced graphite packing, with its excellent self-lubrication, high-temperature resistance, thermal conductivity, and chemical corrosion resistance, has become an ideal choice in the chemical industry. It effectively prevents chemical leaks, protects equipment from corrosion, reduces maintenance frequency, and lowers maintenance costs.
In oil extraction, wellhead equipment faces high temperatures, high pressures, and corrosive media. Graphite packing performs excellently in this field. It can withstand the high temperature and pressure of the wellhead, effectively protecting equipment from damage. The corrosion resistance of nickel wire reinforced graphite packing ensures stable sealing performance even in acidic or alkaline environments, guaranteeing the safety and efficiency of oil extraction.
In high-temperature and high-pressure devices such as turbines and boilers in the power industry, sealing performance is crucial. Nickel wire reinforced graphite packing can withstand pressures of hundreds of kilograms while maintaining excellent physical properties in high-temperature conditions. It acts like a tough bond, tightly wrapped around the packing chamber, ensuring complete isolation of gases and liquids and improving the operational efficiency and safety of power stations.
In the food processing and pharmaceutical industries, the non-toxic and harmless nature of sealing materials is a primary requirement. Nickel wire reinforced graphite packing not only exhibits excellent chemical stability but also maintains stable sealing performance under high-temperature and high-pressure conditions. It effectively prevents leakage and contamination during production, ensuring product quality and safety.
Although nickel wire reinforced graphite packing has outstanding performance, correct installation and maintenance remain key to ensuring its sealing effect. The following are some important points:
Clean the packing chamber: Before installing graphite packing, ensure the packing chamber is clean and free of debris. Use a clean cloth or brush to remove any old packing or residues.
Cut packing correctly: Cut the graphite packing to the appropriate length according to the packing chamber size. Ensure cuts are smooth without burrs or cracks.
Install ring by ring: Place the graphite packing into the chamber ring by ring, ensuring each ring fits snugly but is not over-compressed. Use a packing tool to gently compact each ring evenly.
Moderate tightening: After installation, tighten the packing gland moderately, avoiding excessive force. Over-tightening may deform or damage the packing, affecting the sealing effect.
Regular inspection: Regularly check the sealing performance of the graphite packing and observe for leaks. If leakage occurs, adjust the packing gland as needed.
Avoid over-compression: Do not apply excessive compression to the packing during operation, as it may deform or damage the packing and affect its performance.
Timely replacement: If the graphite packing shows wear, aging, or damage, replace it promptly. Follow installation guidelines carefully to ensure the new packing functions correctly.
As an advanced sealing material integrating high-temperature resistance, wear resistance, and superior sealing performance, nickel wire reinforced graphite packing has demonstrated outstanding performance across numerous industrial fields. It can effectively address sealing challenges under high-temperature and high-pressure conditions, significantly reduce maintenance costs, and improve production efficiency. When selecting sealing materials, engineers should fully consider the operating environment and sealing requirements of the equipment to choose the appropriate graphite packing product. Proper installation and maintenance are also key to ensuring sealing performance. By selecting and using nickel wire reinforced graphite packing correctly, equipment operational safety and reliability can be effectively improved, providing strong assurance for smooth industrial production.
