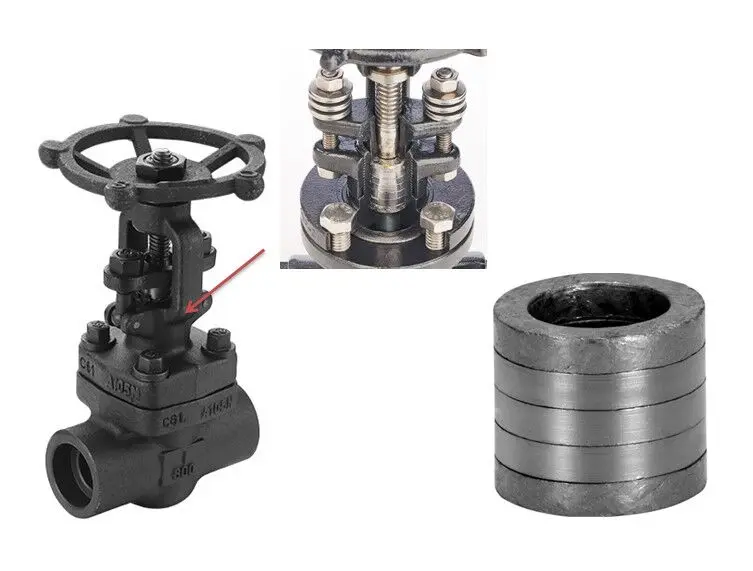

In industrial production, valves are indispensable equipment, and valve graphite packing, as a key component of valves, directly affects the sealing performance and service life of the valve. Correctly determining whether valve graphite packing needs to be replaced and mastering the correct replacement method are crucial to ensuring the normal operation of equipment. This article will provide you with a detailed explanation of how to determine whether valve graphite packing needs to be replaced, as well as the specific steps for replacing the graphite packing.
As a key sealing component of valves, the performance of valve graphite packing directly affects the sealing effectiveness and service life of the valve. Therefore, it is of great significance to timely and accurately determine whether the packing needs to be replaced, in order to maintain normal equipment operation and prevent potential safety hazards.
Wear Marks: Observe the surface of the packing for obvious wear marks, such as roughness, scratches, or thinning, which indicate that the packing may have been excessively used. For example, in valves that are frequently opened and closed, friction between the packing and the valve stem can lead to surface wear. Such wear damages the sealing structure of the packing and reduces its sealing performance. Additionally, if the packing is deformed—such as twisted, expanded, or shrunk—and cannot maintain its original shape and size, its sealing performance will also be affected. For instance, when a valve operates in a high-temperature environment, the packing may deform due to thermal expansion.
Signs of Aging: Check whether the packing shows signs of aging, such as darkened color, hardening, or becoming brittle. Aging is the gradual decline of material properties, and over time and under the influence of the operating environment, the physical and chemical properties of the packing may change. Carefully observe whether there are cracks on the surface of the packing; cracks destroy the integrity of the packing and significantly reduce its sealing performance. Once severe aging or cracking is found, the packing generally needs to be replaced. For example, in valves that have been used for a long time, packing may develop cracks due to prolonged mechanical stress and corrosion from chemical media.
Corrosion and Contamination: Check whether the packing has corrosion spots or contamination from the medium. If the medium is corrosive, the packing may be corroded and its performance reduced. For example, in the chemical industry, strong acids or alkalis may corrode the packing. Additionally, if the packing surface is covered with dirt, impurities, or discoloration caused by permeated medium, sealing performance may also be affected, and replacement should be considered. When a valve operates in a fluid containing solid particles, these particles may attach to the packing surface and affect its sealing performance.
Leakage: Leakage is an important basis for determining whether the packing needs to be replaced. Observe whether there are signs of medium leakage around the valve, such as dripping, seepage, or a noticeable odor. Even slight leakage can accumulate over time and cause serious problems. In systems requiring pressure containment, pressure tests can be used. If abnormal pressure drop occurs and other sources of leakage are ruled out, packing failure is likely. For example, in high-pressure steam systems, poor packing sealing can lead to steam leakage, resulting in energy waste and potential safety accidents.
Abnormal Temperature: If the temperature at the packing location is significantly higher than normal during valve operation, it may indicate excessive friction between the packing and stem, or leakage causing throttling heat. Both suggest that the packing may be damaged and needs replacement. For instance, in high-temperature and high-pressure valves, improper installation or aging of packing may increase friction and cause temperature rise.
Flow Rate Changes: If valve flow rate changes noticeably during system operation, such as reduced or unstable flow, and other causes such as pipeline blockage or valve opening degree are excluded, damaged packing may be affecting the valve's normal performance. For example, in liquid transport systems, poor packing sealing can cause leakage that decreases flow through the valve.
Operating Torque: If the valve becomes more difficult to operate and operating torque increases significantly, friction between the packing and valve stem may be too high. This may be due to aging, hardening, or overly tightened packing installation. If adjusting the packing gland does not resolve the issue, the packing may need to be replaced. For example, in valves that have not been maintained for a long time, packing may harden due to aging, resulting in increased operating torque.
Abnormal Sounds: If abnormal sounds occur during valve opening or closing, such as friction sounds, sticking, or knocking, there may be interference or wear between the packing and valve stem or other components. This also indicates that the packing may need to be replaced. For example, if the gap between the packing and valve stem is too small, or the packing is installed unevenly, friction or sticking noises may occur during valve operation.
After confirming that valve graphite packing indeed needs replacement, the next step is to carry out the replacement. This process must be performed carefully to ensure the new packing is correctly installed and provides effective sealing performance. The following are the detailed steps for replacing valve graphite packing to help you complete the process smoothly.
When removing old flexible graphite packing and replacing it with new packing, special tools (packing extractors) are needed, and gland nuts must be pre-tightened with fasteners. Additionally, always use standard safety equipment and follow related safety regulations. Before use, become familiar with the following equipment:
calibrated graphite packing ring cutter, safety helmet, torque wrench or wrench, fastener lubricant, internal and external calipers, reflector, packing cutter, packing extractor, vernier caliper, etc.
Slowly loosen the fixing nuts of the stuffing box to release all residual pressure in the flexible graphite packing assembly. This step is extremely important because residual pressure may cause medium leakage or even trigger safety accidents. Remove all old flexible graphite packing and clean the stuffing box of the shaft/stem. During removal, protect the valve stem and stuffing box surface to avoid damage. Inspect whether the shaft/stem is corroded, dented, scratched, or excessively worn. Also check other parts for burrs, cracks, and wear, as these defects shorten packing life. If severely defective parts are found, they must be replaced promptly. Inspect the old flexible graphite packing for failure analysis to identify the cause of early packing failure. This helps prevent similar issues when installing new packing.
Measure and record the shaft/stem diameter, the stuffing box diameter and depth, and the distance from the bottom to the top of the stuffing box when a water-seal ring is used. These measurements are essential for selecting the proper packing. Ensure that the selected flexible graphite packing meets the operational conditions required by the system and equipment. Based on the measurements, calculate the number of flexible graphite rings and the sectional size of the packing. Check the packing to ensure it is free from defects. Before use, ensure that both equipment and packing are clean.
Evenly apply a layer of lubricant, such as graphite powder or molybdenum disulfide grease, to the valve stem and packing surface. This reduces friction between the packing and stem, facilitates installation and valve operation, and helps improve sealing performance. Place the cut graphite packing rings into the stuffing box one by one. After inserting each ring, use a tool (such as a screwdriver or special packing insertion tool) to compact the packing, ensuring it fits tightly against the stuffing box and valve stem. The winding direction of the packing should match the rotation direction of the valve stem to prevent loosening during operation. If installing multiple rings, stagger the joints at 90° or 180° to prevent leakage paths. After all the packing is installed, reinstall the gland and tighten the gland nuts evenly. Do not overtighten them, as excessive compression may impair valve operation. Typically, tighten the gland nuts to a certain degree, loosen them slightly, and then make fine adjustments until the gland is in the proper position.
After installation, manually operate the valve to check whether opening and closing are smooth and whether there is any sticking or abnormal resistance. If operation is difficult, check whether the packing is installed correctly or overly tightened, or whether other components are interfering. Perform sealing tests using hydrostatic or pneumatic testing. With the valve closed, pressurize with water or gas and observe whether any leakage occurs at the packing area. If leakage is found, identify the cause and reinstall the packing. Based on test results, perform final adjustments to the packing gland. If slight leakage persists, gently tighten the gland nuts, but avoid overtightening to prevent damage to the packing or valve stem.
Through the detailed introduction above, you should now have a clear understanding of how to determine whether valve graphite packing needs replacement and the specific steps involved in replacing it. In actual work, correctly identifying the timing for replacement and mastering the correct replacement method can not only extend the service life of the valve but also effectively ensure safe equipment operation. We hope this article is helpful to you.
