Key Points for Early-Stage Coordination in Automation Retrofit

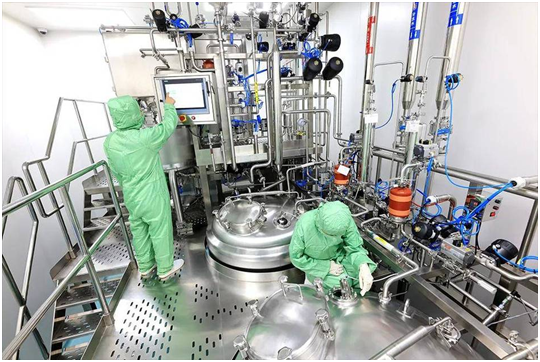

Pharmaceutical Intermediates Workshop Automation Upgrade: Core Considerations for Replacing Manual Valves with Pneumatic Valves
Advantages: Existing pipelines and pressure equipment are reused, eliminating the need for extensive piping modifications. Construction periods are short, typically 2 to 4 weeks per workshop. Costs amount to only 30%-50% of a new installation.
Key Challenges:
Limited space: Older workshops have compact layouts, often insufficient for installing pneumatic valve actuators, especially for large-diameter butterfly or ball valves. Adequate space must be reserved for actuator rotation and lift, usually at least 1.5 times the valve body height.
Interface mismatches: Flanges on existing pipelines may be non-standard (e.g., a mix of Chemical Industry Standard and ASME/ANSI) or suffer from flange face corrosion or bolt hole misalignment, preventing direct mounting of pneumatic valves.
Media sensitivity: Handling organic solvents (ethanol, acetone), acidic/alkaline liquids, or crystallizing materials requires corrosion-resistant materials (valve bodies in 316L stainless steel, seals in FKM) and designs avoiding dead legs to prevent material crystallization.
Explosion-proof and cleanliness: For explosion-proof zones (e.g., Class A workshops), pneumatic valves must be paired with explosion-proof solenoid valves (Ex d IIC T6). Cleanroom environments demand sanitary pneumatic valves with polished internal surfaces (Ra ≤ 0.8 μm) and clamp connections instead of flange joints.
Core Parameter Investigation Method Pharmaceutical-Specific Focus
Medium type/characteristics Review process flow diagrams and MSDS Confirm presence of particles (choose V-port ball valve to prevent sticking), crystallization risk (select heated pneumatic valve), flammability/explosion risk (check explosion-proof certification).
Original manual valve specs On-site measurement of valve diameter (DN), pressure rating (PN), flange standards (GB/T, ASME B16.5, etc.) Watch for diameter reduction in old piping (e.g., DN50 pipe actual ID 45mm), match pneumatic valve size to actual flow capacity.
Control requirements Discuss with process engineers: manual valve function (shut-off/ control), DCS linkage needs Confirm signal types for control valves (4-20mA input/feedback), determine fail-safe action for shut-off valves ("fail-close" preferred to prevent leaks).
Vertical space: Actuator height (e.g., DN100 ball valve actuator ~300mm) must have at least 50mm clearance above from pipes or beams.
Horizontal space: Allow manual adjustment space near valve stem (e.g., 300mm radius around pneumatic butterfly valve handle).
Surrounding environment: Install heat shields near hot sources (e.g., reactor jacket); typical actuator max operating temp ≤80°C, use high-temp actuators if exceeded. Moisture-prone areas require air line heating cables to prevent condensation.
Flange standard verification: Use flange gauges to measure outer diameter, bolt circle diameter, sealing face type (flat/raised/ring), compare with pneumatic valve flange drawings. For example, if old pipeline uses GB/T 9119 flat flanges but valve flange is ASME RF raised face, a transition flange is needed.
Corroded flanges: Replace in advance with 316L stainless steel flanges to avoid rust contamination.
Connection type adaptation: Older pipelines with threaded connections (DN ≤ 50) require threaded-to-flange adapters for pneumatic valves. Use PTFE tape for sealing; in oil-free environments, use pure PTFE gaskets.
Air supply: Verify existing compressed air pressure matches valve requirements (0.4–0.7 MPa). If workshop pressure is only 0.3 MPa, booster pumps are necessary.
Air quality: If no dryer is installed, recommend adding one, for pharma requires dew point ≤ -40°C to prevent actuator corrosion. Install high-precision filters (0.1 μm, automatic drain) before each valve.
Control system: Confirm spare I/O points in existing DCS (one digital input/output per valve, additional analog channels for modulating valves). Explosion-proof zones must have properly installed cabling (galvanized conduit, explosion-proof glands, intrinsic safety barriers).
Hidden costs: Custom non-standard flanges can constitute 10%-20% of retrofit costs, with 7–10 days lead time; air treatment equipment (dryer + filter) may cost 20,000–50,000 CNY per workshop.
Shutdown coordination: Minimize production impact by staged valve replacement, start with non-critical points, then core reactor inlet/outlet valves. Avoid long workshop-wide shutdowns, which can cause daily losses of 100,000–500,000 CNY.
For highly corrosive media (e.g., concentrated hydrochloric acid), require suppliers' corrosion test reports for valve body and seal materials (e.g., 316L stainless steel corrosion rate <0.1 mm/year in 5% HCl). Avoid using 304 stainless steel which can cause leakage.
Select single-seat or diaphragm pneumatic control valves with minimal dead volume (<5 ml) to avoid residue and microbial growth; avoid ball or butterfly valves with dead pockets. Post-cleanroom retrofit must pass cleaning validation (TOC ≤10 ppm) with valve internal surface polish per URS/FDA standards (Ra ≤0.5 μm for sterile environments).
Single valve test: Manual air supply to verify smooth valve switching and leakage testing (shut-off valve leakage must meet ANSI B16.104 Class VI, i.e., zero visible leakage).
System linkage: Simulate process variations (e.g., reactor overpressure) to confirm valve actions per logic (e.g., >0.8 MPa pressure triggers fail-close on feed valve, fail-open on discharge valve).
Trial operation under load: Continuous 72-hour run monitoring valve position stability (control valve position deviation ≤ ±1%), check actuator temperature (pneumatic cylinder temperature ≤60°C normal).
Identify "old system bottlenecks": space, flange compatibility, air supply, media properties, these four dimensions determine retrofit feasibility.
Comply with "industry red lines": explosion-proof, cleanliness, no dead legs, three essential compliance factors.
Control "cost rhythm": pre-order non-standard parts, plan staged shutdowns, conduct thorough inspection of reused equipment to mitigate retrofit risks.
Recommendation: For clients with similar needs, bring a "field survey kit" during early coordination, flange gauges, tape measure, pressure gauge, medium sampling bottles, to record on-site data directly into valve selection sheets. This avoids installation issues caused by experience-based estimations. In pharmaceutical automation retrofits, the core principle is: "Details determine compliance, compliance determines cost."
