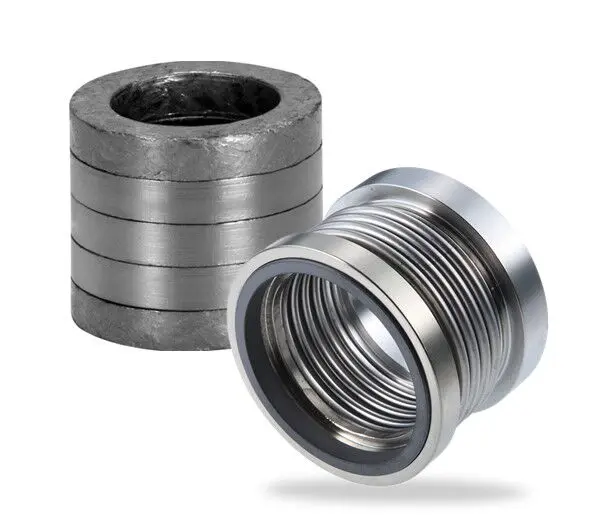

In industrial production, sealing components may be small, but they play an essential role. Whether in the reactors of chemical plants, mixing tanks in pharmaceutical factories, or conveying pipelines in food processing facilities, sealing elements act like loyal guardians, protecting the medium inside the equipment and preventing leakage that could cause environmental pollution, resource waste, or even safety accidents. Today, let us explore two common types of seals, packing seals and bellows seals, and examine their respective features, advantages, disadvantages, and suitable application scenarios.
Packing seals, also known as gland packing seals, are a long-established and widely used sealing method. The core lies in the packing material. These packings are filled into the stuffing box, and axial pressure applied by the gland bolts compresses and deforms the packing so that it tightly adheres to the shaft and the inner wall of the stuffing box, thus achieving sealing. Imagine stuffing a soft material into a cavity and then squeezing it tightly so that it adheres firmly to both the inner wall of the cavity and the shaft passing through it, preventing any liquid or gas from escaping through the gaps; this is the basic principle of packing seals.
Simple structure and easy installation: Packing seals have a relatively simple structure with no complex components. During installation, the packing is placed into the stuffing box in a specific manner and the gland bolts are tightened. This simplicity allows for quick installation, even by non-professional technicians, significantly saving time and labor costs.
Wide applicability: Packing seals can adapt to various operating conditions. From ordinary media at ambient temperature and pressure to more complex environments with certain temperature and pressure levels, proper selection of packing materials ensures effective sealing performance. For example, ordinary asbestos packing can meet the needs of small water pumps, while corrosion-resistant packing can withstand strong acids and alkalis in chemical applications.
Low cost: Compared with advanced sealing technologies, packing seals are relatively economical. Packing materials are inexpensive and widely available. For budget-limited organizations, especially small and medium-sized enterprises, packing seals are an affordable option for equipment sealing upgrades or repairs.
Prone to leakage: Because relative motion exists between the packing and the shaft, micro-gaps cannot be completely eliminated, regardless of manufacturing precision. Over time, these gaps may enlarge, leading to leakage. This risk is especially high in high-pressure or high-speed equipment. For instance, in large chemical pumps, packing seal failure may result in leaks of toxic or hazardous chemicals, posing threats to the environment and personnel safety.
Short service life: Packing materials are continuously worn during operation. Each shaft rotation causes friction that gradually degrades the packing. Generally, packing has a relatively short service life and may require replacement every few months to a year, increasing maintenance workload and cost.
Requires regular inspection and replacement: To maintain sealing effectiveness, packing seals require regular maintenance. Technicians must periodically tighten the gland bolts to maintain compression force and check wear conditions to replace worn packing promptly. For facilities with many installations, this ongoing maintenance can be labor-intensive and time-consuming.
Bellows seals represent a more modern sealing technology, using a bellows as the core sealing element. A bellows is a metal tube with a corrugated structure that can expand and contract axially. During operation, the bellows maintains tight contact between two sealing surfaces through elastic deformation, achieving sealing. This sealing method functions like a flexible spring that automatically adjusts sealing force in response to pressure and temperature changes, ensuring reliable performance.
Excellent sealing performance: Bellows seals have extremely low leakage rates, typically only about one percent of those of packing seals. In applications with stringent sealing requirements, such as high-temperature high-pressure reactors in chemical plants or sterile environments in pharmaceutical manufacturing, bellows seals effectively prevent leakage and maintain safe and stable operation.
Long service life: Because bellows seals contain no sliding parts or dynamic O-rings, friction and wear are minimized, resulting in a much longer lifespan. Bellows seals can often operate continuously for one to two years or longer, significantly reducing maintenance costs and frequency.
Strong adaptability: Bellows seals can withstand harsh conditions including high temperature, high pressure, and strong corrosion. Different bellows materials may be selected depending on the medium and temperature range, ensuring excellent performance in diverse industrial environments. For example, metal bellows are ideal for high-temperature steam systems, while rubber bellows suit low-temperature refrigeration systems.
Automation-friendly: Bellows seals require no frequent manual adjustments and are suitable for automated control. This is particularly beneficial for large automated production lines, reducing manual intervention and improving stability and efficiency.
Higher cost: Bellows seals require high-quality materials and precision manufacturing, making them more expensive. For companies with limited budgets, the initial investment can be challenging.
High installation accuracy requirements: Proper installation of bellows seals requires careful alignment. The anti-rotation slot must align with the anti-rotation pin, and perpendicularity and flatness between sealing faces must be ensured. Incorrect installation may reduce sealing performance or cause failure.
Poor adaptability to radial movement: Bellows seals are designed for axial movement and are less tolerant of radial shaft motion such as wobbling or eccentric rotation. Such movement can accelerate wear or lead to sealing failure.
Susceptible to fatigue: Repeated pressure fluctuations, thermal cycles, or high-speed shaft motion may cause metal fatigue in the bellows. Once the fatigue limit is exceeded, cracks may form, leading to seal damage and leakage.
After understanding the working principles and advantages/disadvantages of both sealing types, we can now compare them across several dimensions to aid in selecting the most appropriate seal for real-world applications.
Bellows seals outperform packing seals with significantly lower leakage rates and higher reliability, making them suitable for demanding applications. Packing seals, due to inherent micro-gaps, are more prone to leakage, especially under high pressure and high speed.
Bellows seals offer a much longer lifespan, often one to two years or more, while packing seals may require replacement within months, increasing maintenance frequency.
Packing seals have broad applicability across diverse media and conditions. Bellows seals excel under harsh conditions such as high temperature, high pressure, and strong corrosion, or where sealing performance must be strictly ensured. For simple conditions with low sealing requirements, packing seals remain a cost-effective choice.
Packing seals have lower costs and easier installation, while bellows seals demand higher investment and installation precision.
Packing seals require regular tightening, inspection, and replacement. Bellows seals need little maintenance and support automated operation, improving system stability.
Selecting the appropriate sealing method requires consideration of working conditions, medium characteristics, budget, and maintenance capability.
Evaluate temperature, pressure, speed, and radial motion.
For high temperature, high pressure, corrosive media, or stringent sealing requirements (e.g., reactors, sterile environments), bellows seals are recommended.
For simpler conditions such as small pumps or general pipelines, packing seals are economical and sufficient.
Media properties determine seal materials.
Corrosive media require corrosion-resistant packing or bellows materials.
High-temperature steam suits metal bellows.
Low-temperature media, such as refrigerants, may use rubber bellows.
Packing seals offer lower upfront cost but require more frequent replacement. Bellows seals have higher initial cost but lower long-term maintenance expenses.
If a facility has skilled technicians and strong maintenance capabilities, packing seals can be managed internally. For facilities lacking professional maintenance personnel, bellows seals reduce risk through lower maintenance requirements.
Packing seals and bellows seals are both common sealing methods in industrial production, each with its strengths and limitations. Packing seals are simple, low-cost, and widely applicable, but prone to leakage, shorter-lived, and maintenance-intensive. Bellows seals offer excellent sealing performance, long service life, and strong adaptability, but come with higher costs, installation precision requirements, and limited tolerance to radial motion.
When selecting sealing components, one must carefully evaluate working conditions, medium characteristics, budget constraints, and maintenance capabilities to ensure the best fit. Proper installation and maintenance are equally crucial to achieving effective sealing. Both sealing types play vital roles in their respective fields, and this detailed analysis aims to help readers better understand their characteristics and applications, providing valuable reference for sealing selection in industrial production.
