In industrial production, the selection of sealing materials is crucial. As a high-performance sealing product, graphite packing is widely used in various high-temperature, high-pressure, and corrosive environments. Faced with the wide range of graphite packing products on the market, how can one select truly high-quality graphite packing that meets specific needs? This article will provide a detailed explanation of the key points for choosing graphite packing, helping you easily purchase a product that meets your expectations.

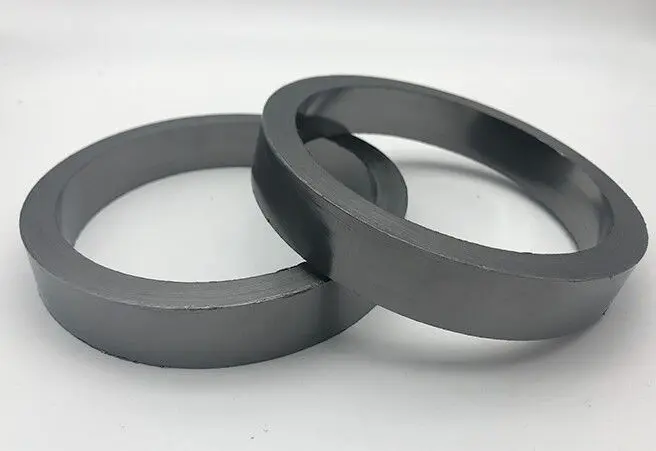

Graphite packing is made by finely braiding graphite yarn reinforced with various fibers and metal wires, such as steel wire, copper wire, nickel wire, carbon fiber, pre-oxidized yarn, or glass yarn. Its main components include graphite fibers, organic fibers, and rubber. Graphite fibers provide the product with excellent strength and wear resistance, enabling it to maintain stable performance in harsh working environments. Organic fibers enhance flexibility and durability, giving graphite packing better corrosion resistance and high-temperature resistance, allowing it to meet the sealing requirements of various complex media.
Graphite packing has numerous significant advantages. It possesses excellent sealing performance, performing well in both static and dynamic sealing, capable of stable long-term operation in high-temperature, high-pressure, and corrosive environments, effectively preventing medium leakage and ensuring the safe operation of equipment. At the same time, graphite packing has a long service life, reducing downtime and maintenance costs caused by frequent seal replacements, and improving production efficiency. Its wide range of applications covers multiple fields such as petroleum, chemical, and pharmaceuticals, making it an ideal sealing choice for many industrial devices.
Selecting graphite packing is not a simple task; it involves multiple considerations, and every detail may affect the performance and service life of graphite packing. Therefore, we will explore the key points for selecting graphite packing in depth, helping you filter out the most suitable product from numerous options.
When selecting graphite packing, the first step is to carefully observe its structure. High-quality graphite packing is tightly braided, uniform in structure, and free from obvious looseness or broken wires. Externally, its surface is smooth and flat, without noticeable defects or damage. At the same time, attention should be paid to the product's quality. Good graphite packing features excellent flexibility, high strength, and strong corrosion resistance. A simple stretch and bend test can preliminarily judge its flexibility and strength; a high-quality product will not easily break or deform under appropriate force.
The specifications and dimensions of graphite packing are important factors when selecting a product. Parameters such as outer diameter, inner diameter, length, and thickness must be chosen according to the specific equipment and operating conditions. For example, graphite packing used in different models of pumps or valves will have different sizes; if the size is inappropriate, it may lead to poor sealing or difficulty in installation. At the same time, it is necessary to choose a product suitable for the equipment's working pressure and temperature to ensure that the graphite packing can perform its sealing function stably in actual working conditions.
Usage scenarios are also important criteria for selecting graphite packing. Different equipment and operating conditions have different requirements. For example, for sealing rotating shafts and reciprocating motion, such as pumps, valves, and compressors, graphite packing with good wear resistance and anti-extrusion ability should be selected. For special applications, such as highly clean sealing environments or use in strongly corrosive media, graphite packing with corresponding characteristics should be chosen, such as products treated specially or reinforced with specific materials.
Material selection has a decisive impact on the performance of graphite packing. It is recommended to prioritize graphite packing composed of high-purity flexible graphite + 316L stainless steel wire + PTFE oil impregnation. High-purity flexible graphite has excellent chemical and thermal stability, maintaining good performance in high-temperature, high-pressure, and corrosive environments. 316L stainless steel wire enhances mechanical strength, making it more durable. PTFE oil impregnation further improves lubrication and sealing performance, reduces friction, and extends service life. Products claiming vague terms such as “special alloy fiber” should be approached with caution; reputable products clearly indicate material composition and performance indicators.
At the same time, attention should be paid to performance indicators. Standard graphite packing products clearly indicate key parameters such as maximum operating temperature, maximum line speed, and applicable media range. For example, the maximum operating temperature can generally reach around 450℃, but it may vary depending on the material and manufacturing process. Understanding these performance indicators helps you better determine whether the product meets your actual usage requirements, avoiding sealing failures caused by insufficient performance.
The braiding process of graphite packing directly affects its sealing performance and service life. Square braiding is tighter than round braiding and has stronger anti-extrusion capability. Therefore, when selecting, prioritize square-braided products. At the same time, carefully inspect whether the cut ends of the graphite packing are neat and burr-free. Neat cuts not only look better but also facilitate installation and improve sealing performance, while burrs may scratch equipment, affect sealing, and even cause leakage.
When purchasing graphite packing, check whether it meets relevant industrial standards and certifications, such as API 622 and ISO 15848-1. These international standards have strict requirements for performance, dimensions, and quality of graphite packing, and standard-compliant products are more reliable in terms of quality and performance. In addition, for special industries such as food and pharmaceuticals, attention should also be paid to whether graphite packing has FDA or NSF food-grade certification, ensuring that the product does not contaminate food or pharmaceuticals during use and complies with industry safety and hygiene requirements.
Good graphite packing is flexible and easy to cut and install. During installation, it can be cut according to the actual dimensions of the equipment, which is convenient and fast. At the same time, it should have good rebound after compression, not breaking easily. This excellent flexibility and rebound allow graphite packing to better adapt to the operating conditions of the equipment after installation, maintain stable sealing performance, and reduce the risk of leakage caused by improper installation or deformation during operation.
Graphite packing has various subdivisions, such as expanded graphite packing, flexible graphite packing, nickel wire graphite packing, stainless steel wire graphite packing, high-temperature packing, and high-temperature high-pressure graphite packing. These subdivisions are suitable for different working conditions and media based on different reinforcement materials and process characteristics.
For example, expanded graphite packing has good self-lubrication and thermal conductivity, low friction coefficient, strong versatility, good flexibility, high strength, and shaft protection. Depending on requirements, carbon fiber, 304, 316L, or Inconel nickel alloy wires can be used for reinforcement, meeting sealing needs in complex conditions. Metal-reinforced graphite packing, such as stainless steel wire graphite packing or nickel wire graphite packing, retains all advantages of pure graphite packing while increasing mechanical strength, performing excellently in high-temperature and high-pressure steam environments, and is suitable for sealing equipment such as steam turbines, high-pressure valves, and general high-temperature high-pressure valves.
The temperature resistance of graphite packing is an important guarantee for stable operation in high-temperature environments. Generally, graphite packing can withstand a maximum working temperature of around 2500℃, with a high thermal conductivity coefficient, meeting the requirements of high-temperature applications. However, in practical use, environmental factors such as oxidation and humidity must also be considered. Under high temperature, high pressure, and high vacuum conditions, graphite packing can react with oxidizing gases, causing irreversible damage. Therefore, selecting graphite packing materials with excellent chemical stability ensures longer service life and reliable performance under actual environmental conditions.
Selecting high-quality graphite packing requires comprehensive consideration of multiple aspects, including product structure, quality, size specifications, application scenarios, material selection, performance indicators, braiding process, surface details, industrial standards and certifications, flexibility, and installation convenience. Every aspect is crucial. By thoroughly understanding these key points and combining them with actual needs, you can select the most suitable graphite packing product, providing reliable sealing for industrial equipment and ensuring smooth production processes. During selection, it is recommended to consult suppliers for detailed product information and compare different brands and models to make an informed choice.
