Technical Requirements and Innovations of Inlet Control Valves for the Flare System

On this page

Magpie Valve Selection: Accurate Matching Ensures Reliable Control

Valve Technology Sharing

Technical Requirements and Innovations of Inlet Control Valves for the Flare System

Offshore Platform Refining Project: Zero Leakage and Precision Control as Technical Challenges

In offshore platform refining processes, the flare system serves as the "last line of defense" for safety, responsible for handling excess combustible gases and preventing overpressure explosions. The inlet control valve for the flare system, acting as the critical "throat point" where gases enter the flare, directly determines the system's safety and stability. This article, using an offshore platform project as a case study, explores the strict technical requirements, innovative designs, and engineering outcomes of such valves.

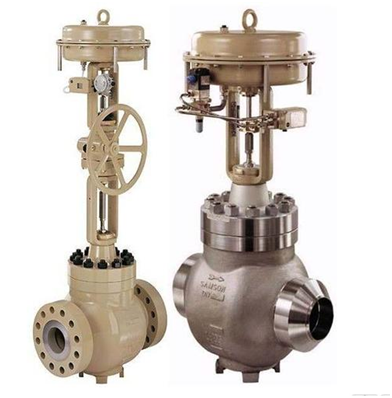

Inlet Control Valves for the Flare System

Core Operational Demands: Threefold Challenge from "Zero Leakage" to "Fast and Accurate Control"

1. Top-tier sealing standard: API Class VI Zero Leakage

The valve must achieve "zero visible leakage" in the fully closed state, meeting API 598 or ISO 15848-1 leakage class VI (6) — i.e., leakage ≤ 0.15 × DN (ml/min). For a DN200 valve, the limit is ≤ 30 ml/min. Actual testing achieved zero bubble leakage, far exceeding this requirement.

Key risk: In the confined space of offshore platforms, even trace leakage of combustible gases (e.g., natural gas, refinery tail gas) may form explosive mixtures, threatening platform safety.

2. Fast response: "Within-seconds opening" under combustion conditions

When the system triggers overpressure relief, the valve must go from fully closed to 90% open within 1 second, allowing combustible gases to enter the flare system rapidly and avoid equipment damage from pressure spikes.

Special operating condition: Flare gas flow can vary widely, from 100 Nm³/h under normal relief to 5000 Nm³/h in emergencies. The valve must accommodate both stable low-flow and unimpeded high-flow operations.

3. Precise flow control: Reduced port design and two-stage pressure reduction

Despite the DN200 pipeline size, normal relief flow is relatively low (200 Nm³/h). An equal-diameter valve may cause too low flow velocity and poor control accuracy (fluctuation ±15%).

Requirement: Flow control accuracy ≤ ±3%, with upstream pressure (max 4.0 MPa) stably reduced to 0.1–0.3 MPa for the flare system via two-stage pressure reduction, avoiding unstable flames from direct high-pressure combustion.

Technical Breakthroughs: Full-Chain Innovation from Design to Materials

1. Sealing structure: "Metal-to-metal + Elastic Soft Seal" Dual Protection

Primary seal: metal-to-metal (forged stainless steel + Stellite 6 hardfacing).

Valve body and seat are integrally forged from duplex stainless steel (e.g., 2507) for seawater corrosion resistance. The sealing surface is precision-ground (Ra ≤ 0.2 μm), forming a rigid fit that withstands 4.8 MPa gas pressure without deformation.

The valve disc features a double-eccentric design, detaching before rotation to reduce wear and friction, tripling service life (from 10,000 to 30,000 cycles).

Secondary seal: 0.5 mm PTFE liner adds elastic sealing outside the metal interface, using its low friction coefficient (μ ≤ 0.05) to fill microscopic gaps and ensure zero leakage — even if metal gaps are ~0.01 mm.

2. Flow Path Optimization: Reduced Port + Two-stage Pressure-reducing Sleeves

Downsizing design: DN200 body fitted with DN150 internals (downsizing ratio 0.75).

Effect: Normal flow velocity rises from 1 m/s to 1.8 m/s, reducing stagnation and turbulence. Flow control accuracy improves from ±15% to ±2.5%.

Surface hardened: Internal flow path coated with 0.3 mm tungsten carbide (WC), hardness HV1200, for resistance to erosion by high-speed particles (e.g., rust).

Two-stage pressure reduction:

Stage 1: Perforated sleeve with 50 φ3 mm holes reduces pressure from 4.0 MPa to 1.0 MPa, diffusing energy and lowering noise (from 120 dB to 95 dB).

Stage 2: Downstream labyrinth grooves reduce pressure further to 0.2 MPa, with fluctuation ≤ ±0.02 MPa, ensuring stable flame height (variation ≤ 0.5 m).

3. Actuator: Pneumatic Piston with Fast-exhaust Valve

Large-thrust pneumatic piston actuator (≥ 20 kN), integrated with a pre-charged air tank:

The tank maintains 0.7 MPa in standby.

During emergencies, both tank and main source supply air, reducing actuation time from 2 seconds to 0.8 seconds — meeting the 1-second/90% open requirement.

Integrated smart positioner: 4–20 mA input, ±0.5% position feedback accuracy, with "fail-safe" function — automatic valve closure upon power or air failure, preventing uncontrolled flare gas release.

Engineering Validation: From Pressure Testing to Customer Acceptance

1. Simulated Pressure Testing: Confirming Zero Leakage under Actual Conditions

Test medium: dry nitrogen (avoids moisture effects); pressure = 4.4 MPa (1.1× working pressure).

Procedure:

i. Fully closed valve holds 4.4 MPa for 30 minutes; no bubble seen at soap-leak test port (leakage < 0.1 ml/min — far below API VI threshold).

ii. Emergency actuation: Valve reaches 85% open in 0.7 seconds, full open in 1.2 seconds. Flow sensor shows 1000 Nm³/h with fluctuation ≤ ±3%.

Client feedback: "As a core safety device on an offshore platform, zero leakage and rapid response are essential — and these results exceeded expectations."

2. Cost-performance Benefit of Reduced Port

Traditional solution: DN200 full-bore valve + separate pressure-reducing valve — higher cost, more space (1.5 m additional piping).

Innovative design: Integrated downsized valve with two-stage pressure drop cuts cost by 30%, shortens installation by 600 mm — ideal for offshore platforms where space is extremely limited.

Technical Value: A Core Lever for Offshore Flare System Safety

1. Safety Benefits

Zero leakage eliminates accumulation and explosion risks. DNV GL certified, with PFD ≤ 1×10⁻⁵, meeting SIL2 safety level.

Rapid open response delivers 80% of rated flare relief flow within 1 second, buying time for process system pressure relief.

2. Efficiency Benefits

Flow control precision (±2.5%) stabilizes flare combustion, preventing black smoke and incomplete burning — meeting offshore VOC emission limits (≤ 50 mg/m³).

Downsizing and integration reduce equipment and maintenance workload by 40% (saving 3 high-elevation maintenance tasks per year).

Conclusion

The development and implementation of inlet control valves for the flare system on offshore platforms aim to deliver optimal safety and efficiency under extreme conditions. From API Class VI zero-leakage sealing to innovative downsizing and two-stage pressure control, every design element is driven by the high-risk, high-reliability demands of offshore operations.

This project proves that the value of industrial valves lies not only in meeting standards, but in exceeding operational expectations. When a DN200 valve body controls low flow precisely through internal downsizing, and a pneumatic actuator opens in 0.8 seconds to protect platform safety , it reflects the core principle of solving engineering challenges through innovation.

As the energy industry progresses toward greater safety and intelligence, breakthroughs in critical flare system valves are forming a resilient "dynamic safety barrier" offshore. With the rise of deepwater refining, valve technology will continue evolving toward tighter sealing, faster actuation, and smarter control, becoming an invisible but essential safeguard of national energy security.

If you're exploring valve solutions for similarly high-risk environments, we welcome collaboration, where each valve cycle becomes a trusted mark of industrial safety.
