Valve Technology Sharing: Sticking and Internal Leakage of Pneumatic Soft-Sealing Ball Valves: Focusing on PTFE Seat Stress Optimization and Application Adaptation

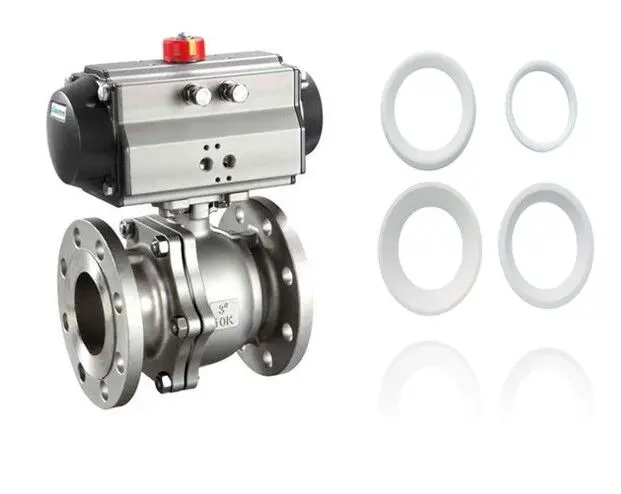

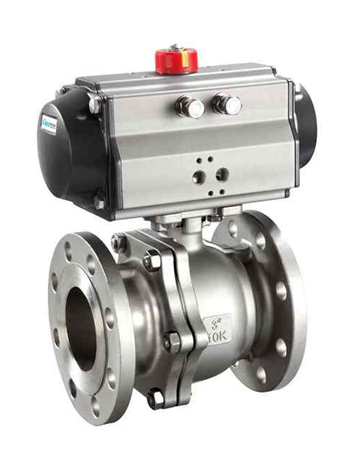

In medium-temperature fluid control systems, such as those found in the chemical, heating, and food processing industries, pneumatic soft-sealing ball valves are widely used due to their PTFE (polytetrafluoroethylene) seats, which offer thermal resistance (up to 120°C), low friction, and excellent sealing performance. These ball valves are commonly applied in controlling hot water, thermal solutions, and low-viscosity hot oils. However, recurring issues such as stem sticking and internal leakage during operation have become persistent reliability challenges. Extensive failure analyses have traced the root causes to two critical problems: overloaded pre-tightening damage and erosion under partially open conditions. In response, the innovative butterfly-shaped PTFE seat design is emerging as a comprehensive solution, addressing both superficial symptoms and fundamental flaws.
To meet strict factory leakage standards (e.g., API 598 zero leakage), many valve manufacturers apply pre-tightening torques that exceed safe limits. For example, in a DN100 valve, the theoretical torque should be 60–80 N·m, but actual values often reach 100–120 N·m. This overcompression disrupts the stress equilibrium of PTFE, a material known for stable thermal resistance at 120°C but still vulnerable to creep due to its yield strength (about 25 MPa at room temperature).
Excessive torque pushes contact stress between the seat and ball to 30–35 MPa, surpassing PTFE's yield limit. This forces the seat edge to plastically extrude into the concave surface of the ball, creating a 0.2–0.5 mm protrusion. The ball edge then scrapes the extruded PTFE during operation, generating micron-sized debris.
This debris accumulates around the stem packing and sealing surfaces, resulting in abrasive wear. Testing shows the torque rises sharply from an initial 50 N·m to over 150 N·m, surpassing 80% of the actuator's rated thrust (180 N·m), causing stick-slip motion and eventual stem failure.
When valves remain in 30–70% open positions due to process requirements, localized stress intensifies:
In a partially open state, contact area between the ball and seat drops by over 60%, increasing local stress to be 2.5 times. For example, stress rises from 18 MPa (fully closed) to 45 MPa (partially open), inducing cold flow in PTFE. Grooves 0.1–0.3 mm deep form along the media flow path, degrading the seal from line to point contact.
Once grooves breach the sealing lip, medium seeps into the seat-body interface. Even though PTFE has low water absorption at 120°C, long-term contact with polar media causes slight swelling and delamination. Leakage increases dramatically, from compliant levels (≤0.01% Cv) to 1–3% Cv, resulting in hidden, continuous loss.
Butterfly-Shaped PTFE Seat Innovation: A Mechanical Redesign from Flat Compression to Curved Load Distribution
To overcome stress issues with flat seat designs, the butterfly-shaped PTFE seat, featuring a dual-curved dome structure, provides a breakthrough by achieving uniform preloading and operational stress relief. This innovation relies on a tri-force synergy design concept:
The central dome (with curvature radius R = 1.2D, where D is the inner diameter) acts as an elastic stress buffer:
The curved surface forms initial ring contact with the ball. At equal torque, contact stress decreases by 40% (from 32 MPa to 19 MPa for DN100 valves). The dome absorbs 20–30% of the preload through elastic deformation, preventing edge extrusion, even under 120°C.
Given PTFE's thermal expansion coefficient (10×10-5/°C) vs. 316L stainless steel (1.7×10-5/°C), expansion mismatch is 8.3×10-5/°C. The dome height reduces 0.3–0.5 mm under heat, releasing radial stress and eliminating edge bulging. Tests show edge extrusion at 120°C drops from 0.5 mm (flat seat) to 0.15 mm (butterfly seat).
In partially open conditions, the sliding contact points on the curved surface minimize fixed stress zones:
Contact points shift along the seat's arc as the valve opens/closes, reducing localized pressure. Max stress drops from 45 MPa to 28 MPa, with 70% improvement in uniformity. Wear transitions from deep grooves to evenly distributed light scratches.
The curved seat guides media into a spiral flow, increasing velocity by 20% and flushing out PTFE debris. This stabilizes torque, reducing fluctuation from ±80 N·m to ±25 N·m, and shortens actuator response delay from 1.5s to 0.6s.
Adding 15% carbon fiber to PTFE (CF-PTFE) raises elastic modulus from 400 MPa to 700 MPa at 120°C. Creep strain under 20 MPa after 24 hours drops from 1.0% to 0.35%, significantly enhancing dimensional stability.
A two-stage preloading method is adopted: "Cold Assembly + Thermal Run-In". Preload torque is reduced by 25% at room temperature (e.g., from 120 N·m to 90 N·m for DN100 valves), followed by 20 full-stroke cycles at 120°C. This allows the butterfly seat to adaptively relieve residual thermal stress, avoiding the "tight-when-cold, loose-when-hot" failure cycle.
In a food processing plant's hot syrup delivery system (110–120°C), replacing conventional flat-seat valves with butterfly-seat designs produced significant results over 12 months.
Zero Sticking and Leakage: Previously, maintenance was needed every two months due to sticking, and leakage losses were around 50 kg/month. After the upgrade, no abnormal operation occurred, and leakage dropped below detectable limits (≤0.01% Cv).
Sharp Drop in Maintenance Costs: Seat replacement interval extended from 6 to 24 months; annual maintenance time decreased by 70%, and direct costs were reduced by 65%.
Enhanced Operational Compatibility: Even under prolonged partial-open operation (up to 3 weeks), torque remained stable at 60–80 N·m, well below actuator limits, eliminating the "partial-open sticking" pain point.
The issues of sticking and internal leakage in pneumatic soft-sealing ball valves under 120°C medium-temperature conditions fundamentally stem from a mismatch between material behavior, structural design, and real-world operating demands. The legacy flat PTFE seat design, prone to overload and erosion, reflects a misplaced emphasis on initial sealing over long-term reliability. The butterfly-shaped PTFE seat represents a paradigm shift, leveraging curved stress distribution, material enhancement, and thermal-responsive assembly to transition from passive leak prevention to active failure resistance.
This innovation not only strengthens safety and performance in medium-temperature systems but also highlights a core principle: sealing reliability depends on a deep integration of material science, mechanical design, and operational realities.
For the valve industry, this represents a leap from failure correction to failure prevention. By abandoning brute-force preloading in favor of intelligent design that respects material limits, we can finally escape the cycle of "the more we fix, the more we break", enabling more stable and efficient control of thermal media.
