In the industrial field, gaskets are a common type of sealing element widely used at the connections of various pipelines, valves, and equipment. The performance of gaskets directly affects the sealing effect and safety of the equipment. The P-T relationship of gaskets, which stands for the relationship between pressure (P) and temperature (T), is one of the key indicators for evaluating gasket performance. This article will delve into the meaning of the gasket P-T relationship, the factors that influence it, and the impact of testing standards on the P-T relationship, helping readers better understand and apply this important concept.

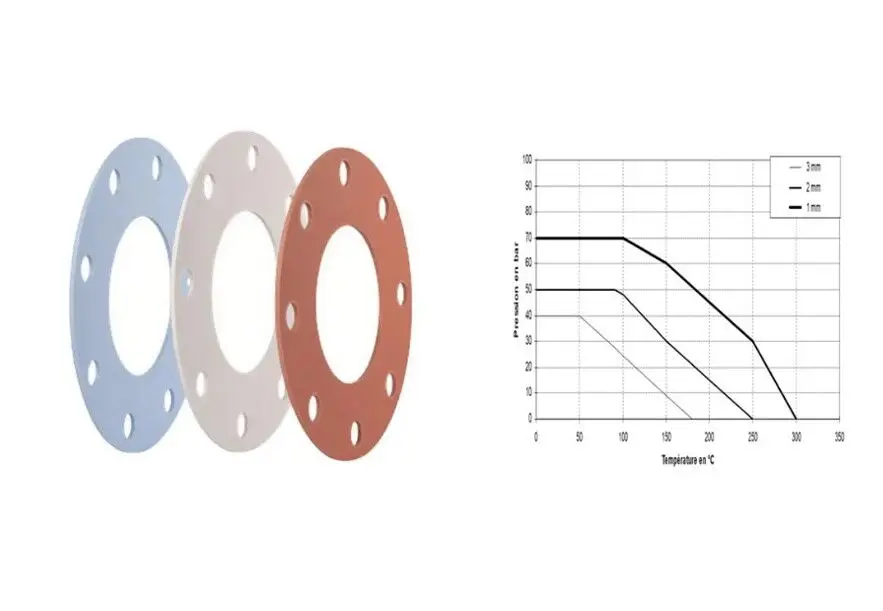

The P-T relationship is an important indicator of gasket performance, representing the usage limits of gaskets under different working pressures (P) and working temperatures (T). Specifically, P denotes the working pressure of the medium, typically measured in megapascals (MPa); T denotes the working temperature of the medium, measured in degrees Celsius (℃). Each gasket material has its maximum operating temperature and maximum operating pressure, but these two limits cannot be simply reached simultaneously. For example, a certain material may have a temperature limit of 150℃ and a pressure limit of 10MPa, but it cannot be used under conditions of 150℃ and 10MPa at the same time. Therefore, we usually use the P×T value or a P-T relationship graph to represent the matching relationship between the maximum operating temperature and maximum operating pressure allowed by the gasket material.
The P-T relationship of gaskets is influenced by a combination of various factors. These factors interact with each other, determining the performance of gaskets under different working conditions. Understanding these influencing factors helps us better select and use gaskets, ensuring their reliability and safety in practical applications.
Material is the primary factor affecting the P-T value. The thermal resistance, friction coefficient, tensile strength, and other properties of gasket materials directly impact their P-T values. For example, metallic materials generally have high tensile strength and pressure resistance but may not be as thermally resistant as graphite materials. Although graphite materials have good thermal resistance, their tensile strength is relatively low. Moreover, the structure of the gasket also affects its P-T value. Even with the same material, gaskets of different structures will have different temperature and pressure resistance properties. For instance, wound gaskets and jacketed plate gaskets have significantly different P-T relationships.
Currently, there is no unified testing standard that explicitly specifies the method for testing the P-T value of gaskets. Different testing methods and conditions can significantly affect the P-T value. Let's explore several key factors in testing standards in detail.
When testing the thermal and pressure resistance of gaskets, the working stress of the gasket is a crucial parameter. Generally, under the premise of being less than the crushing strength, the P-T value increases with the increase in gasket stress. For example, if a higher working stress is applied to the gasket during testing, the measured pressure and temperature resistance values may be higher. Conversely, if the working stress is low, the measured pressure and temperature resistance values will be lower. Therefore, determining the appropriate working stress for the gasket is vital for accurately measuring the P-T value.
The medium used in testing also affects the P-T relationship. Different media have different physical and chemical properties, which influence the thermal and pressure resistance of the gasket. For example, gaseous and liquid media have different requirements for the sealing performance of gaskets. If the leakage rate is used as the benchmark target, and different media are used for testing, the measured P-T relationship will vary.
Testing time is another factor that cannot be ignored. Under high-temperature conditions, the pressure and medium pressure resistance of the gasket will decrease with the extension of time. Therefore, the longer the testing time, the lower the P-T value of the gasket may be. This requires us to reasonably arrange the testing time to ensure that the testing results truly reflect the performance of the gasket in actual use.
The dimensions of the gasket, including the thickness and diameter, also affect the P-T value. Generally, the thicker the gasket, the lower its pressure and temperature resistance capabilities. The dimensions in the diameter direction, such as the diameter of the gasket and the width of the sealing surface, directly affect the ratio of the medium's thrust to friction force, thereby influencing the P-T value. Therefore, when designing and selecting gaskets, it is necessary to comprehensively consider these dimensional factors to ensure that the gasket's performance meets the requirements of the usage conditions.
Determining the failure criterion for the P-T value is also a key factor. Currently, the leakage rate or the gasket being blown out is generally used as the failure criterion to determine the P-T value at a certain pressure point or temperature point. Different failure criteria will lead to different test results. For example, if a lower leakage rate is used as the failure criterion, the measured P-T value may be lower; whereas if the gasket being blown out is used as the failure criterion, the measured P-T value may be higher. Therefore, selecting the appropriate failure criterion is very important for accurately assessing the performance of the gasket.
In practical applications, when designing and selecting gaskets, it is necessary to comprehensively consider the various factors mentioned above to ensure that the gasket's performance meets the requirements of the usage conditions. At the same time, regular inspection and maintenance of the gaskets are also required to maintain their good working condition and avoid equipment failures caused by a decline in gasket performance. Specifically, the following aspects can be considered:
Choose the appropriate gasket material based on the actual usage conditions. If the working temperature is high, materials with good thermal resistance, such as graphite, can be selected; if the working pressure is high, materials with high tensile strength, such as metallic materials, can be chosen. At the same time, the chemical corrosion resistance of the material should be considered to ensure that the gasket can work stably in the medium environment for a long time.
Select the appropriate gasket structure according to the structure of the equipment and the usage requirements. For example, for equipment that requires high sealing performance, wound gaskets can be chosen; for equipment that needs to withstand high pressure, jacketed plate gaskets can be selected.
Before putting the gasket into use, strict testing and verification are necessary. Choose the appropriate testing methods and parameters according to the actual usage conditions to ensure that the testing results truly reflect the performance of the gasket. At the same time, regular inspections of the gasket should be conducted to promptly detect and replace gaskets with declining performance.
During the operation of the equipment, regular maintenance and care of the gasket should be carried out. Check the sealing performance of the gasket, and promptly clean impurities and dirt from the gasket surface to ensure that the gasket can work normally. If signs of damage or performance decline are found in the gasket, it should be replaced in a timely manner to avoid equipment failures caused by gasket issues.
The P-T relationship of gaskets is a key indicator for ensuring the sealing performance of equipment. There are many factors that affect the P-T relationship, including materials and testing standards. In practical applications, we need to comprehensively consider these factors, reasonably select gasket materials and structures, and conduct strict testing and maintenance to ensure that the gasket's performance meets the requirements of the usage conditions. Through scientific and rational design and maintenance, the sealing performance and operational efficiency of equipment can be effectively improved, ensuring the smooth progress of industrial production.
In summary, the P-T relationship of gaskets is a complex and important issue that requires us to continuously explore and summarize experience in practice. It is hoped that the introduction in this article can help everyone better understand and apply the P-T relationship of gaskets, contributing to the safety and efficiency of industrial production.
