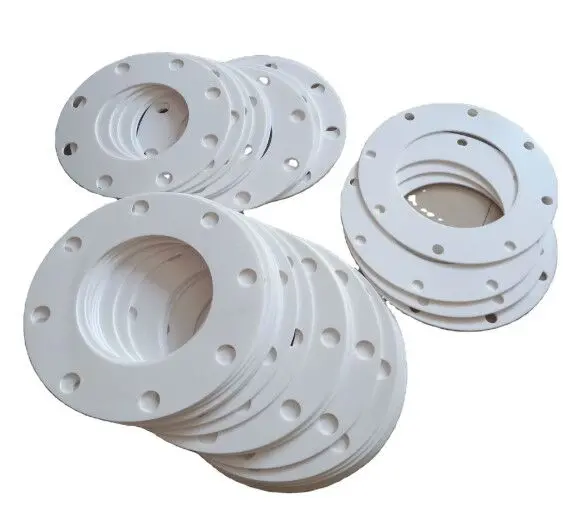

In the vast field of materials science, polytetrafluoroethylene (PTFE) is a remarkable material, renowned worldwide for its excellent chemical resistance and low friction characteristics. However, like two sides of the same coin, these superior properties of PTFE also bring its core challenge, creep. This material undergoes irreversible deformation over time under constant load, a phenomenon known in industrial applications as cold flow, which can lead to gasket thinning, reduction of clamping force on flanges, and ultimately connection failure and leakage. This article delves into the creep issue of PTFE gaskets and explores various strategies to address this challenge, ensuring that PTFE gaskets provide reliable sealing performance under a variety of complex operating conditions.
The molecular structure of PTFE is the source of its unique properties, but it is also the root cause of creep problems. PTFE is composed of long polymer chains that are not chemically crosslinked. Under pressure, these long chains can slide past each other without any mechanism to return to their original positions. This characteristic makes PTFE prone to permanent deformation under sustained pressure, even at room temperature. In stark contrast, elastomeric materials such as rubber consist of crosslinked molecules, which store energy like springs when compressed and allow the material to rebound to its original shape after the load is removed. This phenomenon is commonly referred to as material memory. However, PTFE lacks such crosslinking; once deformation occurs, it is permanent. This is why compressed PTFE gaskets do not rebound, resulting in a gradual loss of sealing force over time.
In industrial applications, PTFE gaskets are widely used in chemical, energy, and mechanical manufacturing sectors, especially in high-temperature and high-pressure environments, where it serves as a critical sealing material. However, conventional PTFE is prone to creep under long-term exposure to high temperature or pressure. This slow deformation leads to gasket thinning and reduces clamping force on flanges. Over time, the reduction in clamping force can result in seal failure, ultimately causing leakage. In many industrial scenarios, leakage not only interrupts production but can also pose significant safety hazards and environmental risks. Therefore, addressing the creep problem of PTFE gaskets is crucial.
To overcome PTFE's natural tendency to creep, material scientists have developed a variety of effective strategies. Among them, the most common solution is the production of filled PTFE composites. By adding materials such as glass, carbon, graphite, or bronze to the PTFE matrix, the creep resistance can be significantly improved. These filler particles provide a rigid internal structure that prevents PTFE polymer chains from sliding past each other under load. This reinforcement greatly reduces cold flow and helps maintain the clamping force of bolted connections.
Filled PTFE composites perform exceptionally well in many aspects. For example, the addition of inorganic fillers such as glass fiber and carbon fiber significantly enhances the mechanical strength and rigidity of the material, maintaining good shape stability even at temperatures above 260°C. Introducing materials like carbon tubes or oxides refines the microstructure, reducing the space for chain slippage at high temperatures, thereby improving creep resistance without affecting the original chemical inertness. The use of ceramic particles directly addresses high-temperature creep issues, as the mutual support between particles suppresses deformation and extends gasket service life.
Although filled PTFE is very effective at preventing creep, it is not a universal solution. Adding another material to the PTFE matrix fundamentally changes its properties, introducing key trade-offs that must be considered. Pure PTFE is almost inert to all industrial chemicals; however, the fillers themselves may not be. For example, glass-filled PTFE is not suitable for strong alkalis or hydrofluoric acid, as these chemicals can erode the glass filler. One of PTFE's signature characteristics is its extremely low friction coefficient, but fillers—especially hard ones like glass or stainless steel—can increase surface friction, making the gasket more abrasive. This may be an issue for softer flange materials or dynamic sealing applications. Furthermore, PTFE is an excellent electrical insulator with high dielectric strength, but adding conductive fillers such as carbon, graphite, or bronze significantly changes this property, making the material more conductive and unsuitable for applications requiring electrical isolation. In high-purity applications such as food processing, pharmaceuticals, or semiconductor manufacturing, filled PTFE may introduce contamination risks, as filler particles can leach or detach from the gasket material, affecting process fluids.
Choosing the appropriate PTFE gasket requires balancing mechanical stability with other system performance requirements. The following are key decision factors:
If maximum chemical resistance and purity are the main concerns, pure PTFE may be the best choice. Pure PTFE is almost inert to all industrial chemicals and performs well in high-purity applications such as food processing, pharmaceuticals, and semiconductor manufacturing. However, pure PTFE is prone to creep under high temperatures or loads, so applications must operate under low and stable clamping forces to minimize creep risk.
If the main concern is mechanical stability under high load, filled PTFE is a wise choice. By carefully matching fillers (e.g., glass for general use, carbon for static dissipative applications), system chemical and thermal requirements can be met while significantly enhancing creep resistance. For example, adding inorganic fillers such as glass fiber or carbon fiber significantly enhances mechanical strength and rigidity, maintaining good shape stability even in high-temperature environments.
If protecting soft or sensitive flange surfaces is the primary concern, abrasive fillers such as glass should be avoided. Instead, softer options such as graphite or specially designed low-wear compounds can be used. These materials provide sufficient mechanical stability while reducing flange surface wear.
In addition to material improvements, structural design and process enhancements are critical for improving PTFE gasket performance.
Multi-layer composite structures are a typical example of enhanced PTFE gasket performance. By stacking PTFE with materials of different properties, such as metal mesh or elastic layers, external pressure can be evenly distributed across layers, reducing deformation caused by local stress concentrations. Experiments have shown that this design can improve creep resistance by more than 30% in environments above 200°C. Additionally, surface texture designs, such as corrugated or patterned surfaces, increase the elastic contact area between the gasket and flange, maintaining sufficient sealing pressure even when high temperatures slightly soften the material. Adding positioning grooves or reinforcement structures at the gasket edges prevents displacement due to creep, further enhancing long-term reliability.
Process improvements are crucial in connecting material and structural design. Precision machining technologies are fundamental. Traditional mechanical cutting can lead to dimensional deviations or uneven surfaces, increasing leakage risk. Techniques such as laser cutting and CNC machining can control dimensional errors within 0.01 mm and reduce surface roughness to below Ra0.8, significantly improving sealing performance. Expanded PTFE (ePTFE) technology is a major recent breakthrough. By controlling the expansion of PTFE during processing, a more uniform microporous structure is formed, preserving flexibility while suppressing creep through mutual constraint between micropores. Additionally, optimizing material purity and crystallization processes is key. Increasing PTFE purity reduces interference with polymer chains, while controlling crystallization temperature and time creates uniform crystal grains, effectively limiting chain slippage at high temperatures and further enhancing creep resistance.
In practical applications, coordinated control of temperature and pressure is crucial. Pure PTFE has a long-term service temperature range of -180°C to 260°C, while filled or modified products can withstand short-term exposure up to 300°C. However, in environments above 200°C, usage pressure should be appropriately reduced (e.g., ≤1 MPa) to balance sealing performance with creep resistance. Additionally, high-temperature coatings such as ceramics can further enhance thermal stability while reducing friction, minimizing performance degradation caused by frictional heat.
PTFE gaskets are widely used in various industrial fields for their exceptional chemical resistance and low friction characteristics, but creep has always been a key limitation to their application. By thoroughly understanding the creep mechanism and employing strategies such as filled PTFE composites, optimized structural designs, and process improvements, PTFE's excellent properties can be preserved while significantly enhancing creep resistance. Selecting the right PTFE gasket requires balancing mechanical stability with other system performance requirements. By weighing these factors, the solution that best meets application needs can be found. Through these efforts, PTFE gaskets will continue to provide reliable sealing performance under complex operating conditions, ensuring smooth industrial production.
