Flanges and Gaskets – Forms of Sealing Gaskets (Part 10): Metal-to-Metal Sealing and Metal-Graphite Gasket Advantages
In industrial production, effective and reliable sealing technology is essential. Among the many sealing concepts, metal-to-metal contact sealing has gained significant attention due to its robustness and proven performance. But how does this concept achieve effective sealing? And what role do metal-graphite gaskets play within this framework? Let's explore these questions in depth.
The metal-to-metal sealing concept is a mechanically sound and field-validated design principle. At its core, it ensures stability and reliability in sealing systems through precision engineering of mechanical structures.
During the installation and operation of sealed connections, this design ensures continuous and controlled contact between the metallic surfaces of the flange, sealing elements, and limit rings. This direct metal engagement allows bolt loads to be evenly distributed across the flange face and metallic limit rings, which in turn maintains consistent gasket stress, a critical factor in sustaining long-term sealing performance.

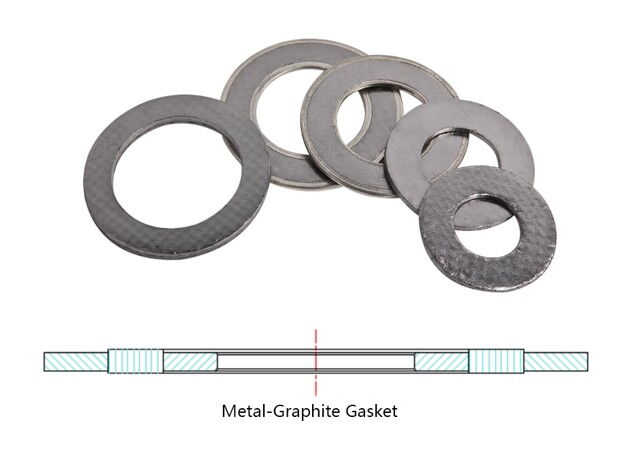

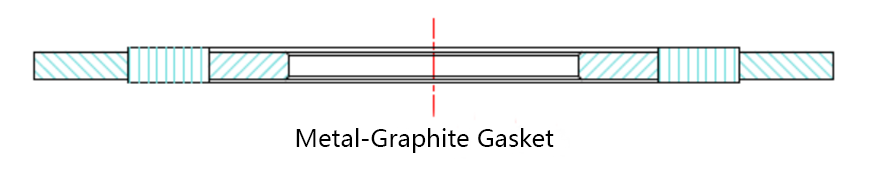

A classic application of the metal-to-metal concept is the metal-graphite gasket, which seamlessly combines the mechanical strength of metal with the excellent sealing capabilities of graphite. These gaskets typically consist of a graphite sealing ring supported by inner and outer metal rings. The graphite provides outstanding adaptability and sealing under variable conditions, while the metallic rings ensure dimensional stability and mechanical reinforcement.
In real-world applications, metal-graphite gaskets excel under fluctuating temperature and pressure conditions. Their design enables them to retain stable sealing properties and effectively prevent media leakage. Additionally, they are engineered for ease of installation and maintenance, making them suitable for a wide range of challenging industrial environments.
The metal-to-metal sealing approach, along with the use of metal-graphite gaskets, offers a highly dependable sealing solution. These designs not only enhance equipment operational reliability but also contribute significantly to industrial safety and environmental protection. Their successful implementation represents the harmonious integration of mechanical engineering and materials science.
At Magpie Sealing, we are committed to addressing complex sealing challenges and delivering high-performance solutions. If you have questions or need guidance on sealing technologies, feel free to follow us, leave a comment, or reach out for consultation.
Thank you for reading. Stay tuned for the next installment in our series on sealing gasket forms. See you next time!
