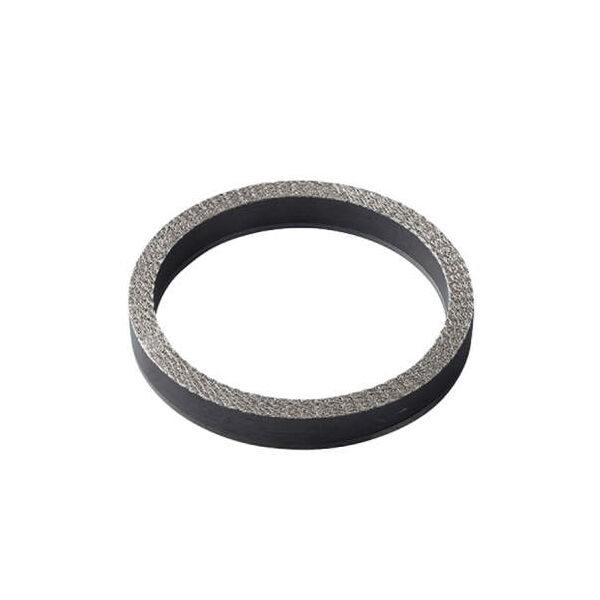

Pressure Seal Ring Gasket, Flexible Graphite, Class 4500
Key Specifications / Features
This pressure seal ring gasket, manufactured in China, is crafted from flexible graphite, offering excellent sealing performance in high-pressure applications. Rated for 77.6 MPaG (Class 4500 LB), it is designed for use in valve bonnets and high-pressure vessel lids. With low emission properties, it ensures minimal environmental impact while providing reliable, durable sealing even in the most demanding conditions, making it an ideal choice for critical applications requiring high-pressure containment and performance.
- Model No.: MV-20250407-GG-01
- Hits: 36
- Categories: Graphite Gasket
- Tags: Pressure Seal Ring Gasket, Flexible Graphite Gasket
Detail Information
Product Name: Pressure Seal Ring Gasket
Main Materials: Flexible Graphite
Pressure Rating: 77.6 MPaG (Class 4500 LB)
Temperature: Max 650°C

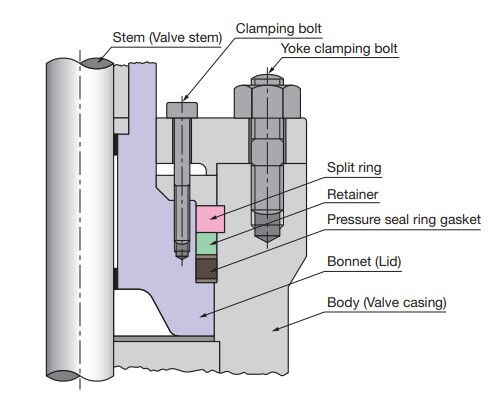

Applications: Used for valve bonnets, high-pressure vessel lids, and other devices for water and heating steam applications.
Features
Flexible Graphite Construction: Provides reliable sealing in high-pressure environments.
Stress-Free Design: Prevents localized stress that could lead to casing seal deformation.
Easy Removal: Can be removed without damaging sealing surfaces, allowing for simple maintenance.
No Casing Modifications Needed: Installs easily without altering existing equipment.
High Elasticity: Maintains excellent sealability across varying temperature and pressure cycles.
