(API 624 Additional High Temperature Version)
Key Specifications / Features
The ASTM A182 F316L Globe Valves Supplier offers compact and efficient globe valves designed to meet API 602 standards. These valves feature a 1/2 inch (DN15) size with a Class 800 LB rating and a PN130 pressure rating, ensuring they are suitable for high-pressure applications. The valves are designed for low fugitive emissions, enhancing safety and environmental performance. They come with FNPT threaded ends for secure and easy installation, and their compact design makes them ideal for space-constrained environments.
- Model no.: MV-20250610-FSGLV-07
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: 1/2 Inch Globe Valve, ASTM A182 F316L Globe Valve, Class 800 LB Globe Valve
Detail Information

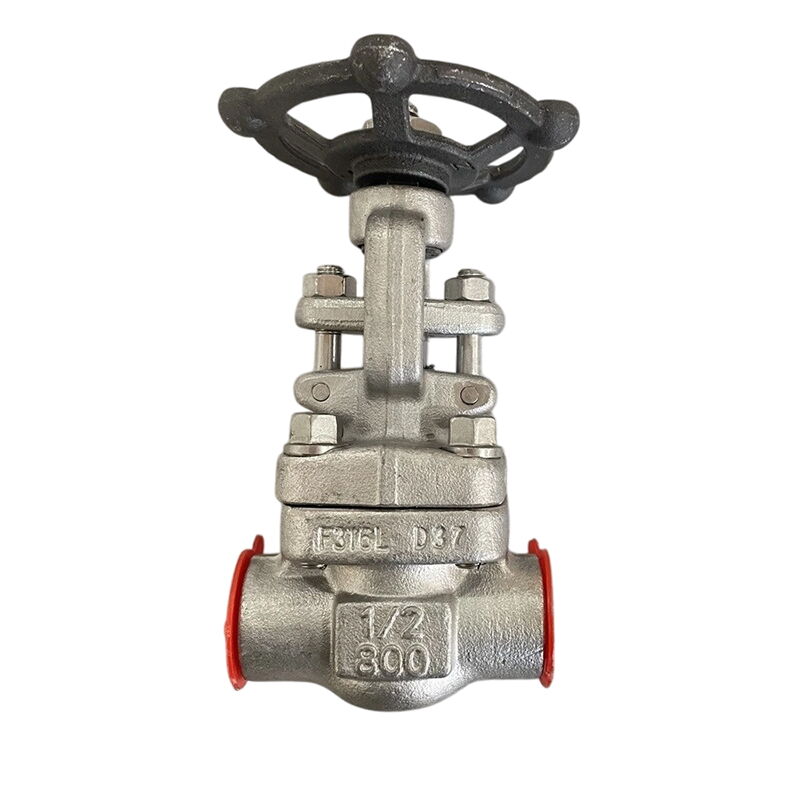

Product Name: ASTM A182 F316L Globe Valves
Design Standard: API 602
Body Material: ASTM A182 F316L
Size: 1/2 Inch, DN15
Pressure: Class 800 LB, PN130
Operation: Handwheel
End Connection: FNPT Threaded
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, F11, F22, F91, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: SW, BW, Flanged, NPT
Temperature Range: -29°C to 300°C
Medium: Water, Oil & Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
