(API 624 Additional High Temperature Version)
Key Specifications / Features

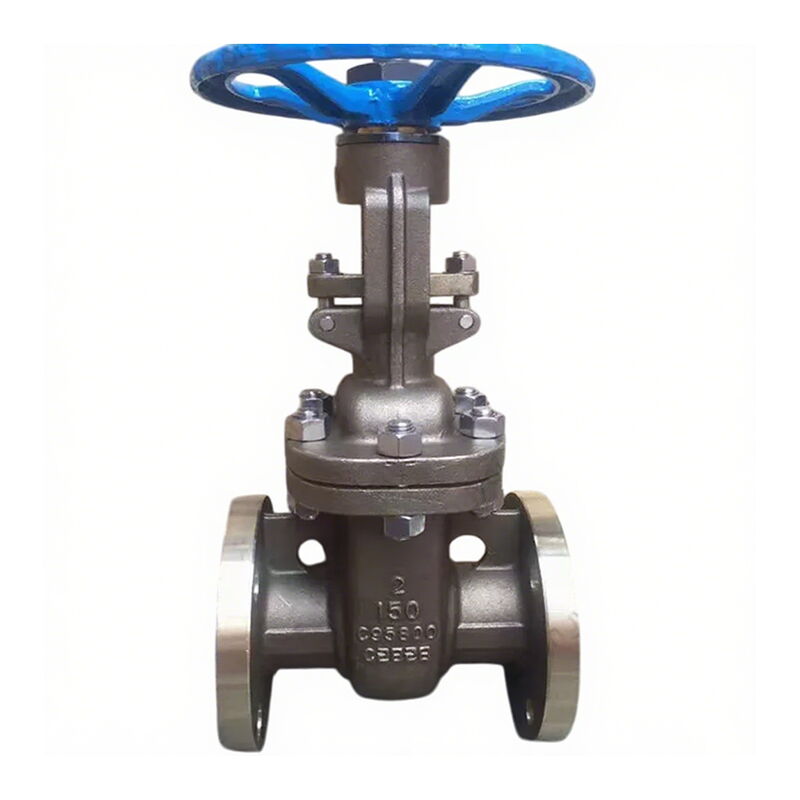

The ASTM B148 C95800 gate valve, supplied by a reputable manufacturer adhering to API 600 standards, features a robust aluminum bronze body and durable Monel trim. This 2-inch (DN50) valve is designed for a pressure class of 150 LB, ensuring reliable performance in various industrial applications. It comes with a bolted bonnet and RF flanged ends, making it easy to install and integrate into existing systems.
- Model No.: MV-20250624-CSGTV-01
- Hits: 3
- Categories: Cast Steel Gate Valve
- Tags: ASTM B148 C95800 Gate Valve, Aluminum Bronze Gate Valve, API 600 Gate Valve
Detail Information
Product Name: ASTM B148 C95800 Gate Valve
Design Standard: API 600
Body Material: ASTM B148 C95800, Aluminum Bronze
Trim Material: Monel
Size: 2 Inch, DN50
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Operation: Handwheel
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Materials: ASTM A216 WCB, WCC, A351 CF3, CF8, CF3M, CF8M, B148 C95800
Size: 1/2-24 Inch, DN15-DN600
Working Pressure: Class 150-2500 LB, PN16-PN420
End Connection: RF, RTJ
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Testing Standard: API 598
Working Temperature: -29°C to 550°C
Medium: Water, Oil, Gas, Acids, etc.
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
