(API 624 Additional High Temperature Version)
Key Specifications / Features
The China Brass Check Valve Manufacturer offers a versatile and reliable valve with a 3/4 inch (DN20) size, rated at 1.6 MPa (PN16, Class 150 LB). This brass check valve features threaded ends for easy installation and is designed for use with water, oil, and non-corrosive, non-flammable gases. Its robust construction ensures durability and consistent performance in various applications.
- Model No.: MV-20250704-CSCV-02
- Hits: 1
- Categories: Cast Steel Check Valve
- Tags: Brass Check Valve, 3/4 Inch Check Valve, Class 150 LB Check Valve
Detail Information

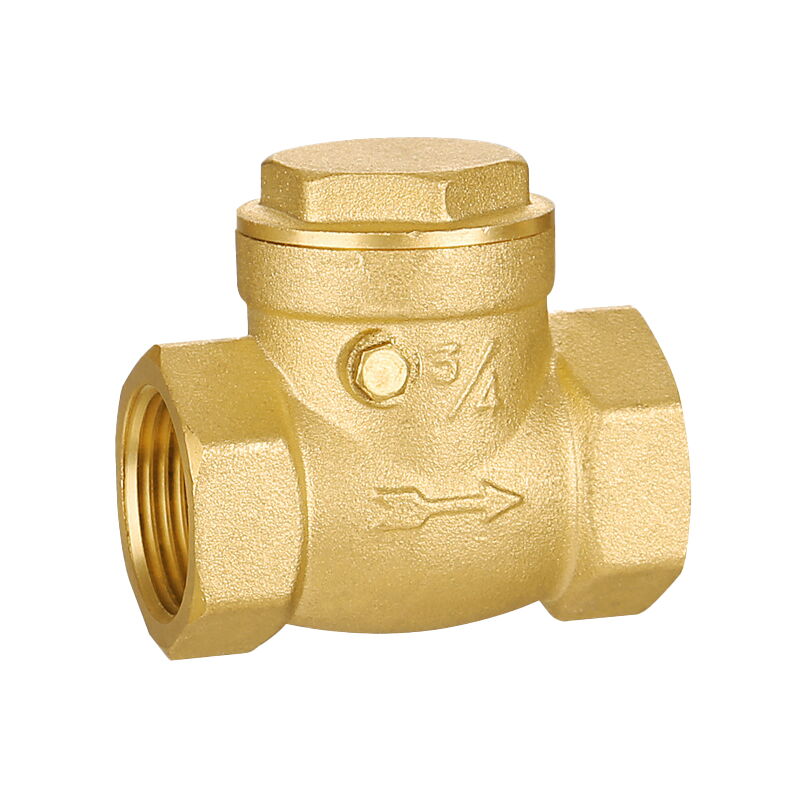

Product Name: Brass Check Valve
Main Material: Brass
Size: 3/4 Inch, DN20
Rated Pressure: 1.6 MPa, PN16, Class 150 LB
End Connection: Threaded
Working Medium: Water, Oil, Non-corrosive and Non-flammable Gases
Applicable Temperature: -10°C to 120°C

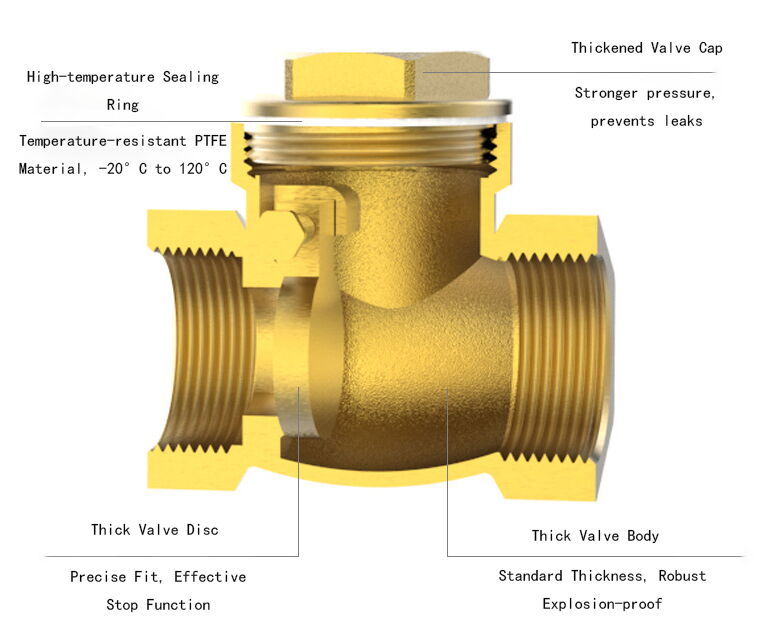

Brass Check Valve Features
1. Extended Thread Design
Strong installation fit, prevents leakage
Prevents water pipes from pressing against the flange during installation
2. Thickened Valve Body Flange
High-precision CNC machine processing
One-time molding, even wall thickness, wear-resistant, high strength
3. Standard Diameter, Large Bore, Sufficient Flow
Complies with national ISO228 standard diameter
Large water flow, faster water use
4. High-temperature Heat Treatment
Two rounds of heat treatment, removes processing stress
Makes the product more stable, pressure-resistant, and explosion-proof
