Key Specifications / Features
The Class 1500 LB Spiral Wound Gasket Factory manufactures high-performance gaskets featuring a flexible graphite tape and inorganic fiber filler. With an operating pressure of 25.9 MPaG, these gaskets are designed for demanding applications, offering low emission performance and superior sealing capabilities. Ideal for high-pressure environments, they ensure reliable and efficient operation while minimizing environmental impact.
- Model no.: MV-20250411-GG-05
- Hits: 0
- Categories: Graphite Gasket
- Tags: Flexible Graphite Gasket, Low Emission Gasket, Spiral Wound Gasket
Detail Information

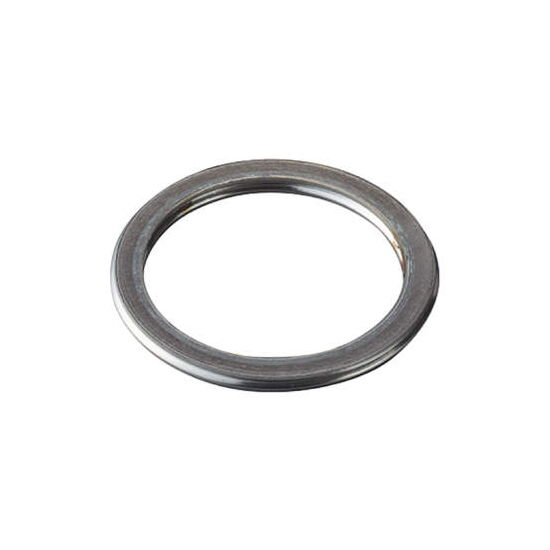

Product Name: Class 1500 LB Spiral Wound Gasket
Type: Basic Type Spiral Wound Gasket
Filler Material: Flexible Graphite Tape + Inorganic Fiber
Maximum Operating Pressure: 25.9 MPaG
Pressure Class: Class 1500 LB or Lower
Gasket Factor (m): 3
Minimum Design Seating Stress (y): 68.9 N/mm²
Minimum Seating Stress (y): 39.2 N/mm²
Operating Temperature Range: -200°C to +500°C
Feature: Non-penetrable flexible graphite tape on the outside and highly restorable inorganic fiber tape on the inside for optimal sealing.
