Key Specifications / Features
The Corrugated Metal Gasket Plant in China manufactures high-quality gaskets with a corrugated core made from carbon steel (CS) or stainless steel (SS 304/316L), covered with flexible graphite for enhanced sealing performance. Available in sizes ranging from 1/2 to 60 inches and rated for Class 150 LB and 300 LB, these gaskets ensure reliable sealing under varying pressure conditions. Designed for low emission, they are ideal for use in high-temperature, high-pressure applications.
- Model no.: MV-20250414-GG-02
- Hits: 7
- Categories: Graphite Gasket
- Tags: Metal Gasket, Corrugated Gasket, Graphite Covered Gasket
Detail Information

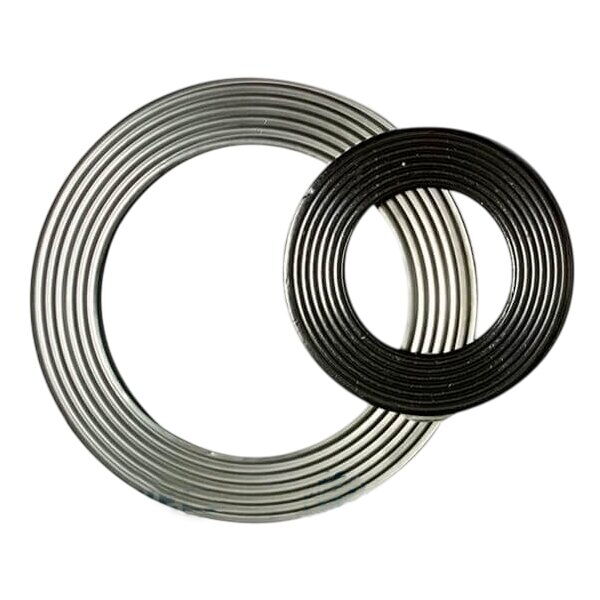

Product Name: Corrugated Metal Gasket
Structure: The metal wave plate is pressed to form a corrugated surface, then flexible graphite is applied to both sides.
Materials:
Corrugated Core: Carbon Steel, SS 304, SS 316L
Cover Layers: Flexible Graphite
Size Range: 1/2-60 Inch
Pressure: ANSI Class 150 LB & 300 LB
Thickness:
Standard: 3/32 Inch (2.38mm)
Other Options: 1/16 Inch (1.6mm) and 1/8 Inch (3.2mm) available upon request
