(API 624 Additional High Temperature Version)
Key Specifications / Features

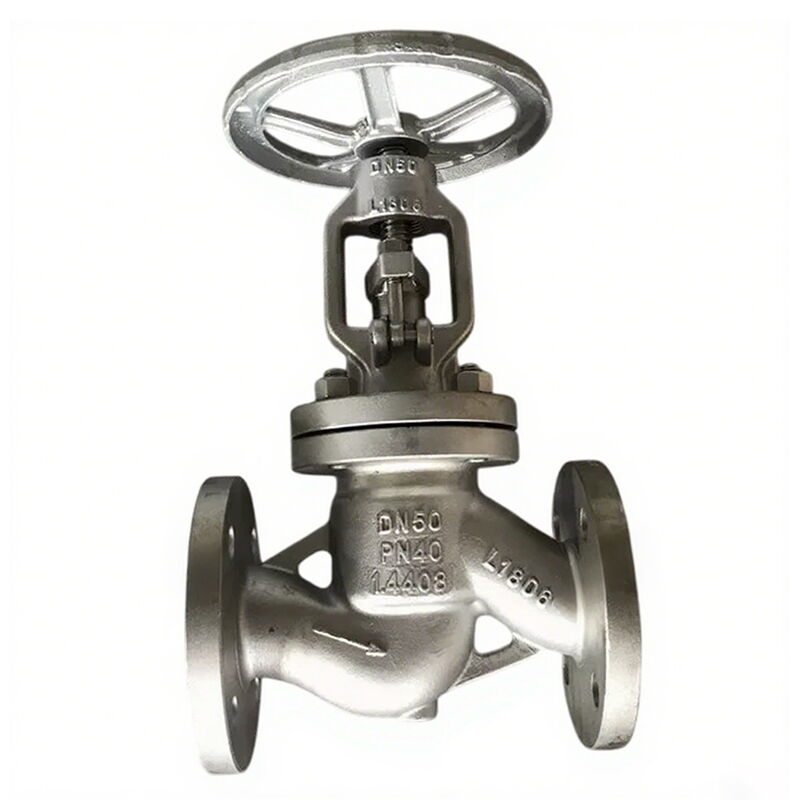

The EN 1.4408 Globe Valve is a high-quality cast stainless steel valve designed to meet DIN 3356 standards. This 2-inch (DN50) valve features a PN40 pressure rating and a Class 300 LB specification, making it suitable for demanding industrial applications. The valve is equipped with RF flanged ends for secure connections and is operated using a handwheel, providing easy manual control. This globe valve is ideal for industries requiring precise flow control and robust construction.
- Model No.: MV-20250624-CSGLV-01
- Hits: 7
- Categories: Cast Steel Globe Valve
- Tags: Stainless Steel Globe Valve, EN 1.4408 Globe Valve, DIN 3356 Globe Valve
Detail Information
Product Name: EN 1.4408 Globe Valve
Design Standard: DIN 3356
Body Material: EN 1.4408, Cast Stainless Steel
Trim Material: EN 1.4408
Size: DN50, 2 Inch
Pressure: PN40, Class 300 LB
End Connection: RF Flanged
Operation: Handwheel
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: EN 1.4408, EN 1.0619, GS-C25, ASTM A216 WCB, A352 LCB, A351 CF8, CF3, etc
Gasket & Packing Material: Graphite, PTFE
Size Range: 1/2-16 Inch, DN15-DN400
Pressure Range: Class 150-600 LB, PN16-PN100
End Connection: RF, FF, RTJ
Temperature Range: -29°C to 595°C
Medium: Water, Oil, Gas, Steam, etc
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
