Key Specifications / Features
Our Fugitive Emission Control Gasket Plant specializes in producing high-quality gaskets that meet stringent environmental standards. These gaskets are made from metal strips combined with non-metallic fillers, ensuring reliable sealing and minimal emissions. They are designed to comply with ISO 15848 standards, guaranteeing a maximum leakage rate of 50 ppmv. These gaskets can withstand pressures up to 50 MPa, making them ideal for high-pressure applications. With their excellent sealing properties, these gaskets are perfect for industries requiring robust and environmentally friendly solutions.
- Model No.: MV-20250729-GG-01
- Hits: 13
- Categories: Graphite Gasket
- Tags: Fugitive Emission Control Gasket, 50 MPa Gasket, ISO 15848 Gasket
Detail Information

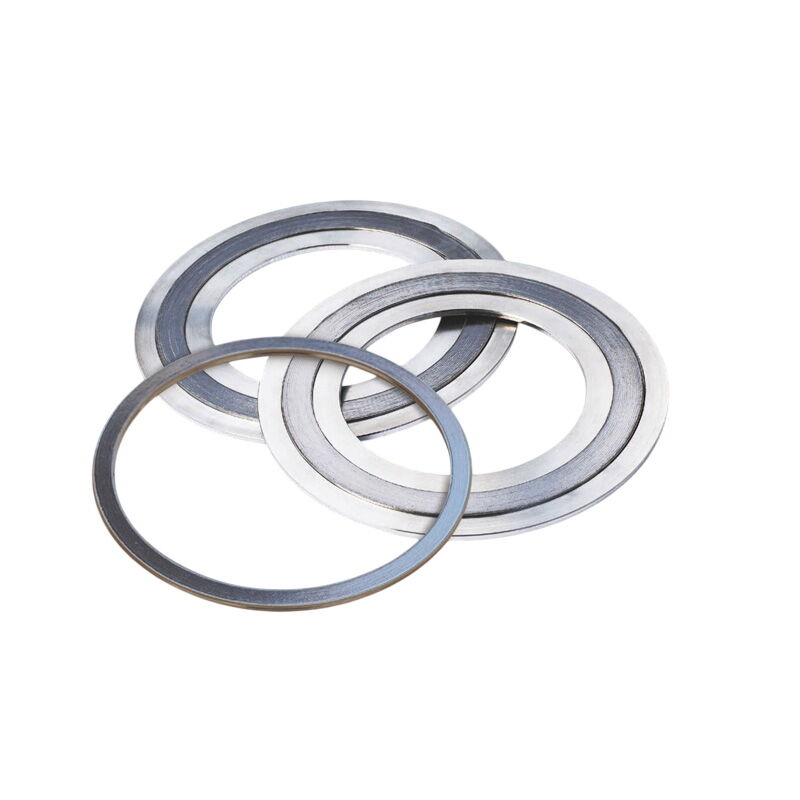

Product Name: Fugitive Emission Control Gasket
Material: Metal Strips, Non-metallic Filler
Leakage Rate: ≤ 50 ppmv (ISO 15848 test method)
Applicable Pressure: ≤ 50 MPa (cannot coexist with the highest applicable temperature)
Applicable Temperature:
Oxidizing media: -200°C to +600°C
Continuous operating temperature: ≤500°C
Non-oxidizing media (e.g., steam): ≤650°C
Medium: Suitable for most chemical media and gases, also suitable for steam
The Fugitive Emission Control Gasket is a composite pad made from special metal strips and high-quality non-metallic filling materials. It offers excellent resilience and reliable long-term sealing performance, suitable for VOC (Volatile Organic Compounds) control in valves, pipelines, and equipment.
Product Features
Efficient in controlling fugitive emissions
Capable of withstanding high temperatures and pressures
Suitable for various types of flanges
Easy to install
Application Scenarios: Suitable for use in various industrial sectors such as petrochemical, chemical, metallurgy, shipping, energy, and nuclear power.
