Key Specifications / Features
The Custom Metal Jacketed Gasket Plant produces high-quality gaskets designed for critical sealing applications in valves and heat exchangers. These gaskets feature a robust metal body made from SUS 304, SUS 316, aluminum, or carbon steel, ensuring durability and resistance to high pressures up to 25 MPa. The flexible graphite or PTFE filler provides excellent sealing properties, making them ideal for various industrial environments. This plant offers customizable solutions to meet specific customer requirements, ensuring reliable performance and longevity in demanding applications.
- Model No.: MV-20250731-GG-01
- Hits: 19
- Categories: Graphite Gasket , PTFE Gasket
- Tags: Metal Jacketed Gasket, 25 MPa Gasket, Carbon Steel Gasket
Detail Information

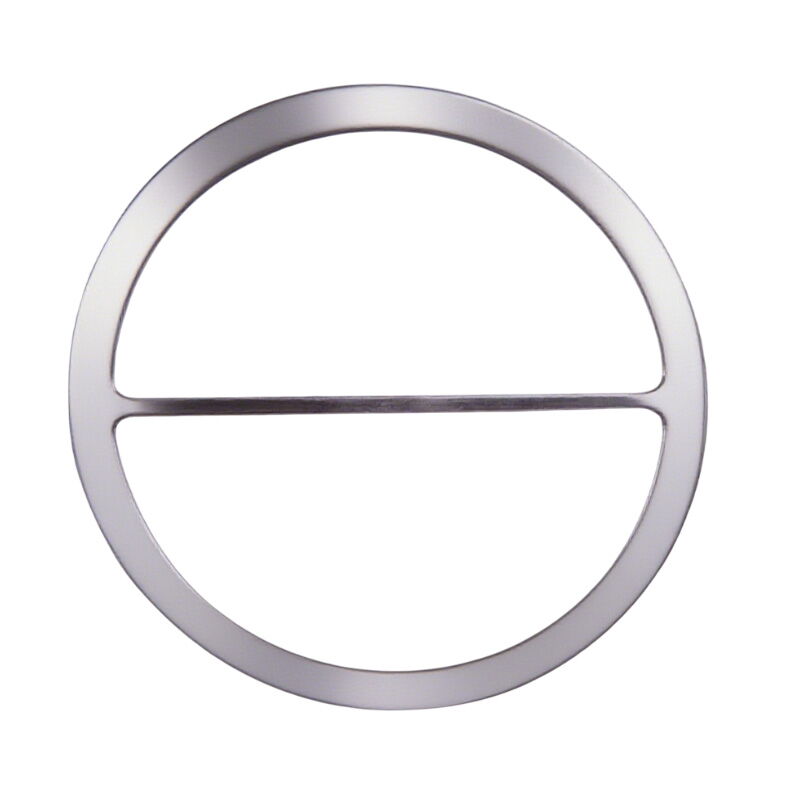

Product Name: Custom Metal Jacketed Gasket
Body Material: SUS 304, SUS 316, Copper, Aluminum, Carbon Steel, etc.
Filling Material: Asbestos Rubber Sheet, Flexible Graphite, PTFE, Non-Asbestos Sheet
Pressure: 25 MPa
Operating Temperature Range: -200°C to 800°C
Main Applications: Suitable for flange sealing in pipes and various types of equipment. Applicable for sealing in pumps, pipes, valves, heat exchangers, and other devices for various media.
The Metal Jacketed Gasket is a composite gasket that features non-metallic materials as its core, encapsulated within a metal plate. It offers several key characteristics: it boasts corrosion resistance and heat resistance comparable to that of jacketed gaskets. Additionally, the non-metallic flexible filler material ensures an effective seal even under lower preloads.
