Metal Jacketed Gasket, Flexible Graphite Filler, Steel Sheet
Key Specifications / Features
This Metal Jacketed Gasket Supplier offers low emission gaskets featuring a flexible graphite filler wrapped in a thin metal sheet. The graphite used contains 98% carbon, with an overall gasket composition of 40–50% graphite content. Designed for high-temperature and high-pressure environments, these gaskets ensure reliable sealing, excellent chemical resistance, and long-term performance in critical industrial applications.
- Model No.: MV-20250411-GG-03
- Hits: 27
- Categories: Graphite Gasket
- Tags: Low Emission Gasket, Metal Jacketed Gasket, Flexible Graphite Gasket
Detail Information
Product Name: Metal Jacketed Gasket
Materials: Flexible Graphite, Thin Metal Sheet
Graphite Carbon Content: 98%
Graphite Content in Gasket: 40–50%

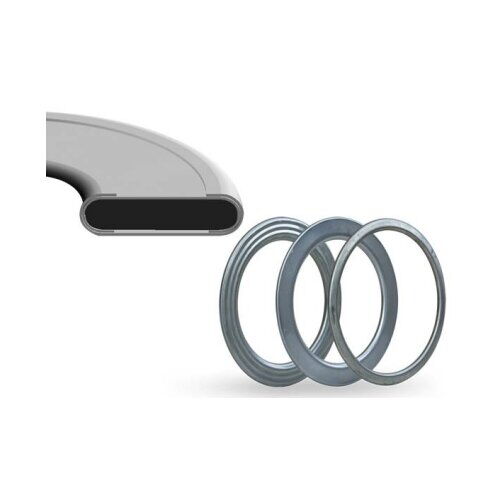

Construction: Formed by Wrapping a Thin Metal Sheet Around a Flexible Graphite Filler; Optional Extra Graphite Layers on Both Sides for Enhanced Sealing Performance
