(API 624 Additional High Temperature Version)
Key Specifications / Features

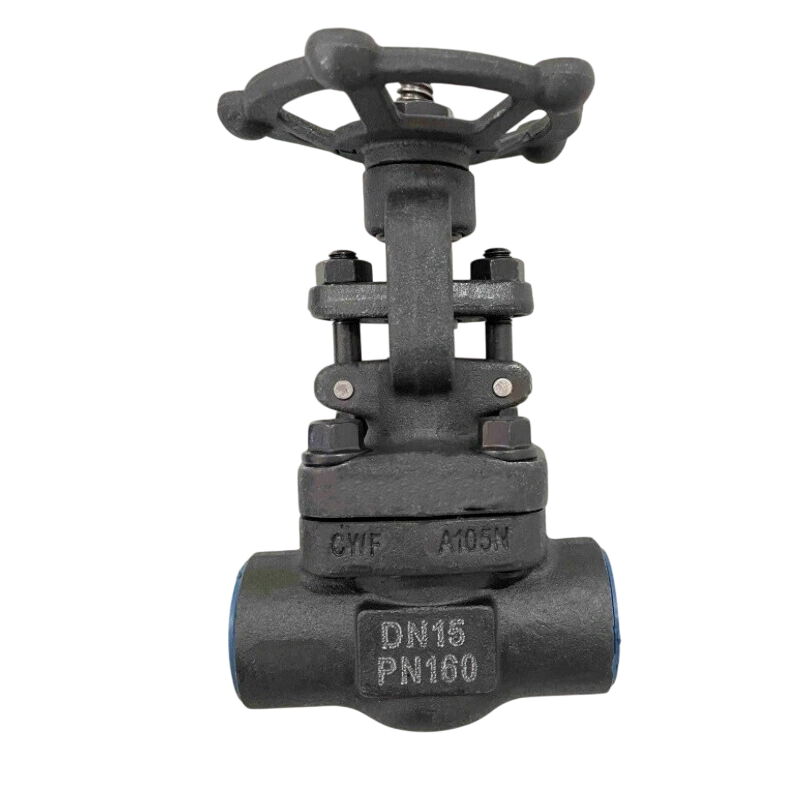

The ISO 15761 Gate Valve Plant in China offers high-quality Low-E Gate Valves designed to meet stringent industry standards. These valves comply with API 602 and are crafted from forged carbon steel ASTM A105N, ensuring durability and reliability. Available in DN15 (1/2 inch) size with a PN160 pressure rating, they feature a rising stem and NPT threaded ends, making them suitable for various industrial applications.
- Model no.: MV-20250609-FSGTV-05
- Hits: 1
- Categories: Forged Steel Gate Valve
- Tags: 1/2 Inch Gate Valve, ASTM A105N Gate Valve, ISO 15761 Gate Valve
Detail Information
Product Name: ISO 15761 Gate Valve, Rising Stem
Design Standard: ISO 15761, API 602
Body Material: ASTM A105N
Size: DN15, 1/2 Inch
Pressure: PN160, Class 900 LB
Operation: Handwheel
End Connection: NPT Threaded (ASME B1.20.1)
Face to Face Standard: MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, F11, F22, F91, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch
End Connection: SW, BW, Flanged, NPT
Pressure Range: Class 150-2500 LB
Temperature Range: -29°C to 425°C
Medium: Water, Steam, Gas, etc.
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
