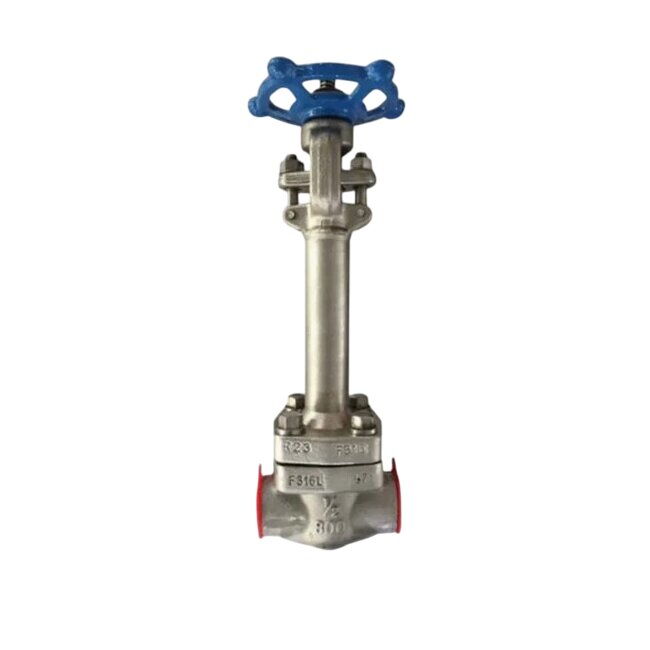

API 602 Cryogenic Gate Valve, BS 6364, A182 F316L, 1/2 Inch

Compliant with TA-LUFT/ISO 15848-1/API 624
(API 624 Additional High Temperature Version)

Key Specifications / Features

The API 602 Cryogenic Gate Valve is a high-performance forged steel valve designed for low-temperature applications. Made from ASTM A182 F316L stainless steel, it complies with BS 6364 standards for cryogenic service. Featuring a 1/2 inch size, Class 800 LB pressure rating, and low leakage design, this valve ensures reliable sealing and precise control in extremely cold environments. The Outside Screw & Yoke (OS&Y) and rising stem configuration enhance operational efficiency.

Model no.: MV-20250403-CGTV-01
Hits: 0
Categories: Cryogenic Gate Valve
Tags: Cryogenic Gate Valve, BS 6364 Gate Valve, ASTM A182 F316L Gate Valve

Request a quote

Detail Information

Product Name: Forged Steel Cryogenic Gate Valve
Design Standard: BS 6364, API 602
Body Material: ASTM A182 F316L
Size: 1/2 Inch, DN15
Pressure: Class 800 LB, PN130
End: Welded
Operation: Handwheel
Features: Outside Screw & Yoke (OS&Y), Rising Stem

Product Range

Nominal Diameter: 1/2-2 Inch
Nominal Pressure: Class 150-2500 LB
Inspection & Testing Standard: API 598
Face-to-Face Dimension Standard: ASME B16.10
Design & Manufacturing Standards: BS 6364, API 602, ASME B16.34
Body Material: ASTM A105N, A350 LF2, LF3, A182 F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S, Incoloy 800H, Incoloy 600, Incoloy 625 and other special alloys
Cryogenic Performance: Certified to ISO 15848-1, successfully tested at Class 1500 LB and -196°C

Sealing & Gaskets

Packing: Inconel-reinforced packing
Flange Seal Gasket: TA-Luft certified gasket
Fully degreased and oil-free treatment for installation

Unique Additional Features

Low Torque Operation: Equipped with a nut and flat thrust bearing for reduced torque
Open/Close Position Indicator: Ensures clear valve position visibility
Locking Chain Mechanism: Enhances operational security
Belleville Spring Compensation: Provides additional sealing reliability

Gate Valve, Class 1500 LB, -196°C, ISO 15848-1 Type Test TUV SÜD Certification
