(API 624 Additional High Temperature Version)
Key Specifications / Features

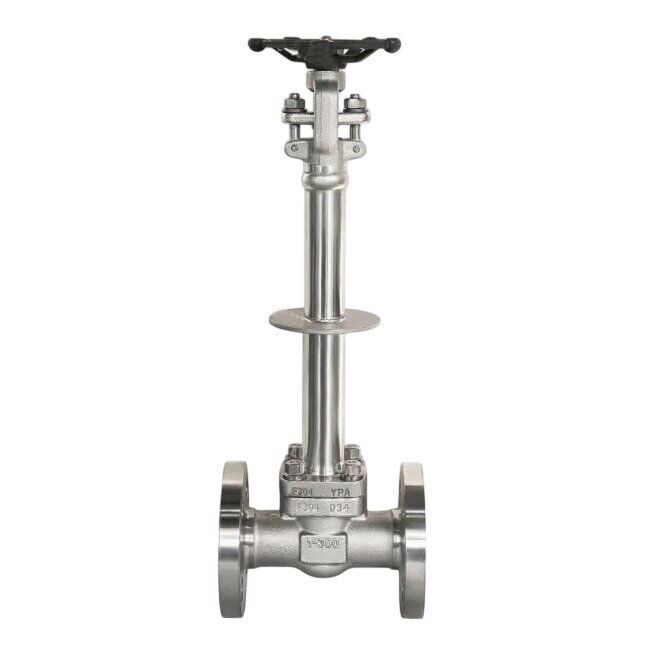

The ASTM A182 F304 Cryogenic Gate Valve is a high-quality forged stainless steel valve designed for cryogenic applications. Compliant with BS 6364 and API 602 standards, it features a 1-inch (DN25) size, Class 300 LB pressure rating, and PN50 compatibility. The full port design ensures minimal flow restriction, while its low emission construction reduces leakage. This valve is engineered to provide reliable performance in extremely low-temperature environments.
- Model no.: MV-20250403-CGTV-02
- Hits: 0
- Categories: Cryogenic Gate Valve
- Tags: BS 6364 Gate Valve, Cryogenic Gate Valve, ASTM A182 F304 Gate Valve
Detail Information
Product Name: ASTM A182 F304 Cryogenic Gate Valve
Design Standard: BS 6364, API 602
Body Material: ASTM A182 F304
Size: 1 Inch, DN25
Pressure: Class 300 LB, PN50
End: RF
Port: Full Port
Operation: Handwheel
Features: Outside Screw & Yoke (OS&Y), Rising Stem
Product Range
Nominal Diameter: 1/2-2 Inch
Nominal Pressure: Class 150-2500 LB
Inspection & Testing Standard: API 598
Face-to-Face Dimension Standard: ASME B16.10
Design & Manufacturing Standards: BS 6364, API 602, ASME B16.34
Body Material: ASTM A105N, A350 LF2, LF3, A182 F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S, Incoloy 800H, Incoloy 600, Incoloy 625 and other special alloys
Cryogenic Performance: Certified to ISO 15848-1, successfully tested at Class 1500 LB and -196°C
Sealing & Gaskets
Packing: Inconel-reinforced packing
Flange Seal Gasket: TA-Luft certified gasket
Fully degreased and oil-free treatment for installation
Unique Additional Features
Low Torque Operation: Equipped with a nut and flat thrust bearing for reduced torque
Open/Close Position Indicator: Ensures clear valve position visibility
Locking Chain Mechanism: Enhances operational security
Belleville Spring Compensation: Provides additional sealing reliability
Gate Valve, Class 1500 LB, -196°C, ISO 15848-1 Type Test TUV SÜD Certification
