(API 624 Additional High Temperature Version)
Key Specifications / Features

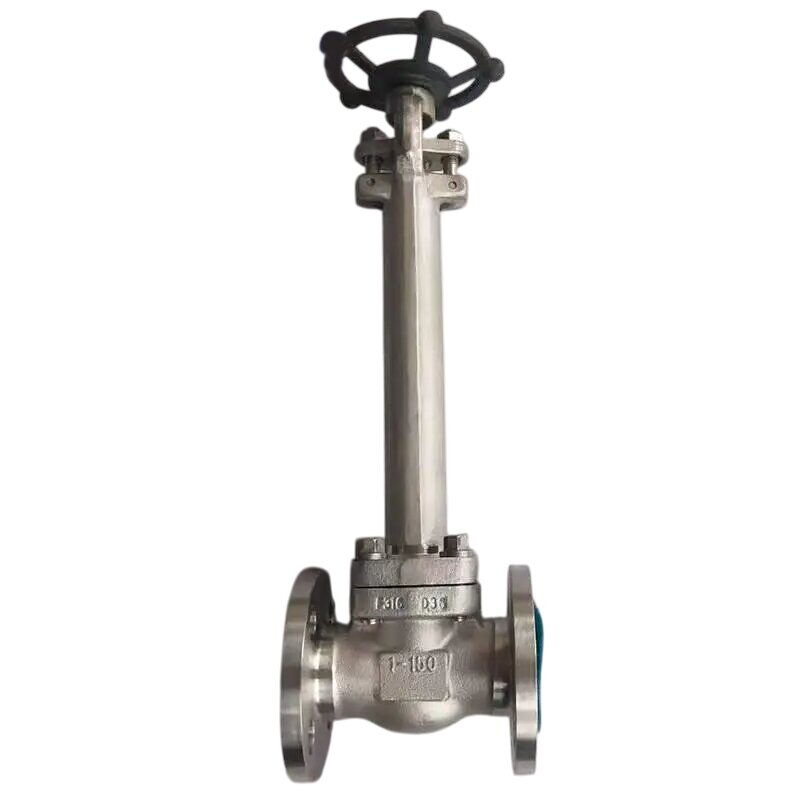

This ASTM A182 F316 Cryogenic Gate Valve is designed to BS 6364 and API 602 standards, featuring a forged stainless steel body for strength and corrosion resistance in extreme low-temperature environments. Sized at 1 inch and rated for Pressure Class 150 LB, it includes OS&Y (Outside Screw & Yoke) for precise operation and low leakage, ensuring reliable performance in cryogenic systems. The valve is equipped with raised face (RF) ends for easy installation and secure, leak-proof connections.
- Model no.: MV-20250412-CGTV-01
- Hits: 0
- Categories: Cryogenic Gate Valve
- Tags: Cryogenic Gate Valve, ASTM A182 F316 Gate Valve, BS 6364 Gate Valve
Detail Information
Product Name: ASTM A182 F316 Cryogenic Gate Valve, Outside Screw & Yoke (OS&Y)
Design Standard: BS 6364, API 602
Body Material: ASTM A182 F316
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
End: RF Flanged
Operation: Handwheel
Product Range
Nominal Diameter: 1/2-2 Inch
Nominal Pressure: Class 150-2500 LB
Inspection & Testing Standard: API 598
Face-to-Face Dimension Standard: ASME B16.10
Design & Manufacturing Standards: BS 6364, API 602, ASME B16.34
Body Material: ASTM A105N, A350 LF2, LF3, A182 F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S, Incoloy 800H, Incoloy 600, Incoloy 625 and other special alloys
Cryogenic Performance: Certified to ISO 15848-1, successfully tested at Class 1500 LB and -196°C
Sealing & Gaskets
Packing: Inconel-reinforced packing
Flange Seal Gasket: TA-Luft certified gasket
Fully degreased and oil-free treatment for installation
Gate Valve, Class 1500 LB, -196°C, ISO 15848-1 Type Test TUV SÜD Certification
