(API 624 Additional High Temperature Version)
Key Specifications / Features

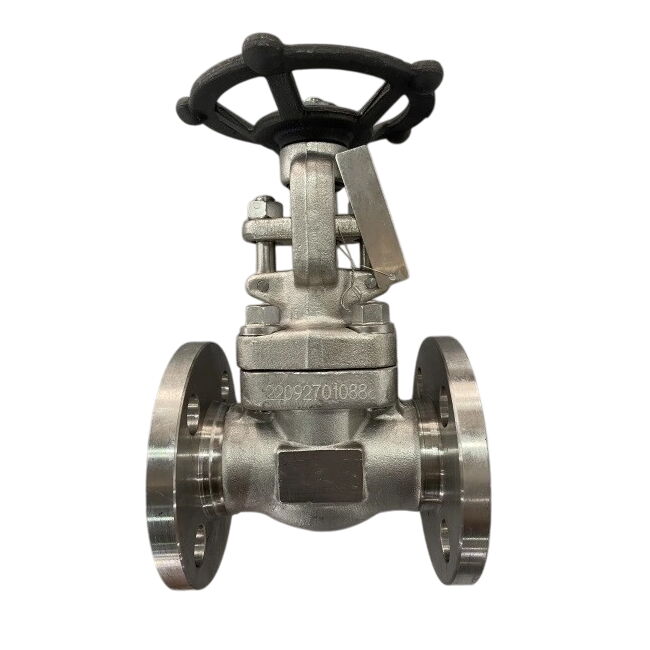

The Integral Flanged Gate Valve from the API 602 Gate Valve Plant is a high-performance valve designed for industrial applications. It features an ASTM A182 F304 body, ensuring excellent corrosion resistance and durability. The valve has a rising stem and bolted bonnet design, providing reliable operation and easy maintenance. It has a 1-inch diameter (DN25) and a pressure rating of Class 150 LB. The valve is designed for low fugitive emissions, ensuring environmental compliance and safety.
- Model no.: MV-20250609-FSGTV-01
- Hits: 0
- Categories: Forged Steel Gate Valve
- Tags: Integral Flanged Gate Valve, ASTM A182 F304 Gate Valve, 1 Inch Gate Valve
Detail Information
Product Name: Integral Flanged Gate Valve, Rising Stem, Bolted Bonnet
Design Standard: API 602
Body Material: ASTM A182 F304
Size: 1 Inch, DN25
Pressure: Class 150 LB, PN20
Operation: Handwheel
End Connection: RF
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304, F316, F11, F22, F91, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
End Connection: SW, BW, RF, RTJ, NPT
Pressure Range: Class 150-800 LB, PN16-PN130
Temperature Range: -29°C to 300°C
Medium: Water, Oil, Steam, Gas, etc.
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
