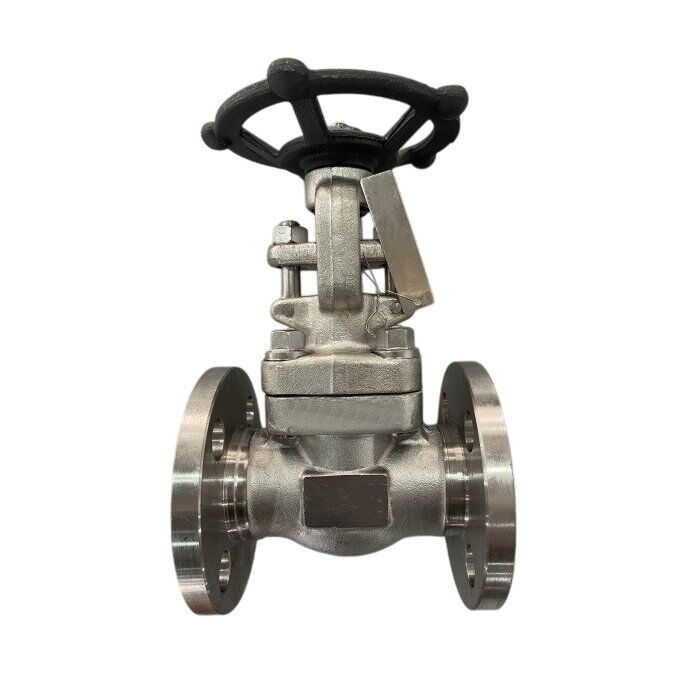

ASTM A182 F304 Gate Valve, API 602, 1-1/2 Inch, 150 LB, OS&Y

Product Name: ASTM A182 F304 Gate Valve
Design Standard: API 602
Body Material: ASTM A182 F304
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
End: Flanged
Operation: Handwheel
Features: Outside Screw & Yoke (OS&Y), Solid Wedge, Renewable Seat

Product Range

Size: NPS 1/2-6 Inch (DN15-DN150)
Pressure Rating: Class 150-2500 LB, PN20-PN420
Bonnet Type: Bolted Bonnet (BB), Welded Bonnet (WB)
Body Material: ASTM A105, A350 LF2, A182 F11, F22, F91, F304/304L, F316/316L, F321, F347, F51, Monel, Inconel, etc.

Applicable Standards

Design: API 602, ISO 15761, ASME B16.34
Inspection & Testing: API 598
Marking: MSS SP-25
P/T Rating: ASME B16.34
Fugitive Emission: API 624, ISO 15848
Face to Face: ASME B16.10
End to End: Manufacturer Standard or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged: ASME B16.5
Butt Welding: ASME B16.25

The packing used in forged valves is the M800 series graphite packing,

with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.

The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.

The static leakage rate is below 6 PPM.



All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.









                                    Type Test Report for 2-Inch Gate Valve

                                    According to ISO 15848-1 at 400°C





















                                    Type Test Report for 1-Inch Globe Valve

                                    According to ISO 15848-1 at 400°C



















                                    Type Test Report for 3/4-Inch Gate Valve

                                    According to ISO 15848-1 at 400°C
