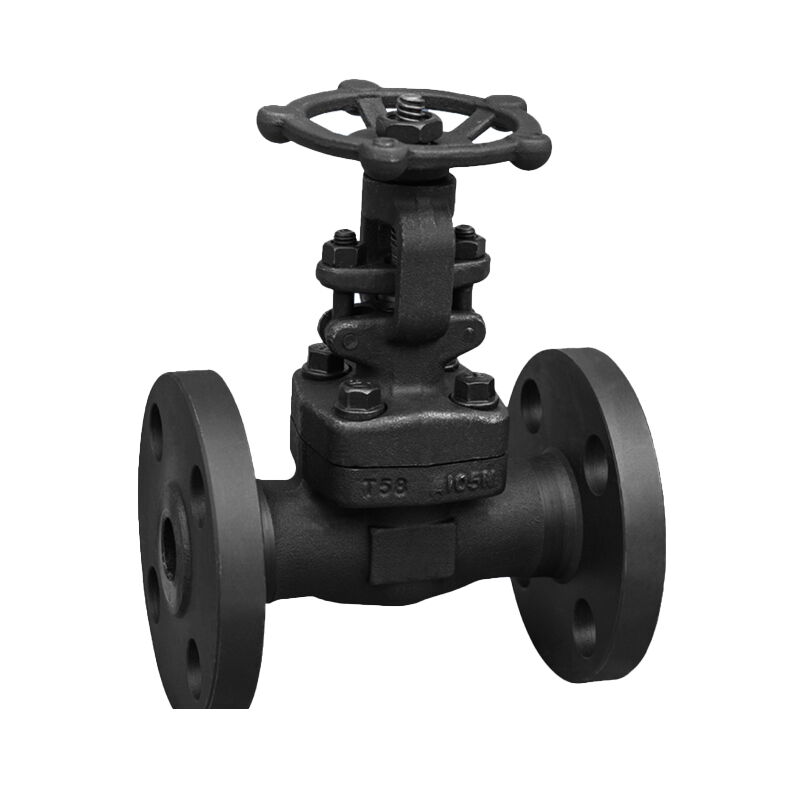

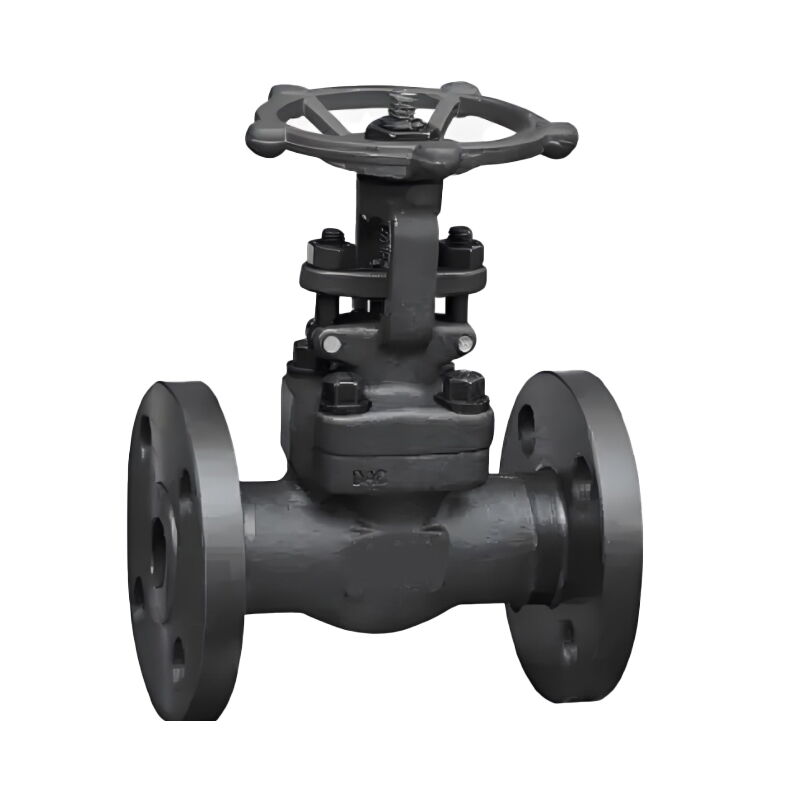

Integral Flanged Gate Valves, API 602, 3/8-2 IN, 150-2500 LB

Product Name: Integral Flanged Gate Valves
Size Range: DN10-DN50, 3/8-2 Inch
Pressure Range: PN16-PN320, Class 150-2500 LB
Body Material: ASTM A105, A182 F11, F5, F304, F304L, F316, F316L
End Connetion: Flanged (RF, FF, RTJ)
Working Temperature: -29°C to 425°C (Carbon Steel); -29°C to 500°C (Stainless Steel)
Standards:
Design Standards: JB/T 7746, API 602
Structure Length: JB/T 7746, Factory Standard
Threaded / Bolted: JB/T 1751/GB 7306, ANSI B16.11/B2.1
Test Inspection: JB/T 9092, API 598
Pressure-Temperature: GB/T 9131, ANSI B16.34
Marking: GB/T 12220, MSS SP-25

Forged steel gate valves are gate valves (valve plates) that move vertically along the centerline of the pipeline. Forged steel gate valves are mainly used for cutting off. Forged steel gate valves are a widely used type of valve, generally used for cutting devices with a diameter DN ≤ 50. Forged steel gate valves are relatively common.

Low fluid resistance.

Small external force required for opening and closing.

The direction of the medium flow is not limited.

When fully open, the impact of the working medium on the sealing surface is smaller than that of a globe valve.

Simple shape, good casting process.

The external dimensions and height are relatively large, requiring more installation space.

During the opening and closing process, there is relative friction between the sealing surfaces, which can easily cause wear.

Forged steel gate valves generally have two sealing surfaces, which adds some difficulty to machining, grinding, and maintenance.

As a type of valve, all valves made by forging steel materials are collectively referred to as forged steel valves. The materials for steel parts are ASTM A105, A182 F11, F5, 304, 304L, 316, 316L, etc. The commonly used forged steel gate valves in China usually refer to small diameter forged steel gate valves, with a size range: DN10-DN50; pressure range: national standard PN16-PN320, American standard: Class 150-2500 LB, which can be produced according to American or national standard sizes, and manufacturers generally have stock supplies. Forged steel gate valves with a diameter exceeding DN50 need to be customized, and there is less demand domestically.

Forged steel gate valves are suitable for Class 150-2500 LB, working temperature -29°C to 425°C (carbon steel) or -29°C to 500°C (stainless steel) small diameter pipelines, used as an intermediary in cutting or connecting pipelines. They are widely used in oil pipelines.
