(API 624 Additional High Temperature Version)
Key Specifications / Features

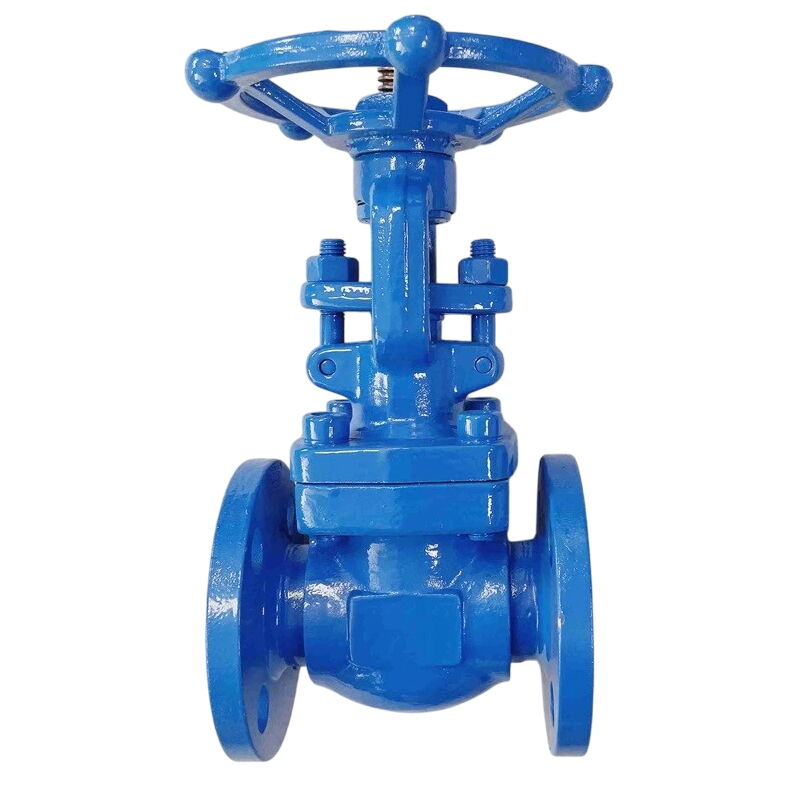

The Forged Carbon Steel Gate Valve Manufacturer produces a reliable API 602 gate valve made from ASTM A105N carbon steel, offering durability and strength. This 3/4 inch (DN20) valve features a Class 150 LB rating, ensuring it can handle moderate-pressure applications. It is designed with a low leakage rate, making it suitable for applications where minimal fluid loss is critical. The valve has a bolted bonnet and OS&Y (Outside Screw and Yoke) mechanism for easy stem inspection and maintenance. It also features RF (Raised Face) flanged ends for secure and leak-free connections.
- Model no.: MV-20250607-FSGTV-04
- Hits: 0
- Categories: Forged Steel Gate Valve
- Tags: 3/4 Inch Gate Valve, ASTM A105N Gate Valve, API 602 Gate Valve
Detail Information
Product Name: Forged Carbon Steel Gate Valves, Bolted Bonnet, OS&Y
Design Standard: API 602
Body Material: ASTM A105N
Size: 3/4 Inch, DN20
Pressure: Class 150 LB, PN20
Operation: Manual
End Connection: RF Flanged
Standards:
Face to Face: ASME B16.10
Test & Inspection: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon, Stainless, Alloy Steel
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch
End Connection: Flanged, Welded (SW, BW), NPT
Pressure Range: Class 150-2500 LB
Temperature Range: -29°C to 425°C
Application: Water, Steam, Gas, ect.
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
