(API 624 Additional High Temperature Version)
Key Specifications / Features

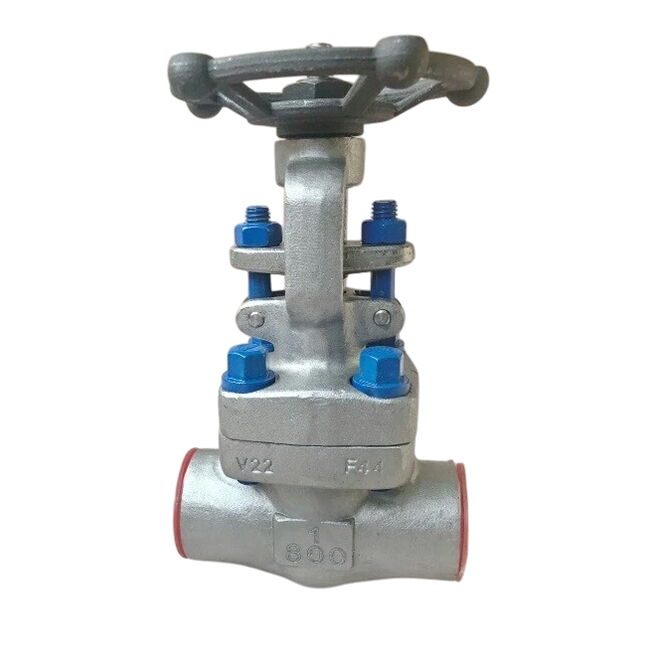

The API 602 Forged Gate Valves Supplier offers a high-performance gate valve made from ASTM A182 F44 stainless steel, ensuring durability and corrosion resistance. This 1-inch valve features a Class 800 LB rating, making it suitable for high-pressure applications. It is designed for low emissions, with a bolted bonnet and OS&Y (Outside Screw and Yoke) mechanism for easy operation and maintenance. The valve is equipped with socket weld (SW) ends for secure connections and is operated by a handwheel.
- Model no.: MV-20250607-FSGTV-03
- Hits: 0
- Categories: Forged Steel Gate Valve
- Tags: 1 Inch Gate Valve, ASTM A182 F44 Gate Valve, Bolted Bonnet Gate Valve
Detail Information
Product Name: ASTM A182 F44 Gate Valve, Bolted Bonnet, OS&Y
Design Standard: API 602
Body Material: ASTM A182 F44
Size: 1 Inch, DN25
Pressure: Class 800 LB, PN130
Operation: Handwheel
End Connection: Socket Weld
Standards:
Face to Face: ASME B16.10
Test & Inspection: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon, Stainless, Alloy Steel
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch
End Connection: Flanged, Welded (SW, BW), NPT
Pressure Range: Class 150-2500 LB
Temperature Range: -29°C to 300°C
Application: Water, Steam, Gas, ect.
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
Similar Products

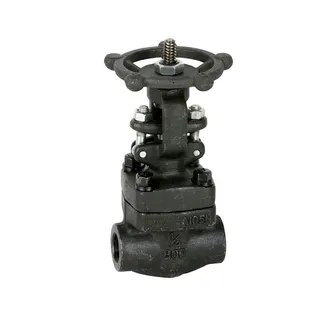

ASTM A182 F44 Gate Valve, API 602, 1/2 Inch, CL800, SW, OS&Y
