Key Specifications / Features
The China M600S Graphite Packing Manufacturer specializes in producing high-quality die-formed graphite rings specifically designed for cryogenic valves. These packing solutions are engineered to meet the stringent requirements of ISO 15848-1 and API 622 standards, ensuring exceptional performance and reliability. Capable of withstanding pressures up to 310 bar (4500 PSI), they provide robust sealing even in extremely low-temperature environments. This makes them ideal for applications where cryogenic conditions demand superior sealing and safety.
- Model no.: MV-20250520-GP-04
- Hits: 2
- Categories: Graphite Packing
- Tags: Graphite Packing, ISO 15848-1 Valve Packing, Cryogenic Valve Packing
Detail Information

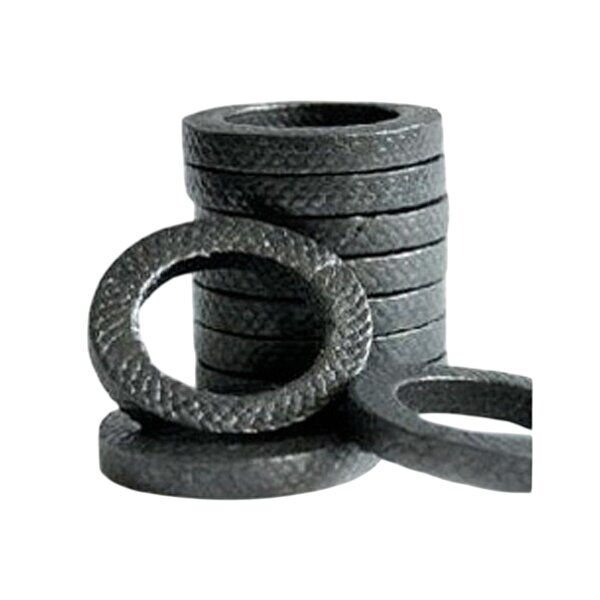

Product Name: M600S Graphite Packing
The M600S packing is packing with a full packing structure designed for cryogenic valves, offering excellent resistance to negative pressure contraction at low temperatures.
Structure: The middle part of the sealing ring is made of high-purity die-formed graphite. The end ring uses the M602 die-formed packing.
Temperature Range: -200°C to +450°C in Air, +450°C in Steam
PH Range: 0-14 (excluding strong oxidizing agents)
Pressure: Up to 4,500 PSI (310 bar)
Application: Large-sized Quarter-turn and Linear Motion Valves
Certifications: API 622, ISO 15848-1

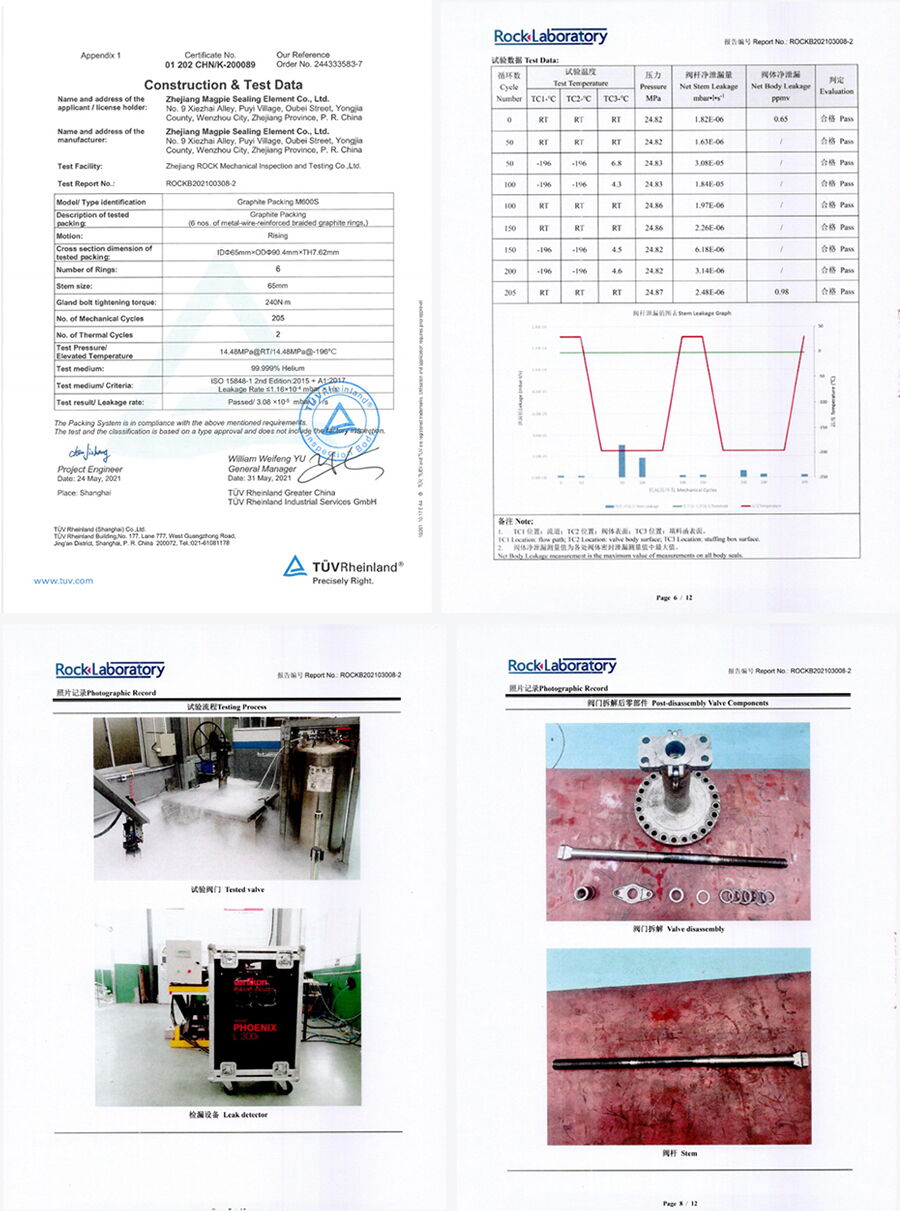

12-inch Low-temperature Gate Valve, Class 1500 LB, -196°C
ISO 15848-1 TÜV Rheinland Certification

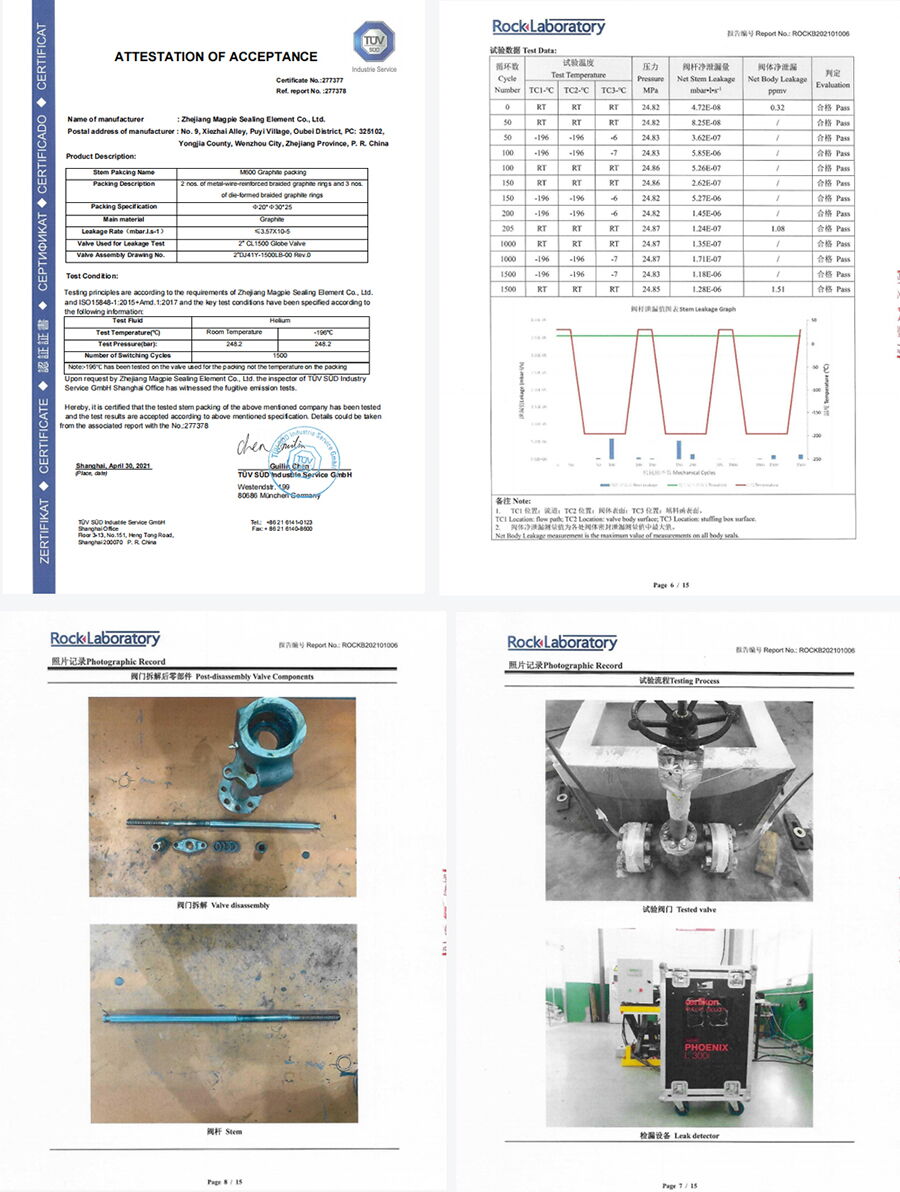

2-inch Low-temperature Gate Valve, Class 1500 LB, -196°C
ISO 15848-1 TÜV SÜD Certification
Promotion Conference on Low-Leakage Graphite Packing Technology
The Demonstration of Low-emission Graphite Packing
We conduct life testing experiments on graphite packing in our factory
The ISO 15848-1 test of graphite packing at 400°C was conducted by a third-party testing institution
The promotion of our sealing products at the Valve Technology Forum
