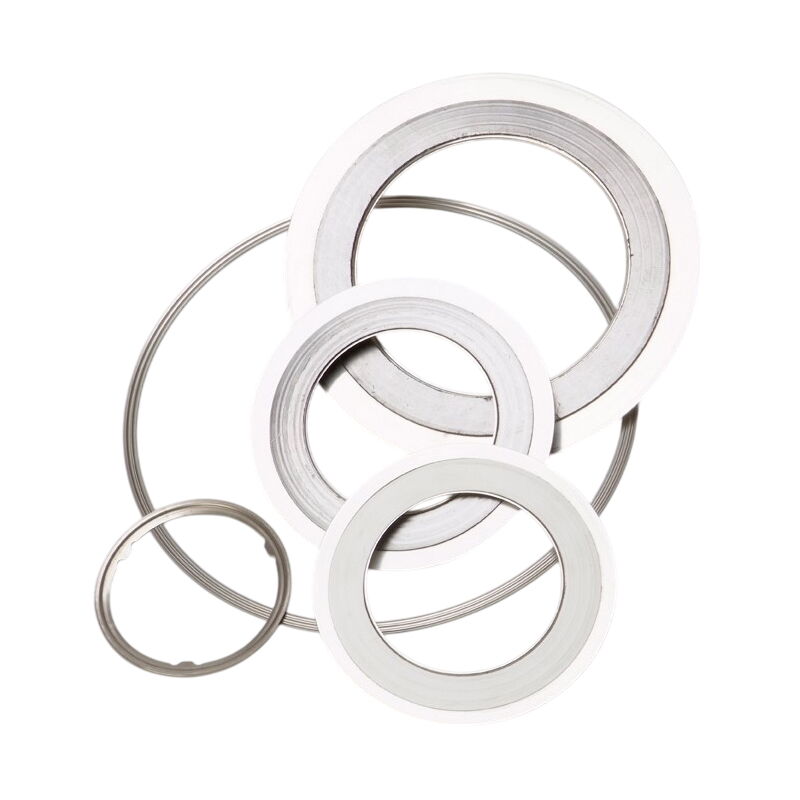

Stainless Steel Flange Gasket, Flexible Graphite, 2-10 Inch
Key Specifications / Features
The Stainless Steel Flange Gasket Factory specializes in producing ANSI B16.5 spiral wound gaskets with a stainless steel core and flexible graphite facing. These gaskets are designed for flange applications, offering sizes from 2 to 10 inches and are rated for Class 150/300 LB. They provide excellent sealing performance and durability, ensuring reliable connections in industrial piping systems.
- Model No.: MV-20251028-GG-01
- Hits: 53
- Categories: Graphite Gasket
- Tags: Flexible Graphite Gasket, Stainless Steel Gasket, Spiral Wound Gasket
Detail Information
Product Name: Stainless Steel Flange Gasket, Spiral Wound Gasket
Material:
Core: Stainless Steel Multi-wave Structure
Facing Material: Fire-safe Flexible Graphite
Flange Standards: ANSI B16.5
Sizes: 2-10 Inches
Pressure: Class 150 LB, Class 300 LB
Applications: Ideal for applications demanding fire-safe performance, long-term sealing resilience, and reduced maintenance in critical pipeline and flange systems.
Performance Advantages:
Ultimate sealing capability across wide operating conditions and clamp load variations
Significant reduction in required clamp load — up to 50% less compared to traditional metal seals
Improved reliability and extended service life
