Key Specifications / Features
The Metal Reinforced Graphite Sheet Plant produces high-performance sheets composed of tanged steel cores and flexible graphite layers. Designed for manufacturing high-strength gaskets, these sheets offer excellent sealing under pressures up to 4 MPa and ensure low emission performance. Ideal for demanding industrial applications, the material combines durability, flexibility, and superior thermal and chemical resistance.
- Model no.: MV-20250422-GS-01
- Hits: 0
- Categories: Graphite Sheets & Yarns
- Tags: Metal Reinforced Graphite Sheet, Flexible Graphite Sheet, Low Emission Graphite Sheet
Detail Information
Product Name: Tanged Metal Reinforced Flexible Graphite Sheet
Materials:
Metal Core: Tanged Metal Sheet
Surface Layers: Flexible Graphite
Carbon Content (Finished Product): High purity (value customizable upon request)
Tensile Strength: ≥ 4.0 MPa
Density: Adjustable based on specific application needs
Applications: Ideal for manufacturing high-strength gaskets, such as cylinder head gaskets and various industrial sealing components.

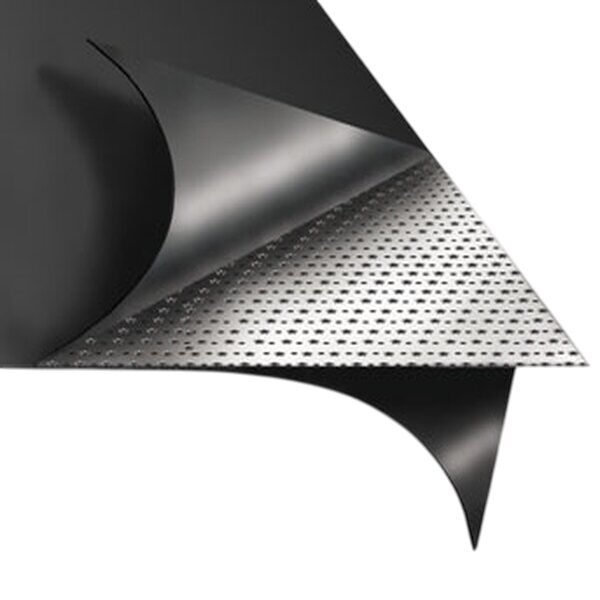

Structure:
This product consists of a tanged metal sheet, which serves as a reinforcing core.
Both sides are laminated with flexible graphite sheets characterized by low thermal weight loss.
