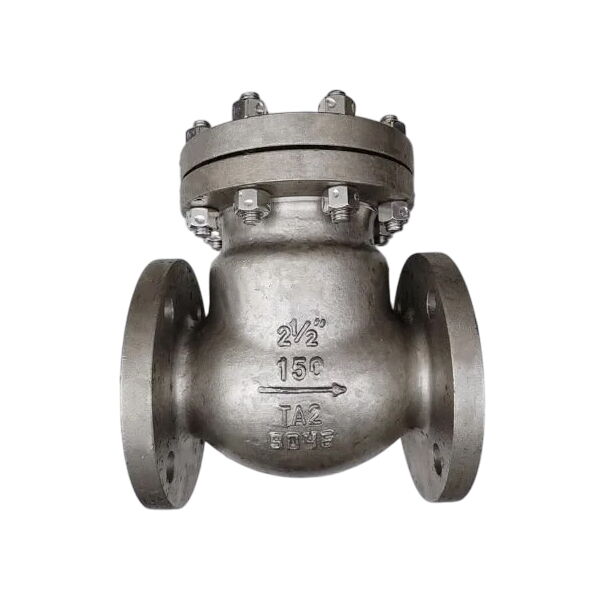

Titanium Alloy Check Valve, BS 1868, TA2, 2-1/2 Inch, CL150
(API 624 Additional High Temperature Version)
Key Specifications / Features
The China Titanium Alloy Check Valve Plant produces high-quality check valves designed in accordance with the BS 1868 standard. These valves feature a TA2 titanium alloy body, offering excellent corrosion resistance and durability. Available in a 2-1/2 inch size with a pressure class of 150 LB and a DN65 designation, they are equipped with PN20 rated RF flanged ends for secure and reliable connections. The low-emission design ensures minimal leakage, making these valves suitable for applications requiring stringent environmental and safety standards.
- Model No.: MV-20250611-CSCV-07
- Hits: 24
- Categories: Cast Steel Check Valve
- Tags: 2-1/2 Inch Check Valve, Titanium Alloy Check Valve, TA2 Check Valve
Detail Information
Product Name: Titanium Alloy Check Valve
Design Standard: BS 1868
Body Material: Titanium Alloy TA2
Size: 2-1/2 Inch, DN65
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Cast Carbon Steel, Stainless Steel, Alloy Steel, ect.
Gasket & Packing Material: Graphite/PTFE
Size Range: 2-20 Inch, DN50-DN500
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
