(API 624 Additional High Temperature Version)
Key Specifications / Features

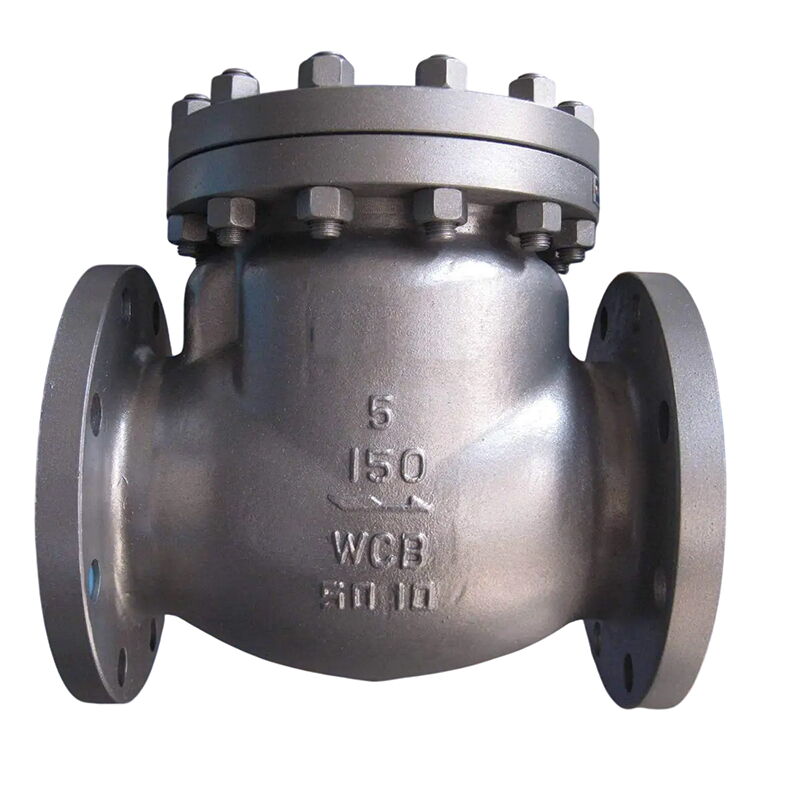

The BS 1868 Swing Check Valve is a robust industrial valve designed for reliable backflow prevention. It features a cast carbon steel body made from ASTM A216 WCB material, ensuring durability and strength. The valve has a 5-inch (DN125) size, rated at 150 LB and PN20, making it suitable for a wide range of pressure applications. It is equipped with a bolted bonnet for easy maintenance and RF flanged ends for secure and leak-free connections.
- Model no.: MV-20250611-CSCV-02
- Hits: 0
- Categories: Cast Steel Check Valve
- Tags: ASTM A216 WCB Check Valve, Swing Check Valve, BS 1868 Check Valve
Detail Information
Product Name: BS 1868 Swing Check Valves, Bolted Bonnet
Type: Swing Check Valve
Design Standard: BS 1868
Body Material: ASTM A216 WCB
Size: 5 Inch, DN125
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A216 WCB, A217 WC6, A351 CF3, CF3M, CF8, CF8M, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
