(API 624 Additional High Temperature Version)
Key Specifications / Features

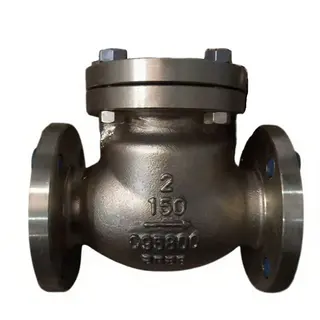

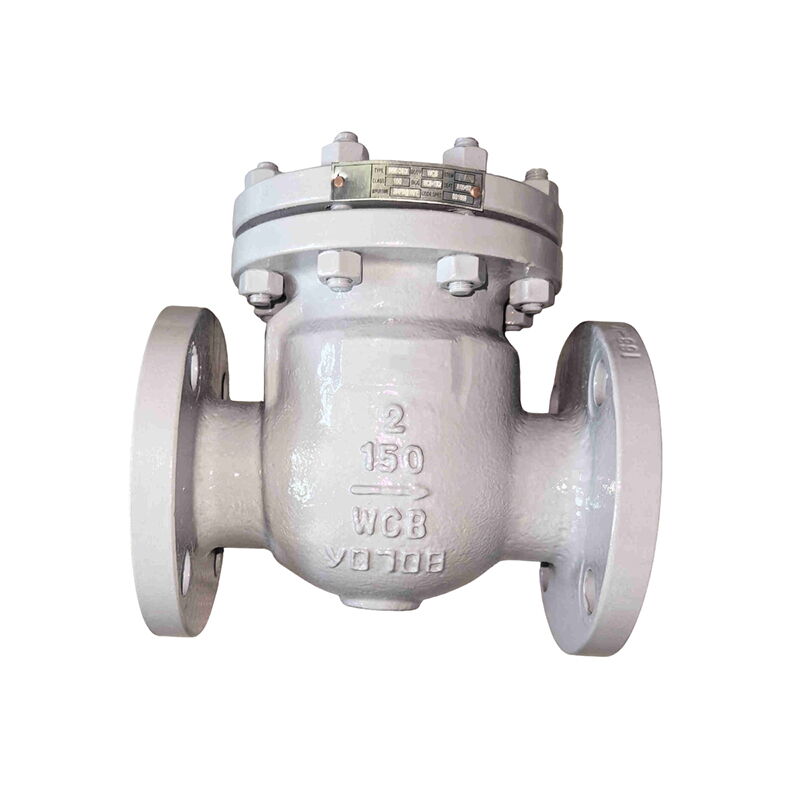

The Carbon Steel Swing Check Valve from the supplier is designed in accordance with BS 1868 and features an ASTM A216 WCB body, ensuring high durability and strength. This 2-inch valve is rated at Class 150 LB, making it suitable for a variety of industrial applications. It is designed for low emissions, contributing to environmental sustainability. The valve also features RF flanged ends and a bolted bonnet, which enhances its reliability and ease of maintenance.
- Model no.: MV-20250611-CSCV-04
- Hits: 1
- Categories: Cast Steel Check Valve
- Tags: Carbon Steel Check Valve, ASTM A216 WCB Check Valve, BS 1868 Check Valve
Detail Information
Product Name: Carbon Steel Swing Check Valve
Type: Swing Check Valve
Design Standard: BS 1868
Body Material: ASTM A216 WCB
Size: 2 Inch, DN50
Pressure: Class 150 LB, PN20
End Connection: RF Flanged
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Cast Carbon Steel, Stainless Steel, Alloy Steel, ect.
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, Flanged (RF, RTJ)
Temperature Range: -29°C to 429°C
Medium: Water, Oil & Gas
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
