(API 624 Additional High Temperature Version)
Key Specifications / Features

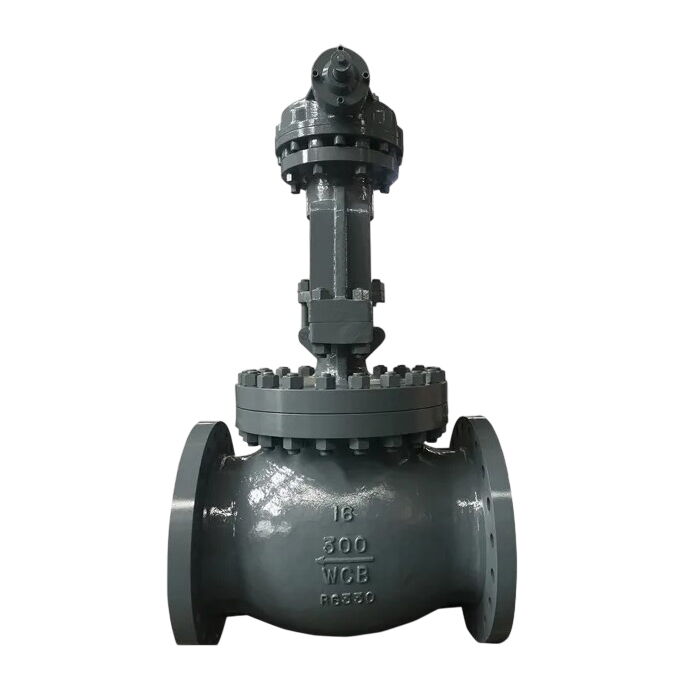

The API 623 Globe Valve Plant in China offers high-quality 16-inch (DN400) globe valves designed to meet stringent industry standards. These valves are manufactured from cast carbon steel (ASTM A216 WCB) and adhere to BS 1873 specifications. They feature a robust bevel gear mechanism for reliable operation and are rated for Class 300 LB and PN50 pressure classes. The valves have raised face (RF) ends and metal-seated construction, ensuring durability and performance in demanding industrial applications.
- Model No.: MV-20250620-CSGLV-01
- Hits: 4
- Categories: Cast Steel Globe Valve
- Tags: API 623 Globe Valve, ASTM A216 WCB Globe Valve, 16 Inch Globe Valve
Detail Information
Product Name: API 623 Globe Valve, Metal Seated
Design Standard: BS 1873, API 623
Body Material: ASTM A216 WCB
Size: 16 Inch, DN400
Pressure: Class 300 LB, PN50
Operation: Bevel Gear
End Connection: RF Flanged
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A216 WCB, WCC, A217 WC6, WC9, A351 CF3, CF8, A352 LCB, LCC, etc
Gasket & Packing Material: Graphite, PTFE
Size Range: 2-24 Inch, DN50-DN600
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: BW, RF, FF, RTJ
Temperature Range: -29°C to 550°C
Medium: Water, Oil, Gas, Steam, etc
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
