(API 624 Additional High Temperature Version)
Key Specifications / Features

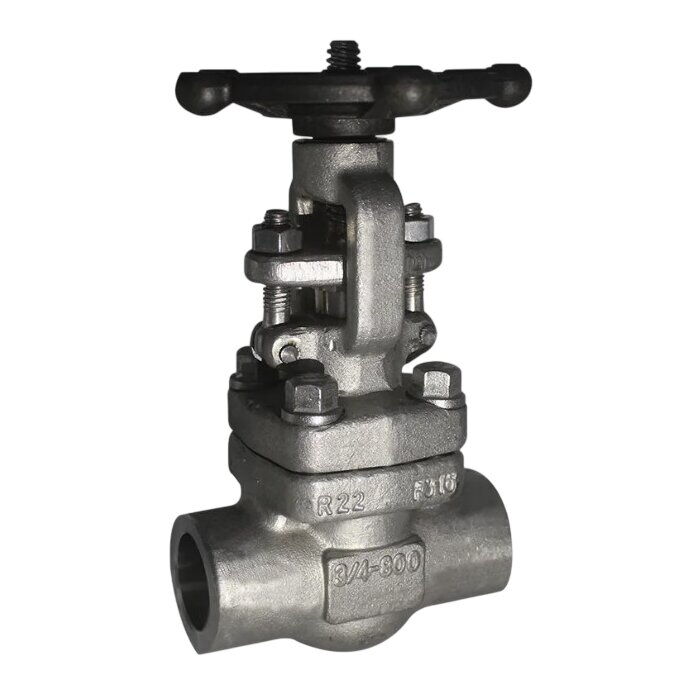

The ASTM A182 F316 Gate Valve is made from forged stainless steel, designed for high-performance applications. With a 3/4-inch size and Class 800 LB rating, this valve complies with API 602 standards. It features low leakage, outside screw and yoke construction, and a bolted bonnet for secure and reliable sealing. The SW (socket weld) ends ensure easy installation, making it ideal for applications requiring durable, high-pressure flow control with minimal leakage.
- Model no.: MV-20250408-FSGTV-01
- Hits: 1
- Categories: Forged Steel Gate Valve
- Tags: API 602 Gate Valve, ASTM A182 F316 Gate Valve, 3/4 Inch Gate Valve
Detail Information
Product Name: ASTM A182 F316 Gate Valve, Bolted Bonnet
Design Standard: API 602
Body Material: ASTM A182 F316
Size: 3/4 Inch, DN20
Pressure: Class 800 LB, PN130
End: SW
Operation: Handwheel
Features: Outside Screw & Yoke (OS&Y)
Product Range
Size: NPS 1/2-6 Inch (DN15-DN150)
Pressure Rating: Class 150-2500 LB, PN20-PN420
Bonnet Type: Bolted Bonnet (BB), Welded Bonnet (WB)
Body Material: ASTM A105, A350 LF2, A182 F11, F22, F91, F304/304L, F316/316L, F321, F347, F51, Monel, Inconel, etc.
Applicable Standards
Design: API 602, ISO 15761, ASME B16.34, BS 5352
Inspection & Testing: API 598
Marking: MSS SP-25
P/T Rating: ASME B16.34
Fugitive Emission: API 624, ISO 15848
Face to Face: ASME B16.10
End to End: Manufacturer Standard or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged: ASME B16.5
Butt Welding: ASME B16.25
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
