(API 624 Additional High Temperature Version)
Key Specifications / Features

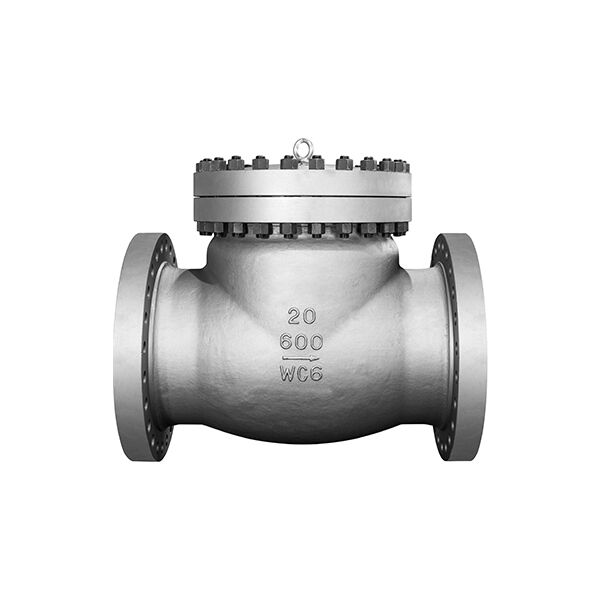

This ASTM A217 WC6 Check Valve is manufactured in compliance with API 6D and BS 1868 standards, offering robust backflow prevention for high-pressure systems. Constructed from alloy steel for excellent heat and pressure resistance, it features a 20-inch (DN500) size, Class 600 LB (PN100) rating, and a swing disc design for reliable one-way flow. The valve includes a bolted bonnet for secure sealing, low emission performance, and raised face (RF) ends for strong, leak-tight connections in power, oil, and gas applications.
- Model no.: MV-20250412-CSCV-01
- Hits: 0
- Categories: Cast Steel Check Valve
- Tags: BS 1868 Check Valve, API 6D Check Valve, ASTM A217 WC6 Check Valve
Detail Information
Product Name: ASTM A217 WC6 Check Valve
Features: Swing Disc, Bolted Bonnet
Design Standard: API 6D, BS 1868
Body Material: ASTM A217 WC6
Size: 20 Inch, DN500
Pressure: Class 600 LB, PN100
End Connection: RF Flanged
Product Range
Size: 1/2-12 Inch, DN15-DN300
Working Pressure: Class 150-900 LB, PN20-PN150
Material: ASTM A216 WCB/WCC, A217 WC6/WC9, A351 CF3/CF3M, CF8/CF8M
Design Standards: API 6D, BS 1868
Pressure & Temperature Standard: ASME B16.34
Flange Standard: ASME B16.5
Face to Face Standard: ASME B16.10
Testing Standard: API 598
Working Temperature: -20°C to 180°C
Industries: Petroleum, Chemical, Natural Gas, Biochemical, Pharmaceutical, etc.
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
