(API 624 Additional High Temperature Version)
Key Specifications / Features

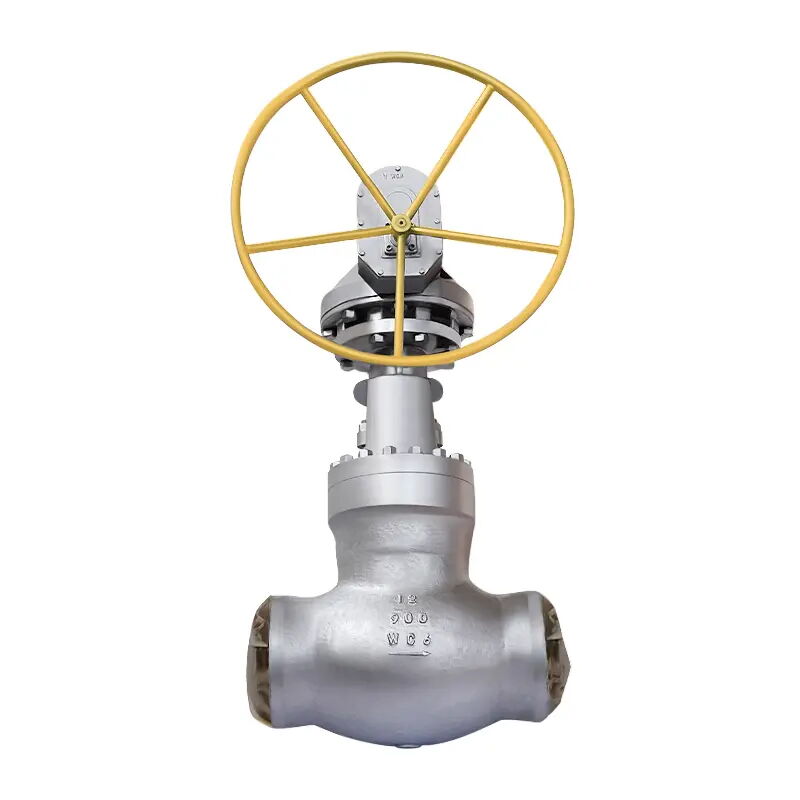

The China ASTM A217 WC6 Globe Valve is designed for high-pressure applications, offering a pressure seal bonnet for enhanced sealing performance. Manufactured to ASME B16.34 standards, it features a 12-inch size (DN300), Class 900 LB pressure rating, and PN150. Equipped with low leakage performance and Raised Face (RF) flanged ends, this valve ensures reliable operation and secure sealing in demanding environments.
- Model no.: MV-20250409-CSGLV-01
- Hits: 1
- Categories: Cast Steel Globe Valve
- Tags: ASME B16.34 Globe Valve, ASTM A217 WC6 Globe Valve, Pressure Seal Bonnet Globe Valve
Detail Information
Product Name: Pressure Seal Bonnet Globe Valve
Design Standard: ASME B16.34
Body Material: ASTM A217 WC6
Size: 12 Inch, DN300
Pressure: Class 900 LB, PN150
End: RF Flanged
Operation: Handwheel
Product Range
Material: ASTM A216 WCB, A217 WC6, A351 CF8, CF8M, CF3, CF3M
Size: 2-20 Inch, DN50–DN500
Working Pressure: Class 900-2500 LB, PN150-PN420
Working Temperature: -20°C to 425°C
Standard
Design: ASME B16.34
Face to Face: ASME B16.10, BS EN 558
Testing: API 598, BS EN 12266
Flange: ASME B16.5
Socket Weld: ASME B16.11
Butt Weld: ASME B16.25
The packing used in cast steel valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT
ISO 15848-1 Valve Tested Case Example: NPS4 Class 300 Valve
4-inch 300 LB Globe Valve: ISO 15848-1 Test at Ambient Temperature for 205 Cycles, High Leakage Rate of 1.8×10−7, Maximum Body Leakage at 11.6 PPMV
API 624 Valve Test Case 1: 12-inch 150 LB Gate Valve
12-inch 150 LB Gate Valve
API 624 Test
Maximum Packing Leakage: 46.7 PPMv
API 624 Valve Test Case 2： 12-inch 600 LB Gate Valve
12-inch 600 LB Gate Valve
API 624 Testing
Maximum packing leakage: 32 ppmv
Fire Test Certification of Valve Packing
Fire Test Report and Certification for 4-inch Gate Valve with M800 Packing
ISO 15848-1 Valve Tested Case Example: NPS12 Class 300 Valve
12-inch 300 LB Gate Valve
ISO 15848-1 Test at Ambient Temperature for 205 Cycles
High Leakage Rate: 1.6×10−6
Maximum Body Leakage: 7.7 PPMV
The API 624 test for the API 600 WCB 12-inch 150 LB gate valve utilized an M600 low-emission graphite packing set.
The ISO 15848-2 Type A test for the API 600 WCB 2-inch 150 LB gate valve, which requires emissions below 50 PPMV, was conducted using an M600 low-emission graphite packing set.
