(API 624 Additional High Temperature Version)
Key Specifications / Features

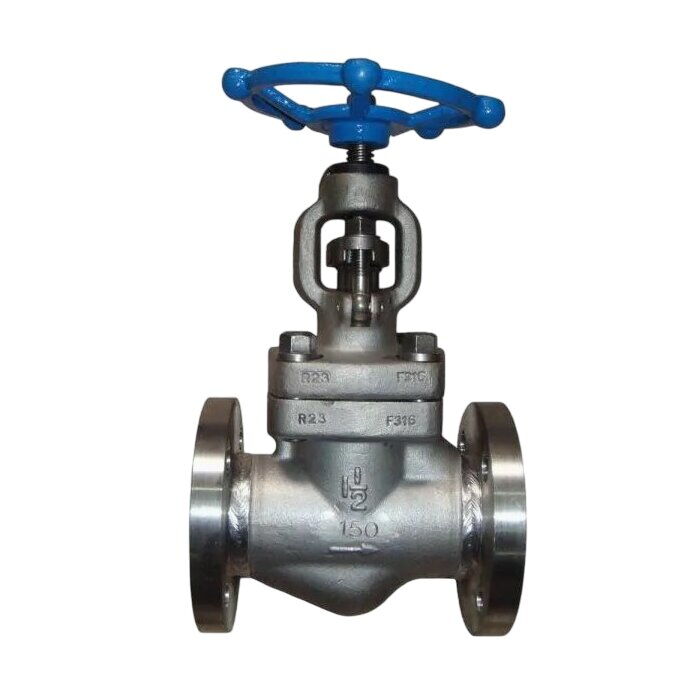

The ASTM A182 F316 Globe Valve is a high-performance forged stainless steel valve. With a 1-1/2 inch size (DN40), Class 150 LB pressure rating, and PN20 compatibility, it offers superior durability and corrosion resistance. Featuring low leakage, an OS&Y (Outside Stem and Yoke) design, and a bolted bonnet, this valve ensures secure sealing and long-lasting performance. Its flanged connections meet ASME B16.34 standards, making it an ideal choice for controlling fluid flow in demanding environments.
- Model no.: MV-20250403-FSGLV-01
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: ASME B16.34 Globe Valve, ASTM A182 F316 Globe Valve, 1-1/2 Inch Globe Valve
Detail Information
Product Name: ASTM A182 F316 Globe Valve
Design Standard: ASME B16.34
Body Material: ASTM A182 F316
Size: 1-1/2 Inch, DN40
Pressure: Class 150 LB, PN20
End: Flanged
Operation: Handwheel
Features: Outside Screw & Yoke (OS&Y), Bolted Bonnet
Product Range
Size Range: NPS 1/2-6 Inch, DN15-DN150
Pressure Range: Class 150-4500 LB
Body Material: ASTM A105, A105N, A350 LF2, A182 F11, F22, F91, F304/304L, F316/316L, F321, F347, F51, Monel, Inconel etc.
Product Structure: Bolted Bonnet (BB), Welded Bonnet (WB), Pressure Seal Bonnet (PSB)
Applicable Standards
Design: API 602, ISO 15761, ASME B16.34
Inspection & Testing: API 598
Marking: MSS SP-25
P/T Rating: ASME B16.34
Face to Face: ASME B16.10
End to End: Manufacturer Std or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged: ASME B16.5
Butt Welding: ASME B16.25
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
