(API 624 Additional High Temperature Version)
Key Specifications / Features
The China Bellows Sealed Globe Valves Supplier offers high-quality valves that meet API 602 and ASTM A105N standards, ensuring reliability and durability. These forged carbon steel valves are designed for low emission, enhancing safety and environmental compliance. With a 1/2 inch size and a Class 150 LB rating, they are suitable for a variety of applications. The valves feature socket weld ends for secure connections and are operated by a handwheel for easy control.
- Model no.: MV-20250610-FSGLV-09
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: ASTM A105N Globe Valve, Bellows Sealed Globe Valve, 1/2 Inch Globe Valve
Detail Information

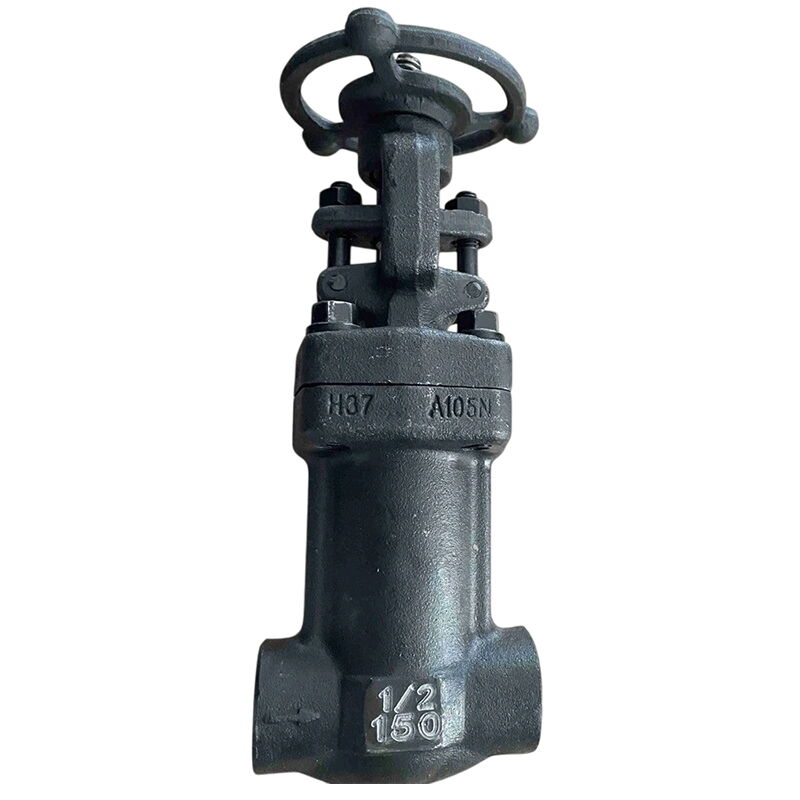

Product Name: Bellows Sealed Globe Valves
Design Standard: API 602
Body Material: ASTM A105N
Size: 1/2 Inch, DN15
Pressure: Class 150 LB, PN20
Operation: Rising Stem Handwheel
End Connection: Socket Weld
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, F11, F22, F91, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: SW, BW, Flanged, NPT
Temperature Range: -29°C to 426°C
Medium: Water, Oil & Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
Similar Products
API 602 Y Globe Valve, ASTM A105N, 1/2 Inch, CL800, SW, OS&Y

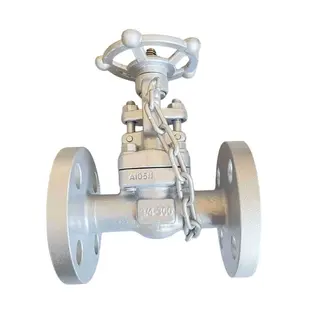

Rising Stem Globe Valve, API 602, A105N, 3/4 Inch, CL300, RF
