(API 624 Additional High Temperature Version)
Key Specifications / Features

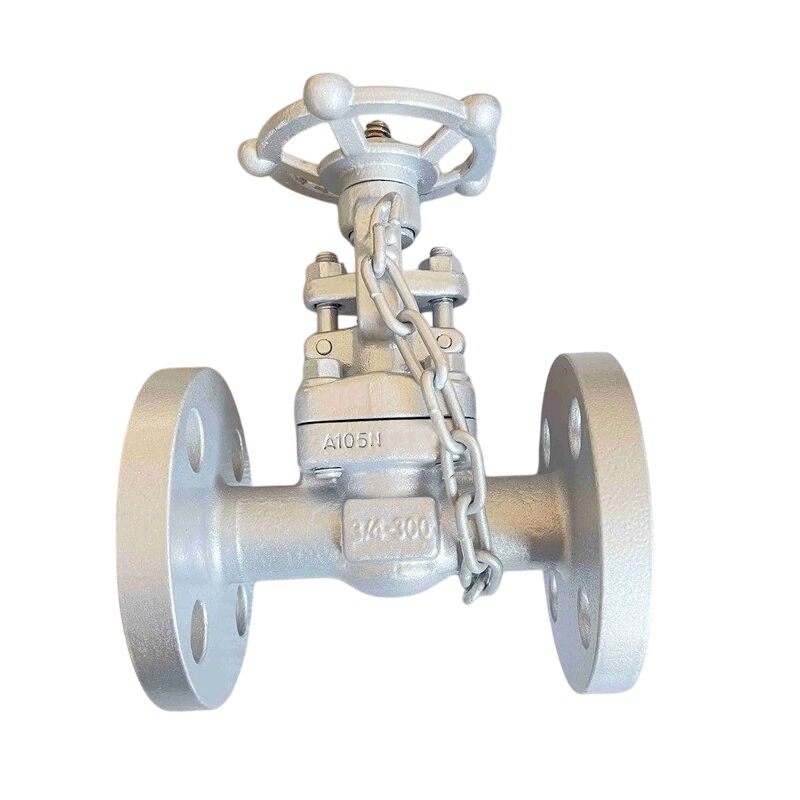

The China Rising Stem Globe Valve Plant offers a high-quality forged carbon steel globe valve with an ASTM A105N body, designed for durability and reliability. This 3/4-inch valve features a Class 300 LB rating, DN20 size, and PN50 pressure rating, making it suitable for a variety of industrial applications. It is handwheel operated for easy control and features low emission capabilities to meet environmental standards. The valve also has RF (Raised Face) ends for secure and efficient connections.
- Model no.: MV-20250610-FSGLV-01
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: ASTM A105N Globe Valve, Rising Stem Globe Valve, 3/4 Inch Globe Valve
Detail Information
Product Name: Rising Stem Globe Valve, Forged Carbon Steel
Design Standard: API 602
Body Material: ASTM A105N
Size: 3/4 Inch, DN20
Pressure: Class 300 LB, PN50
Operation: Handwheel
End Connection: RF Flanged, ASME B16.5
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: ASTM A105, A105N, ASTM A182 F304/F304L, F316/F316L, F11, F22, F91, A350 LF2, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch
End Connection: SW, BW, Flanged, NPT
Pressure Range: Class 150-2500 LB
Temperature Range: -29°C to 429°C
Medium: Oil & Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
Similar Products

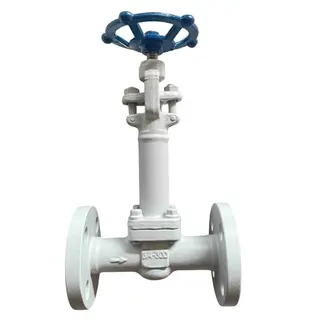

ASTM A350 LF2 Globe Valves, API 602, 3/4 Inch, CL300, BB, RF

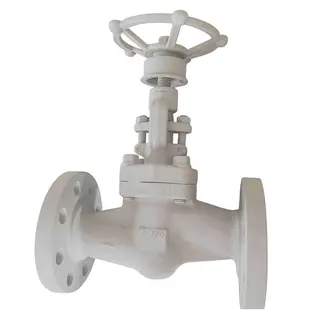

ASTM A105 Globe Valve, API 602, 2 IN, CL300, Rising Stem, RF

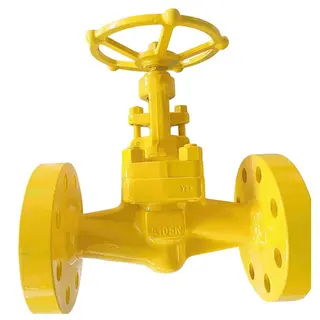

API 602 Bolted Bonnet Globe Valve, A105N, 2 Inch, 300 LB, RF
