(API 624 Additional High Temperature Version)
Key Specifications / Features

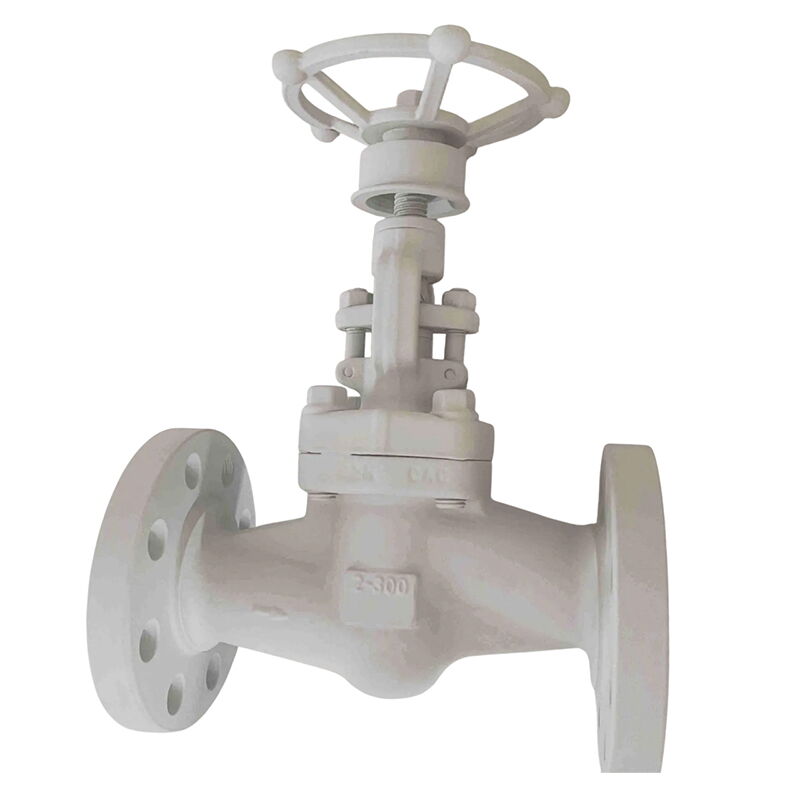

The ASTM A105 Globe Valve Manufacturer offers a rising stem globe valve designed in accordance with API 602 standards. This valve features a forged carbon steel body, ensuring durability and reliability. With a 2-inch diameter and a Class 300 LB rating, it is well-suited for high-pressure applications. The valve is designed to minimize fugitive emissions, making it environmentally friendly. It also features raised face (RF) flanged connections for secure and leak-tight installation.
- Model no.: MV-20250607-FSGLV-04
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: ASTM A105 Globe Valve, Rising Stem Globe Valve, 2 Inch Globe Valve
Detail Information
Product Name: ASTM A105 Globe Valve, Rising Stem
Design Standard: API 602
Body Material: ASTM A105
Size: 2 Inch, DN50
Pressure: Class 300 LB, PN50
Operation: Handwheel
End Connection: RF Flanged, ASME B16.5
Face to Face Standard: ASME B16.10
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon, Stainless, Alloy Steel
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch
End Connection: Welded, Flanged, Threaded
Pressure Range: Class 150-2500 LB
Temperature Range: -29°C to 429°C
Application: Water, Oil & Gas Industry
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
