(API 624 Additional High Temperature Version)
Key Specifications / Features

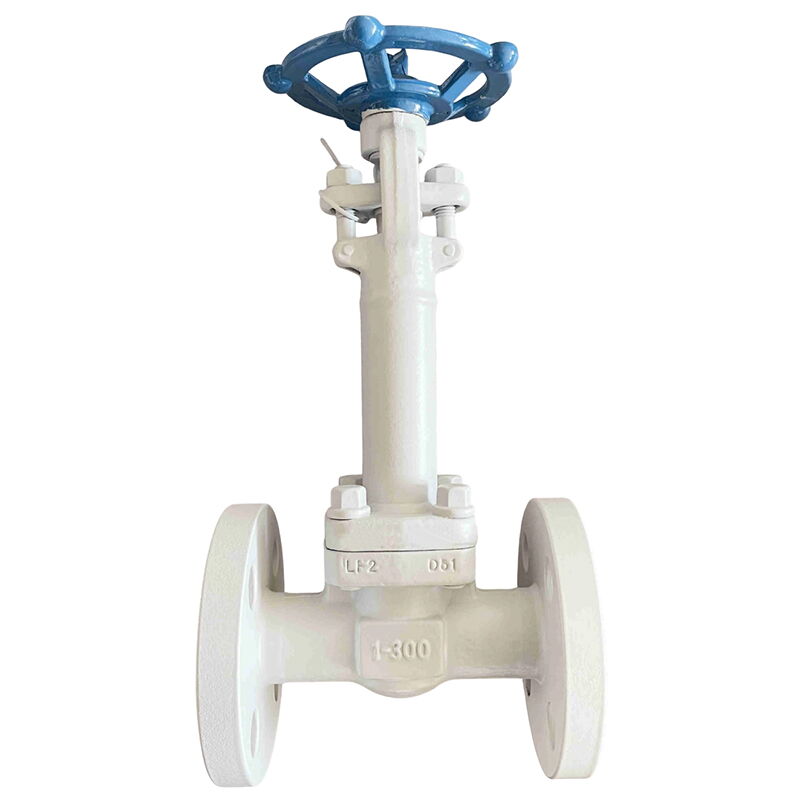

The China ASTM A350 LF2 Globe Valve Plant offers a high-quality extended stem globe valve designed for precision control and reliability. This valve features API 602 compliance, ensuring it meets stringent industry standards. It has a 1-inch (DN25) size with a Class 300 LB rating and a PN50 pressure rating, making it suitable for demanding applications. The handwheel operation provides easy control, while the RF flanged ends ensure secure connections. Additionally, it is designed for low emissions, enhancing its environmental performance and safety.
- Model no.: MV-20250610-FSGLV-05
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: ASTM A350 LF2 Globe Valve, 1 Inch Globe Valve, Extended Stem Globe Valve
Detail Information
Product Name: ASTM A350 LF2 Globe Valve, Extended Stem
Design Standard: API 602
Body Material: ASTM A350 LF2
Size: 1 Inch, DN25
Pressure: Class 300 LB, PN50
Operation: Handwheel
End Connection: RF
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon, Stainless, Alloy Steel, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Range: Class 150-2500 LB, PN16-PN420
End Connection: SW, BW, Flanged, NPT
Temperature Range: -196°C to 300°C
Medium: LNG, LPG
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
