(API 624 Additional High Temperature Version)
Key Specifications / Features

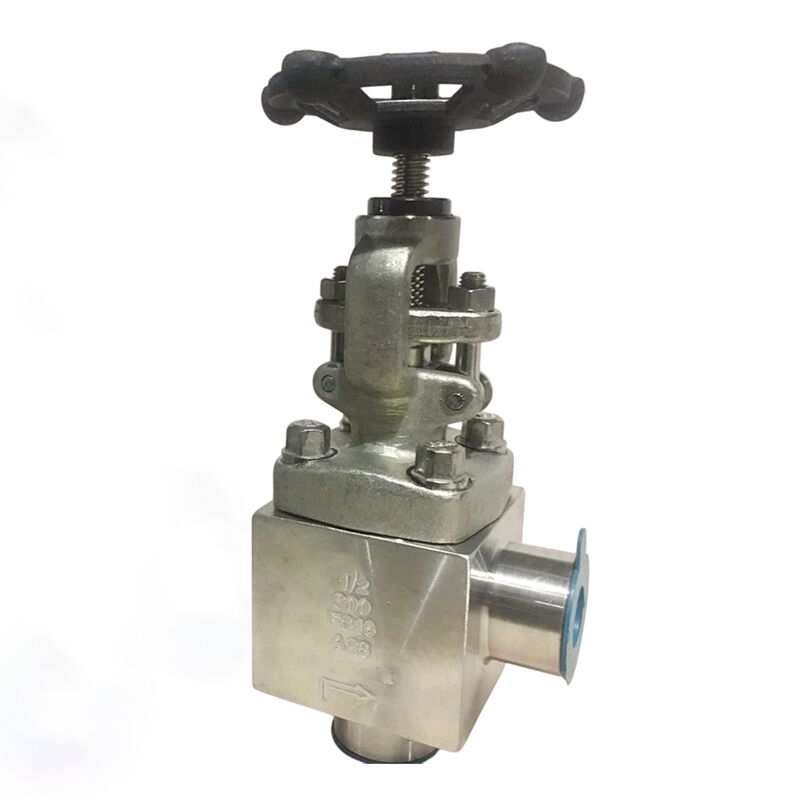

The API 602 Angle Globe Valve Manufacturer produces high-quality forged stainless steel globe valves with an ASTM A182 F316 body. These valves are designed to meet API 602 standards and feature low emission capabilities. The 1/2-inch valve has a DN15 size, Class 300 LB pressure rating, and PN50 designation, ensuring robust performance. It is equipped with socket weld ends for secure and efficient connections, making it ideal for various industrial applications.
- Model no.: MV-20250610-FSGLV-04
- Hits: 0
- Categories: Forged Steel Globe Valve
- Tags: ASTM A182 F316 Globe Valve, 1/2 Inch Globe Valve, Angle Type Globe Valve
Detail Information
Product Name: API 602 Angle Globe Valve
Type: Angle Globe Valve
Design Standard: API 602
Body Material: ASTM A182 F316
Size: 1/2 Inch, DN15
Pressure: Class 300 LB, PN50
Operation: Handwheel
End Connection: Socket Weld
Face to Face Standard: ASME B16.10, MFG
Test & Inspection Standard: API 598
Certificates: TA-Luft, ISO 15848-1, API 622, ect
Product Range
Body Materials: Forged Carbon, Stainless, Alloy Steel, etc
Gasket & Packing Material: Graphite/PTFE
Size Range: 1/2-32 Inch, DN15-DN800
End Connection: SW, BW, Flanged, NPT
Pressure Range: Class 150-2500 LB, PN16-PN420
Temperature Range: -29°C to 300°C
Medium: Oil & Gas
The packing used in forged valves is the M800 series graphite packing,
with a graphite carbon content exceeding 99% and a sulfur content below 50 PPM.
The dynamic leakage rate, as tested according to API 622, is less than 12 PPM.
The static leakage rate is below 6 PPM.
All the gaskets used are low-emission gaskets certified by TÜV Rheinland TA-LUFT.
Type Test Report for 2-Inch Gate Valve
According to ISO 15848-1 at 400°C
Type Test Report for 1-Inch Globe Valve
According to ISO 15848-1 at 400°C
Type Test Report for 3/4-Inch Gate Valve
According to ISO 15848-1 at 400°C
The 0.5-inch forged steel gate valve in accordance with API 602 is tested for an ISO 15848-2 Class A leakage rate below 50 PPMV, using the M600 model low emission packing.
The 1-inch forged steel gate valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M600 model low-emission packing.
The 1.5-inch forged steel globe valve, in accordance with API 602, is tested for an ISO 15848-2 Class A leakage rate of less than 50 PPMV, using the M800 model low-emission packing.
The API 624 test for a 2-inch forged steel gate valve in accordance with API 602 uses the M600 model low-emission packing.
