Key Specifications / Features

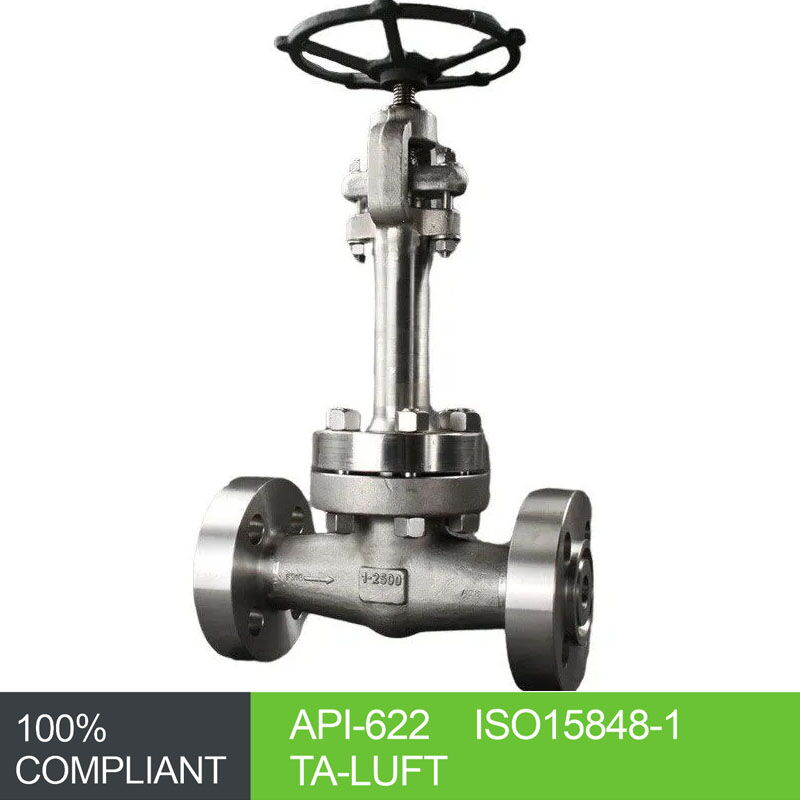

The ASTM A182 F316 Cryogenic Globe Valve is engineered for precise flow control in cryogenic applications, featuring a forged stainless steel body for enhanced durability and corrosion resistance. Manufactured to BS 6364 and API 602 standards, it offers a 1-inch size (DN25), Class 2500 LB pressure rating, and full port design for maximum flow capacity. With low leakage performance and an OS&Y (Outside Stem and Yoke) design, this valve ensures reliable sealing and easy operation.
- Model no.: MV-20250409-CGLV-02
- Hits: 0
- Categories: Cryogenic Globe Valve
- Tags: BS 6364 Globe Valve, Cryogenic Globe Valve, ASTM A182 F316 Globe Valve
Detail Information
Product Name: ASTM A182 F316 Cryogenic Globe Valve
Features: Full Port, OS&Y
Design Standard: BS 6364, API 602
Body Material: ASTM A182 F316
Size: 1 Inch, DN25
Pressure: Class 2500 LB, PN420
End: RF Flanged
Operation: Handwheel
Product Range
Size Range: NPS 1/2-6 Inch, DN15-DN150
Pressure Class: Class 150-2500 LB
Operating Temperature: -196°C to 200°C
Structural Features: Bolted Bonnet (BB), Integral Extended Bonnet
Body Material: ASTM A105N, A350 LF2, LF3, A182 F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S, Incoloy 800H, Incoloy 600, Incoloy 625, etc
Standards
Design: API 602, ASME B16.34, BS 6364
Inspection & Testing: API 598, BS 6364
Marking: MSS SP-25
Pressure-Temperature Rating: ASME B16.34
Fugitive Emission Compliance: API 624, ISO 15848
Face-to-Face Dimensions: ASME B16.10
End-to-End Dimensions: Manufacturer Standard or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged Ends: ASME B16.5
Butt Welding Ends: ASME B16.25
Globe Valve, Class 1500 LB, -196°C, ISO 15848-1 Type Test TUV SÜD Certification
