(API 624 Additional High Temperature Version)
Key Specifications / Features

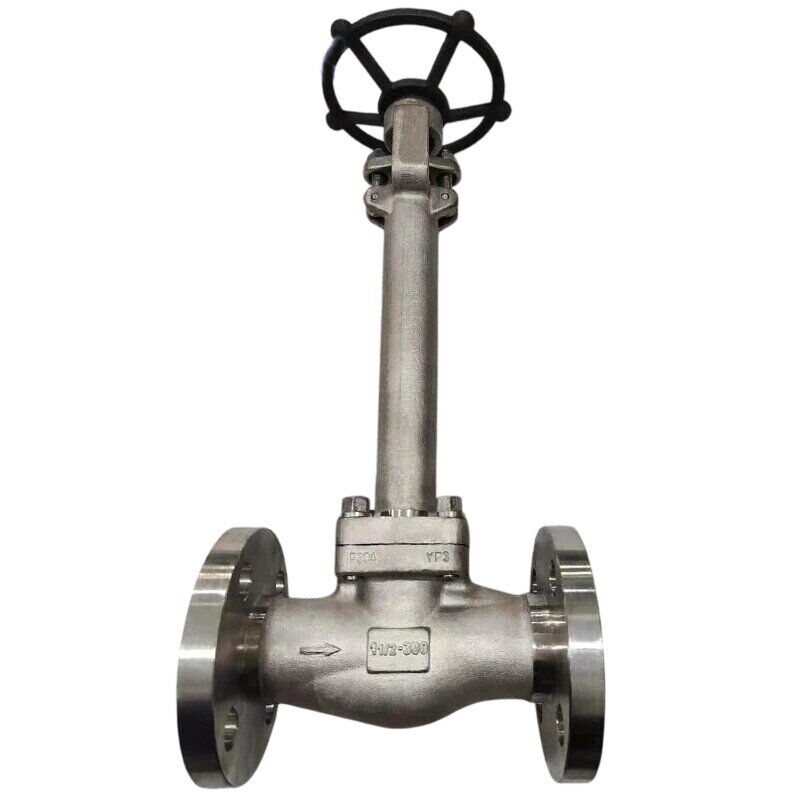

The Low Temperature Globe Valve is specifically designed for cryogenic applications, offering reliable flow control in extreme temperature conditions. Manufactured to API 602 and BS 6364 standards, it features an ASTM A182 F304 stainless steel body for strength and corrosion resistance. With a 1-1/2-inch size (DN40), Class 300 LB pressure rating, and low leakage performance, this valve ensures precise regulation and tight sealing under low-temperature environments.
- Model no.: MV-20250409-CGLV-01
- Hits: 0
- Categories: Cryogenic Globe Valve
- Tags: ASTM A182 F304 Globe Valve, Low Temperature Globe Valve, Cryogenic Globe Valve
Detail Information
Product Name: Low Temperature/Cryogenic Globe Valve, ASTM A182 F304
Design Standard: API 602, BS 6364
Body Material: ASTM A182 F304
Size: 1-1/2 Inch, DN40
Pressure: Class 300 LB, PN50
End: RF Flanged
Operation: Handwheel
Product Range
Size Range: NPS 1/2-6 Inch, DN15-DN150
Pressure Class: Class 150-2500 LB
Operating Temperature: -196°C to 200°C
Structural Features: Bolted Bonnet (BB), Integral Extended Bonnet
Body Material: ASTM A105N, A350 LF2, LF3, A182 F11, F5, F22, F304, F304L, F316, F316L, F321, F304H, F316H, F321H, F51, F53, F55, F91, F92, F347, 310S, Incoloy 800H, Incoloy 600, Incoloy 625, etc
Standards
Design: API 602, ASME B16.34, BS 6364
Inspection & Testing: API 598, BS 6364
Marking: MSS SP-25
Pressure-Temperature Rating: ASME B16.34
Fugitive Emission Compliance: API 624, ISO 15848
Face-to-Face Dimensions: ASME B16.10
End-to-End Dimensions: Manufacturer Standard or ASME B16.10
Socket Welding: ASME B16.11
Screwed Ends: ASME B1.20.1
Flanged Ends: ASME B16.5
Butt Welding Ends: ASME B16.25
Globe Valve, Class 1500 LB, -196°C, ISO 15848-1 Type Test TUV SÜD Certification
